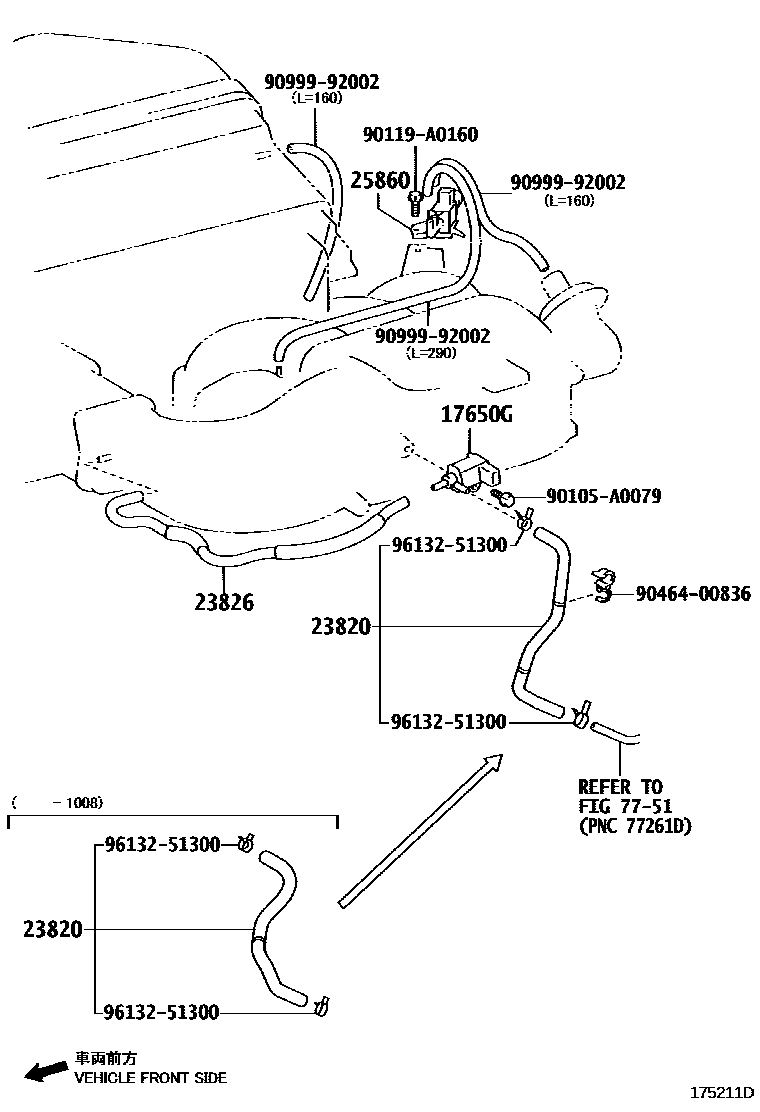

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1FUEL TANK-38 GALLON

17650VALVE ASSY, VACUUM SWITCHING

main25860-0S010i1URFE,3UR#..UPK5#,USK5#201308-201708

main25860-38010i3URFE..USK5#200701-200704

E/G NO.=5XXXXXX,(J)

main25860-50170i2UZFE..UCK5#200611-200904

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i1GRFE..GSK5#201010-201308

main90910-AC001i1GRFE..GSK5#200611-200904

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0F030i2UZFE..UCK5#200611-200904

main23820-0P070i1GRFE..GSK5#200904-201008

main23820-0P190i1GRFE..GSK5#201008-201308

main23820-0S010i3UR#..USK51,52,55,56,57200904-201109

main23820-0S020i1URFE..UPK50;1URFE..UPK51,56..S200904-201308

main23820-0S030i3UR#..USK5#201109-201308

main23820-0S050supersedes 23820-0S060i3URFBE..USK56,57201708-201907

FUEL TANK-38 GALLON

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0P010i1GRFE..GSK5#200904-201010

main23826-31160i1GRFE..GSK51201308-201409

main23826-0S030i3URFBE..USK56,57201708-201907

FUEL TANK-38 GALLON

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0P010i1GRFE..GSK5#200611-200904

main25860-0S020i1URFE,3URFBE..UPK5#,USK56,57201708-201907

(L)

main25860-31060i2UZFE..UCK5#200611-200904

main25860-36020i1GRFE..GSK5#201010-201308

main25860-38050supersedes 25860-31060i3URFE..USK5#201708

FUEL TANK-38 GALLON

7751FUEL TANK & TUBE

→ Go to FIG 77-51

90105A0079

main90105-A0079

90119A0160

main90119-A0160

9046400836

main90464-00836

9099992002

main90999-92002

9613251300

main96132-51300

11 parts on this diagram · 6 diagrams in section
