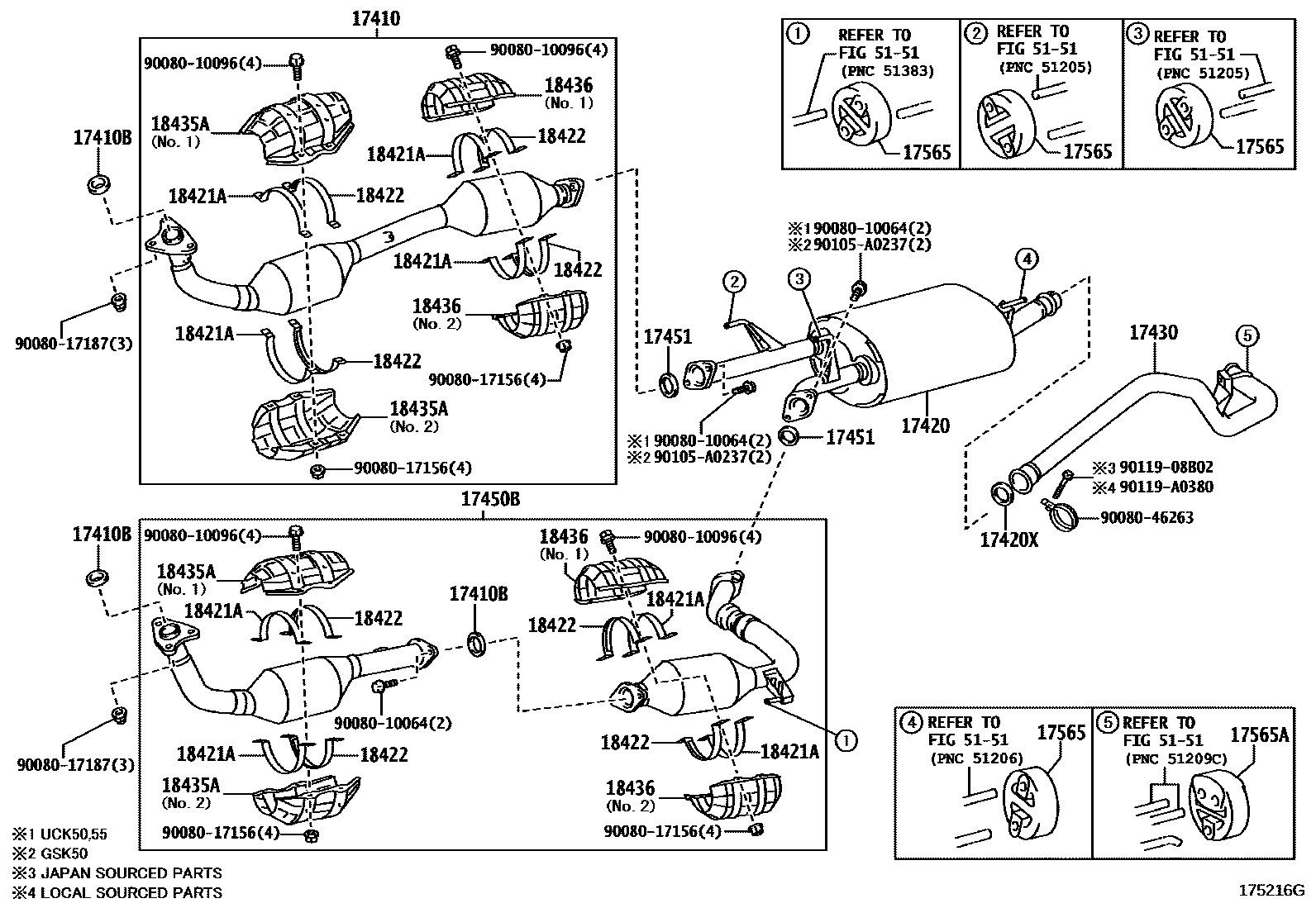

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17450BPIPE ASSY, EXHAUST, FRONT NO.2
17451GASKET, EXHAUST PIPE
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
18421ASTAY, CONVERTER PROTECTOR, LH
18422STAY, CONVERTER PROTECTOR, NO.2
18435APROTECTOR, MONOLITHIC CONVERTER
NO.1
NO.1
NO.2
NO.2
18436PROTECTOR, MONOLITHIC CONVERTER, NO.1
NO.1
NO.1
NO.2
NO.2
5151FRAME
9008010064
main90080-10064
9008010096
main90080-10096
9008017156
main90080-17156
9008017187
main90080-17187
9008046263
main90080-46263
90105A0237
main90105-A0237
9011908B02
main90119-08B02
90119A0380
main90119-A0380
22 parts on this diagram · 5 diagrams in section
