V-BELT

1601WATER PUMP

→ Go to FIG 16-01

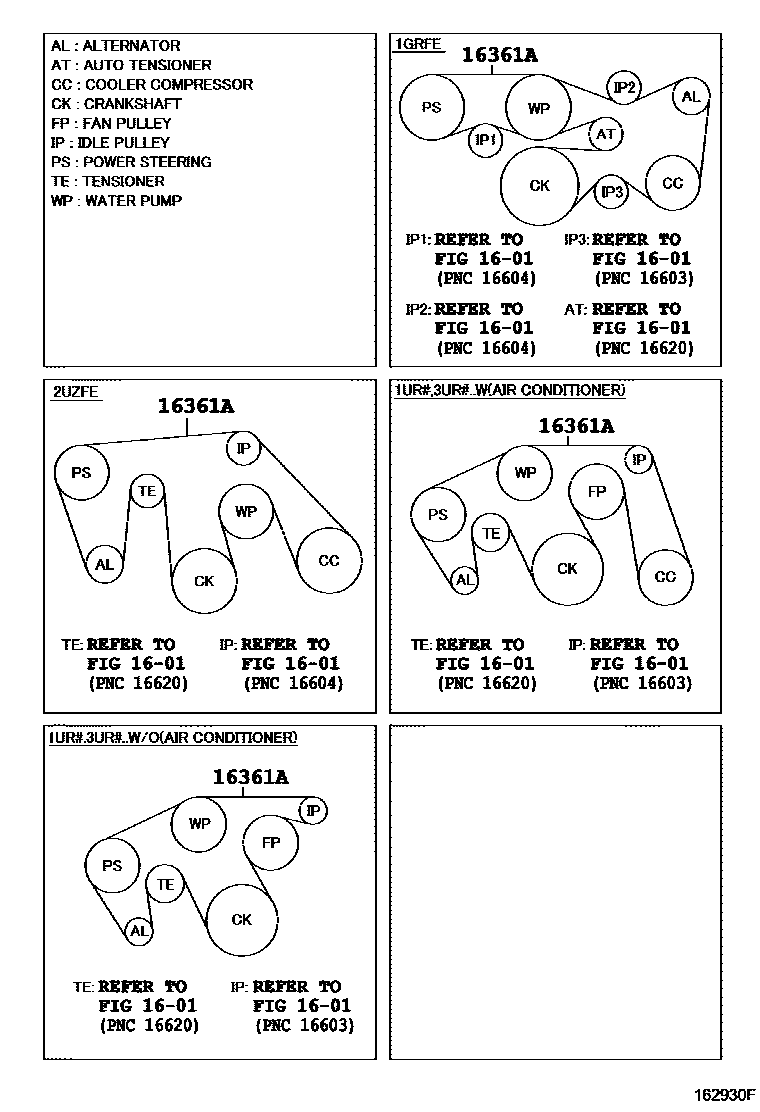

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02464i2UZFE..UCK5#200710-200904

MITSUBOSHI

main90916-02680i1URFE..UPK51,56..S;1URFE,3UR#..UPK50,USK51,52,55,56,57200904-201308

(J)

main90916-02759i1URFE,3UR#..UPK5#,USK5#201707-201708

(J)

main90916-A2001i1GRFE..GSK5#200904-201010

L=2120

main90916-A2013i2UZFE..UCK5#200611-200904

DAYCO

main90916-A2014i3URFE..USK5#200701-200808

main90916-A2015i1GRFE..GSK51201308-201409

L=2150

main90916-A2023i1URFE,3UR#..UPK5#,USK5#201308-201706

(L)

main90916-A2033i1URFE,3UR#..UPK5#,USK5#201707-201708

(L)

main99368-K1860i3UR#..USK56..(DCB,RCB)..SR5;1URFE,3UR#..UPK5#,USK50,51,52,55,57..(DCB,RCB)..SR5200904-201005

AIR CONDITIONER-WITHOUT

2 parts on this diagram · 1 diagram in section
