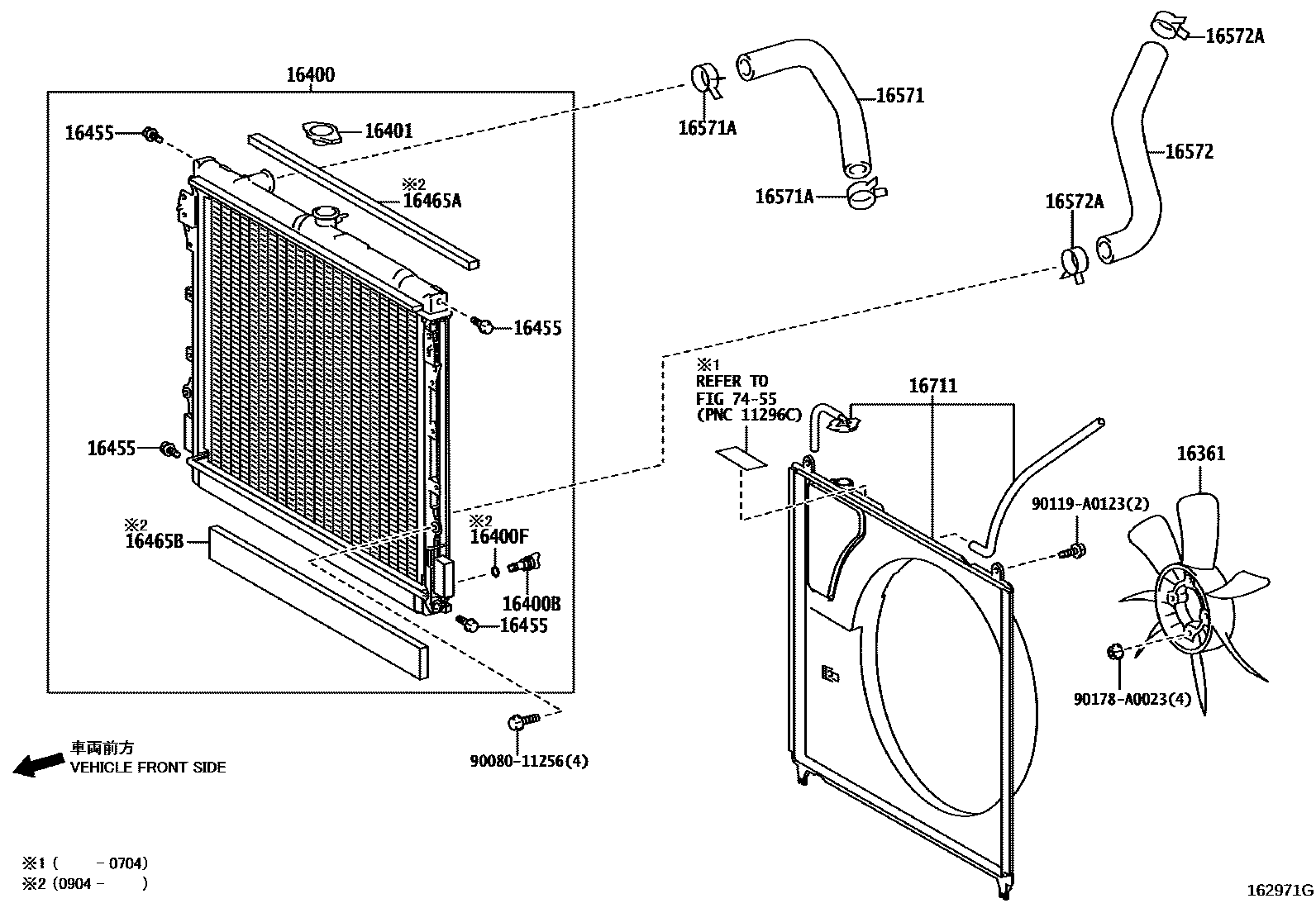

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1W(ENGINE OIL COOLER) 0011 1W(ENGINE OIL COOLER) 0012 1 0013 1 0014 1W(ENGINE OIL COOLER)

16361FAN

main16361-31060i1GRFE..GSK5#200611-201409

main16361-38020i3UR#..USK5#200701-201907

main16361-50110i2UZFE..UCK5#200611-200904

16400RADIATOR ASSY

main16400-0F060i2UZFE..UCK5#200611-200904

main16400-0P170i1GRFE..GSK51200611-201409

main16400-0S010i3UR#..USK5#200701-201308

main16400-0S030i1URFE,3UR#..UPK5#,USK5#201308-201907

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i1GRFE..GSK5#200611-201907

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1URFE..UPK51,56..S;1URFE,3UR#..UPK50,USK51,52,55,56,57200611-201907

16401CAP SUB-ASSY, RADIATOR

main16401-31480i1GRFE..GSK51200904-201610

main16401-36020i1URFE,3UR#..UPK5#,USK5#201611-201907

main16401-62100i1GRFE..GSK5#200611-200904

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main91651-B0820i1GRFE..GSK5#200611-201907

16465PACKING, RADIATOR

main16465-0F060i2UZFE,3UR#..UCK5#,USK5#200611-201907

16465APACKING, RADIATOR, NO.1

main16465-0P170i1GRFE..GSK51200611-201907

16465BPACKING, RADIATOR, NO.2

main16465-0S010i1GRFE..GSK51200611-201409

main16465-0S040i1URFE,3UR#..UPK5#,USK5#201308-201907

16571HOSE, RADIATOR, INLET

main16571-0F040i2UZFE..UCK5#200611-200904

main16571-0P160i1GRFE..GSK5#200611-201409

main16571-0S010i1URFE,3UR#..UPK5#,USK5#200701-201907

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-35001i1GRFE..GSK5#200611-200807

main90466-41005i2UZFE,3URFE..UCK5#,USK5#200611-200807

main90466-A0021i1GRFE..GSK5#201102-201409

main90466-A0024i3URFE..USK5#201708-201907

main90466-A0026i1URFE,3UR#..UPK5#,USK5#201104-201708

main96136-54301i1GRFE..GSK5#200808-201101

main96136-54801i1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L200808-201103

16572HOSE, RADIATOR, OUTLET

main16572-0F020i2UZFE..UCK5#200611-200904

main16572-0P170i1GRFE..GSK5#200611-201409

main16572-0S010i1URFE..UPK51,56..S;1URFE,3UR#..UPK50,USK51,52,55,56,57200701-201311

main16572-0S011i1URFE,3UR#..UPK5#,USK5#201312-201406

main16572-0S012i1URFE,3UR#..UPK5#,USK5#201406-201907

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001i1GRFE..GSK5#200611-200807

main90466-41005i3URFE..USK5#200701-200807

NO.1 & NO.2

main90466-41005i2UZFE..UCK5#200611-200807

main90466-A0021i1GRFE..GSK51201102-201409

main90466-A0024i3URFE..USK5#201708-201907

NO.1

main90466-A0026i1URFE,3UR#..UPK5#,USK5#201104-201708

NO.1 & NO.2

main90466-A0026i1URFE,3URFBE..UPK5#,USK56,57201708-201907

NO.2

main96136-54301i1GRFE..GSK5#200808-201101

main96136-54801i2UZFE..UCK5#200808-201103

NO.1 & NO.2

16711SHROUD, FAN

main16711-0F050i2UZFE..UCK5#200611-200904

main16711-0P100i1GRFE..GSK5#200611-201409

main16711-0S010i1URFE,3UR#..UPK5#,USK5#200701-201405

main16711-0S011i1URFE,3URFBE..UPK5#,USK56,57201406-201907

7455CAUTION PLATE

→ Go to FIG 74-55

9008011256

main90080-11256

90119A0123

main90119-A0123

90178A0023

main90178-A0023

18 parts on this diagram · 14 diagrams in section
