WATER PUMP

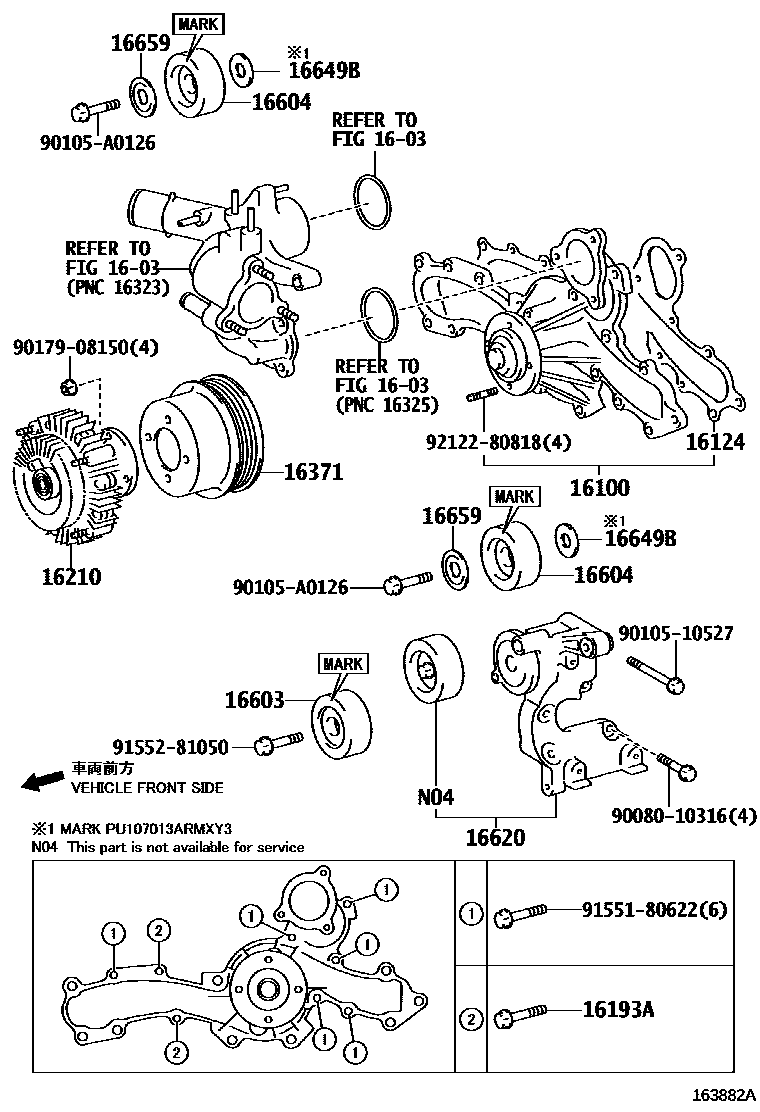

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-09200i200611-200811

main16100-09201i200811-200904

main16100-09470i200611-200901

main16100-09471i200904-201010

main16100-09490i200904-201004

(L)

main16100-09491i201708-201907

(L)

main16100-09525i201708-201907

(L)

main16100-39495i200701-200801

(J)

main16100-39496i201004-201308

(J)

main16100-39545i201010-201308

main16100-39555i201708-201907

(J)

16124GASKET, WATER PUMP COVER

main16124-0P030i200904-201010

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×2i200611-200904

16210COUPLING ASSY, FLUID

main16210-0P010i200611-200904

main16210-31040i201010-201308

main16210-38070i200701-200904

ENGINE NO.=3XXXXXX; ENGINE NO.=5XXXXXX

main16210-38071i201411-201708

main16210-50101i200611-200904

16371PULLEY, FAN

main16371-0F010i200611-200904

main16371-0P010i200904-201010

main16371-31040i201010-201308

main16371-38010i200701-200904

ENGINE NO.=3XXXXXX; ENGINE NO.=5XXXXXX

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0P020i200611-200811

main16603-0P030i200811-200904

main16603-0W010i200611-200904

LITENS

main16603-0W030i200611-200904

DAYCO

main16603-31050i201308-201409

main16603-38010i200701-200904

ENGINE NO.=3XXXXXX; ENGINE NO.=5XXXXXX

main16603-38011i201212-201308

main16603-38012i201902-201907

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-0F010i200611-200904

main16604-0P010×2i200611-200811

main16604-0P011×2i200811-200904

main16604-31020×2i201010-201308

MARK=PU107013ARMXY3

main16604-31030×2i201308-201409

MARK=PU107016RMXY

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0S010i200701-200904

ENGINE NO.=3XXXXXX; ENGINE NO.=5XXXXXX

main16620-0S011i201308-201706

main16620-0S012i201707-201708

main16620-0W101i200611-200904

main16620-31012i200611-200904

main16620-31051i201308-201409

16649BPLATE, IDLER PULLEY COVER

main16649-31020×2i200904-201010

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011×2i201010-201308

MARK=PU107013ARMXY3

main16659-50022i200611-200904

main16659-AD010×2i200611-200904

9008010316

main90080-10316

9010510527

main90105-10527

90105A0126

main90105-A0126

9017908150

main90179-08150

9155180622

main91551-80622

9155281050

main91552-81050

9212280818

main92122-80818

18 parts on this diagram · 6 diagrams in section
