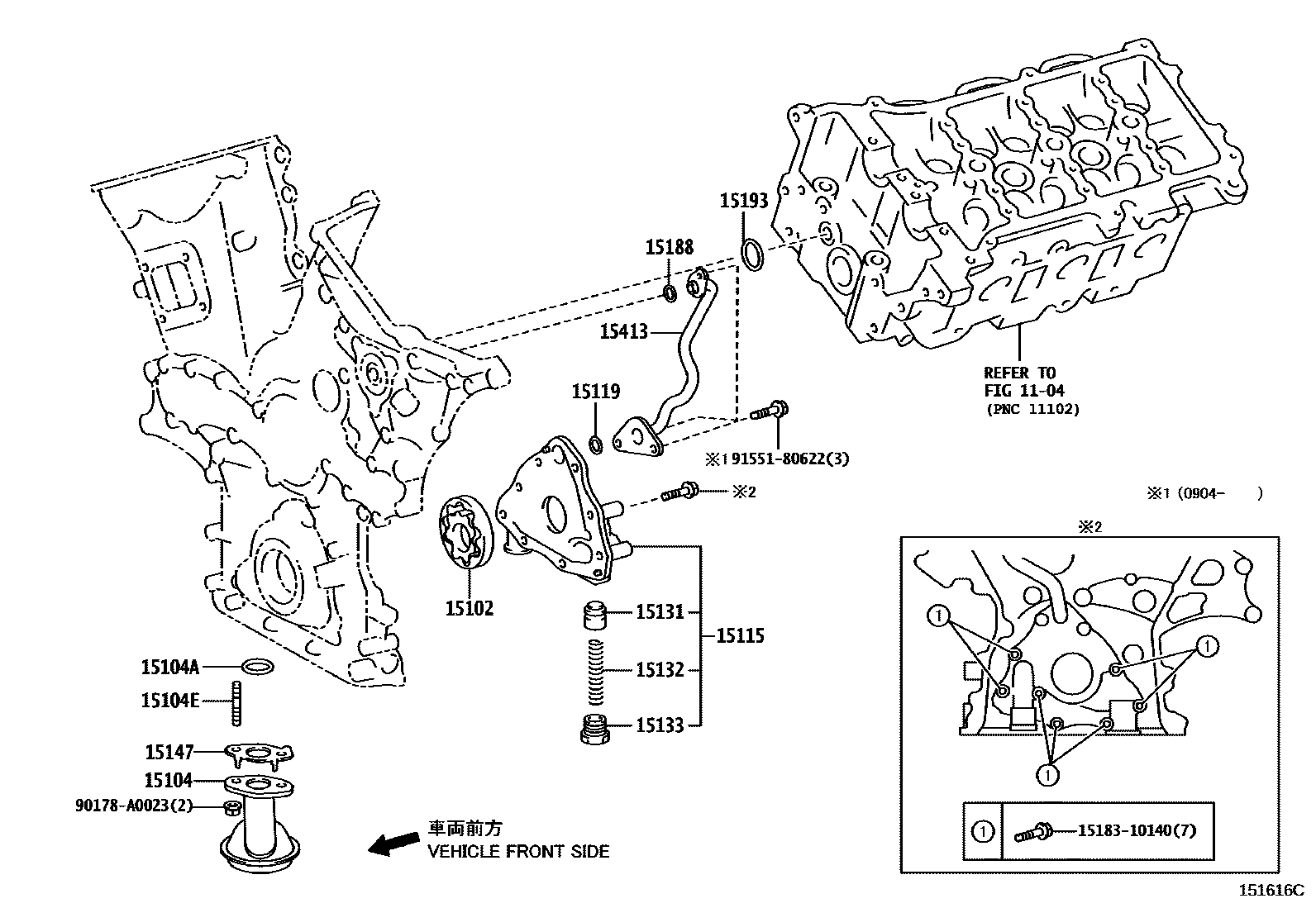

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1104CYLINDER HEAD

→ Go to FIG 11-04

15102ROTOR SET, OIL PUMP

main15103-0P010i1GRFE..GSK5#200611-201010

main15103-0S010i3UR#..USK5#200701-200904

E/G NO.=5XXXXXX,(L)

main15103-0S010i1URFE..UPK51,56..S;1URFE,3UR#..UPK50,USK51,52,55,56,57200904-201907

(L)

main15103-31080i1GRFE..GSK5#201010-201409

main15103-38060i3URFE..USK5#200701-200904

ENGINE NO.=3XXXXXX

main15103-38060i3URFE..USK5#200701-200904

E/G NO.=5XXXXXX,(J)

main15103-38060i1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L200904-201907

(J)

15104STRAINER SUB-ASSY, OIL

main15104-0S010i1URFE,3URFBE..UPK5#,USK56,57200904-201907

main15104-0S010i3URFE..USK5#200701-200904

ENGINE NO.=3XXXXXX

main15104-0S010i3URFE..USK5#200701-200904

ENGINE NO.=5XXXXXX

main15104-31050i1GRFE..GSK5#200611-201006

main15104-31140i1GRFE..GSK51201006-201409

main15104-50230i2UZFE..UCK5#200611-200904

15104ARING, O(FOR OIL STRAINER)

main90301-A0032i3URFE..USK5#200904-201907

(L)

main90301-A0032i3UR#..USK5#200903-200904

E/G NO.=5XXXXXX,(L)

main96721-24031i1URFE,3URFBE..UPK5#,USK56,57200904-201907

(J)

main96721-24031i3UR#..USK5#200701-200903

ENGINE NO.=5XXXXXX

main96721-24031i3UR#..USK5#200903-200904

E/G NO.=5XXXXXX,(J)

main96721-24031i3URFE..USK5#200701-200904

ENGINE NO.=3XXXXXX

main96722-24030i1GRFE..GSK5#200611-201409

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06029i1GRFE..GSK5#200611-201409

15115COVER, OIL PUMP

main15115-0F010i2UZFE..UCK5#200611-200904

main15115-0P010i1GRFE..GSK5#200611-201010

main15115-31080i1GRFE..GSK5#201010-201409

15119GASKET, OIL PUMP COVER

main15119-31050i1GRFE..GSK5#200611-201010

15131VALVE, OIL PUMP RELIEF

main15131-0A040i2UZFE..UCK5#200611-201010

main15131-17010i1GRFE..GSK51201010-201409

main15131-38070i3UR#..USK5#200701-200904

ENGINE NO.=3XXXXXX

main15131-38070i3URFE..USK5#200701-200904

ENGINE NO.=5XXXXXX

main15131-38070i1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L200904-201907

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0A020i1GRFE..GSK5#200611-201010

main15132-0S010i1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L200904-201907

(L)

main15132-0S010i3UR#..USK5#200701-200904

E/G NO.=5XXXXXX,(L)

main15132-38070i1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L200904-201907

(J)

main15132-38070i3UR#..USK5#200701-200904

ENGINE NO.=3XXXXXX

main15132-38070i3UR#..USK5#200701-200904

E/G NO.=5XXXXXX,(J)

main15132-46020i1GRFE..GSK51201010-201409

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2UZFE..UCK5#200611-200904

main15133-28020i1GRFE..GSK51200611-201409

main15133-38070i3UR#..USK5#200701-200904

ENGINE NO.=5XXXXXX

main15133-38070i3URFE..USK5#200701-200904

ENGINE NO.=3XXXXXX

main15133-38070i1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L200904-201907

15147GASKET, OIL STRAINER

main15147-31070i1GRFE..GSK51201006-201409

main15147-50011i2UZFE..UCK5#200611-200904

main15147-AD010i1GRFE..GSK5#200611-201006

15188GASKET, OIL PUMP

main15188-31050i1GRFE..GSK5#200611-201010

15193GASKET, OIL PUMP

main15193-0S010i1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L200904-201907

(L)

main15193-0S010i3UR#..USK5#200903-200904

E/G NO.=5XXXXXX,(L)

main15193-31010i1GRFE..GSK5#200611-201010

main15193-38010i1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L200904-201907

(J)

main15193-38010i3UR#..USK5#200701-200903

ENGINE NO.=5XXXXXX

main15193-38010i3URFE..USK5#200701-200904

ENGINE NO.=3XXXXXX

main15193-38010i3UR#..USK5#200903-200904

E/G NO.=5XXXXXX,(J)

main15193-38010i1GRFE..GSK5#201010-201409

15413PIPE, OIL PUMP OUTLET

main15413-31020i1GRFE..GSK5#200611-201010

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

90178A0023

main90178-A0023

9155180622

main91551-80622

17 parts on this diagram · 4 diagrams in section
