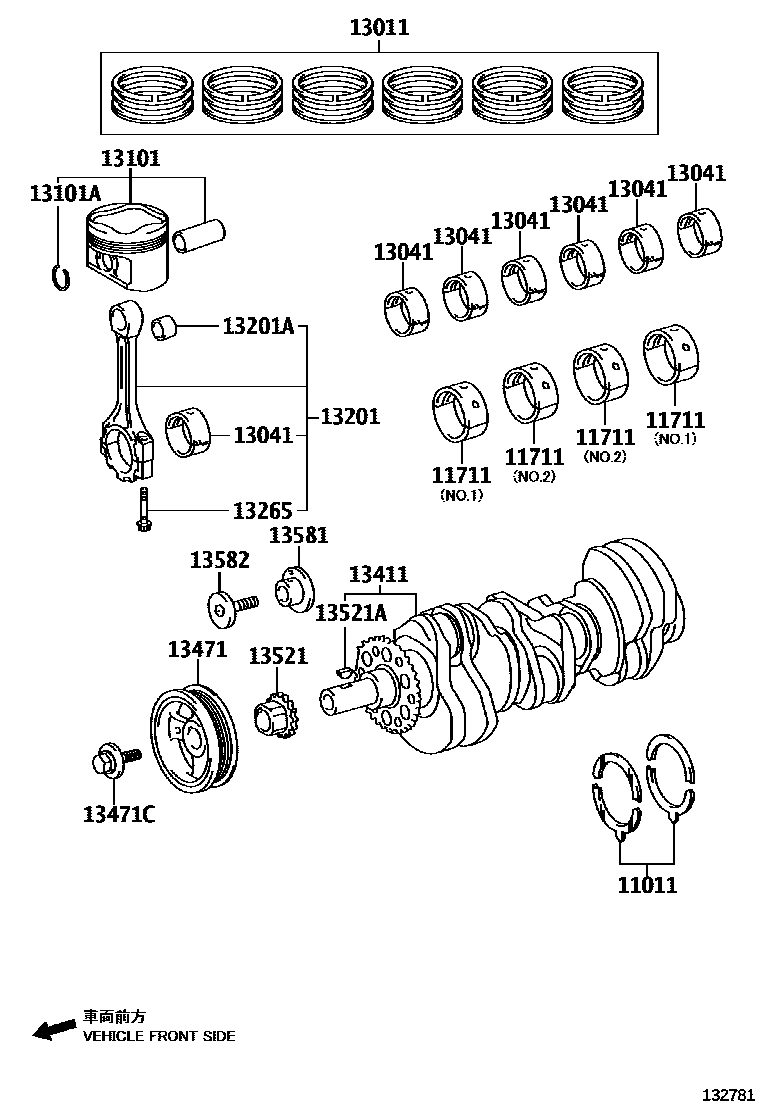

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
STD,(L)
STD
STD
STD,ENGINE NO.=5XXXXXX,ENGINE NO.=3XXXXXX
STD,(J)
O/S 0.125
O/S 0.125
11711BEARING, CRANKSHAFT
MARK1,NO.2,3,4 REFER R/M
MARK2,NO.2,3,4 REFER R/M
MARK3,NO.2,3,4 REFER R/M
MARK4,NO.2,3,4 REFER R/M
MARK5,NO.2,3,4 REFER R/M
MARK1,NO.2,3,4 REFER R/M
MARK2,NO.2,3,4 REFER R/M
MARK3,NO.2,3,4 REFER R/M
MARK4,NO.2,3,4 REFER R/M
MARK5,NO.2,3,4 REFER R/M
MARK1,NO.2,REFER R/M
MARK2,NO.2,REFER R/M
MARK3,NO.2,REFER R/M
MARK4,NO.2,REFER R/M
MARK5,NO.2,REFER R/M
MARK1,NO.2,REFER R/M
MARK2,NO.2,REFER R/M
MARK3,NO.2,REFER R/M
MARK4,NO.2,REFER R/M
MARK5,NO.2,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARKUPPER3LOWER4,NO.2,REFER R/M
MARKUPPER4LOWER4,NO.2,REFER R/M,*163; MARKUPPER4LOWER4,NO.2,REFER R/M,*166
MARKUPPER4LOWER5,NO.2,REFER R/M,*163; MARKUPPER4LOWER5,NO.2,REFER R/M,*166
MARKUPPER5LOWER5,NO.2,REFER R/M,*163; MARKUPPER5LOWER5,NO.2,REFER R/M,*166
MARKUPPER5LOEWR6,NO.2,REFER R/M
MARKUPPER6LOWER6,NO.2,REFER R/M,*163; MARKUPPER6LOWER6,NO.2,REFER R/M,*166
MARKUPPER6LOWER7,NO.2,REFER R/M
MARKUPPER7LOWER7,NO.2,REFER R/M
MARKUPPER7LOWER8,NO.2,REFER R/M,*163; MARKUPPER7LOWER8,NO.2,REFER R/M,*166
MARKUPPER8LOWER8,NO.2,REFER R/M,*163; MARKUPPER8LOWER8,NO.2,REFER R/M,*166
MARKUPPER4LOWER5,NO.1,3 *RRM,*163
MARKUPPER5LOWER5,NO.1,3 *RRM
MARKUPPER5LOWER6,NO.3,REFER R/M,*166
MARKUPPER6LOWER6,NO.1,3 *RRM
MARKUPPER6LOWER7,NO.1,3 *RRM
MARKUPPER7LOWER7,NO.1,3 *RRM,*163
MARKUPPER7LOWER8,NO.1,3 *RRM
MARKUPPER8LOWER8,NO.1,3 *RRM
MARKUPPWE8LOWER9,NO.1,3 *RRM
MARKUPPER9LOWER9,NO.3,REFER R/M,*166
MARK03,NO.1,5 REFER R/M
MARK04,NO.1,5 REFER R/M
MARK05,NO.1,5 REFER R/M
MARK06,NO.1,5 REFER R/M
MARK07,NO.1,5 REFER R/M
MARK3,NO.1,5 REFER R/M
MARK4,NO.1,5 REFER R/M
MARK5,NO.1,5 REFER R/M
MARK6,NO.1,5 REFER R/M
MARK7,NO.1,5 REFER R/M
MARK1,NO.1,REFER R/M
MARK2,NO.1,REFER R/M
MARK3,NO.1,REFER R/M
MARK4,NO.1,REFER R/M
MARK5,NO.1,REFER R/M
MARK1,NO.1,REFER R/M
MARK2,NO.1,REFER R/M
MARK3,NO.1,REFER R/M
MARK4,NO.1,REFER R/M
MARK5,NO.1,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARKUPPER4LOWER5,NO.1,REFER R/M,*166
MARKUPPER5LOWER5,NO.1,REFER R/M,*166
MARKUPPER5LOWER6,NO.1,REFER R/M,*166
MARKUPPER6LOWER6,NO.1,REFER R/M,*166
MARKUPPER6LOWER7,NO.1,REFER R/M,*166
MARKUPPER7LOWER7,NO.1,REFER R/M,*166
MARKUPPER7LOWER8,NO.1,REFER R/M,*166
MARKUPPER8LOWER8,NO.1,REFER R/M,*166
MARKUPPER8LOWER9,NO.1,REFER R/M,*166
MARKUPPER9LOWER9,NO.1,REFER R/M,*166
13011RING SET, PISTON
STD,E/G NO.= FROM5218274
STD
STD
STD
STD,E/G NO.= TO 5218273
O/S 0.50,E/G NO.= FROM5218274
O/S 0.50,E/G NO.= TO 5218273
main13011-0S020i3URFE..USK56,57..DCB; 3URFE..USK56..CMAX..(L,Z); 3URFE..USK56..CMAX;3URFE..USK51..CMAX..S201708
STD,MEXICO SPEC; STD,NEW CALEDONIA SPEC; STD,SOUTH AMERICA SPEC
13041BEARING, CONNECTING ROD
MARK02,REFER REPAIR MANUAL
MARK03,REFER REPAIR MANUAL
MARK04,REFER REPAIR MANUAL
MARK05,REFER REPAIR MANUAL
MARK06,REFER REPAIR MANUAL
MARK07,REFER REPAIR MANUAL
MARK1
MARK2
MARK3
MARK4
MARK1
MARK2
MARK3
MARK4
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK2,REFER R/M,*163,REFER R/M,*166
MARK3,REFER R/M,*163,REFER R/M,*166
MARK4,REFER R/M,*163,REFER R/M,*166
MARK5,REFER R/M,*163,REFER R/M,*166
MARK6,REFER R/M,*163,REFER R/M,*166
MARK7,REFER R/M,*163,REFER R/M,*166
MARK2,REFER R/M,*163; MARK2,REFER R/M,*166
MARK3,REFER R/M,*163; MARK3,REFER R/M,*166
MARK4,REFER R/M,*163; MARK4,REFER R/M,*166
MARK5,REFER R/M,*163; MARK5,REFER R/M,*166
MARK6,REFER R/M,*163; MARK6,REFER R/M,*166
MARK7,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK6,REFER REPAIR MANUAL
MARK7,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK1,E/G NO.= FROM5218274
STD,MARK2,E/G NO.= FROM5218274
STD,MARK3,E/G NO.= FROM5218274
STD,MARK1,E/G NO.= TO 5218273
STD,MARK2,E/G NO.= TO 5218273
STD,MARK3,E/G NO.= TO 5218273
STD
STD,ENGINE NO.=5XXXXXX,ENGINE NO.=3XXXXXX
STD,ENGINE NO.=3XXXXXX; STD,ENGINE NO.=5XXXXXX
STD
STD
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD,MARK1,E/G NO.= TO 5218273
STD,MARK2,E/G NO.= TO 5218273
STD,MARK3,E/G NO.= TO 5218273
STD,MARK1,E/G NO.= TO 5218273
STD,MARK2,E/G NO.= TO 5218273
STD,MARK3,E/G NO.= TO 5218273
O/S 0.50,E/G NO.= FROM5218274
O/S 0.50,E/G NO.= TO 5218273
O/S 0.50
O/S 0.50,E/G NO.= TO 5218273
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
(L)
(L)
E/G NO.=5XXXXXX,(J); ENGINE NO.=3XXXXXX
(J)
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
(J)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
ENGINE NO.=3XXXXXX; ENGINE NO.=5XXXXXX
13411CRANKSHAFT
(L)
(L)
E/G NO.=5XXXXXX,(J); ENGINE NO.=3XXXXXX
(J)
(L)
(J)
13471PULLEY, CRANKSHAFT
ENGINE NO.=3XXXXXX; ENGINE NO.=5XXXXXX
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
ENGINE NO.=3XXXXXX; ENGINE NO.=5XXXXXX
(L)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
ENGINE NO.=3XXXXXX
ENGINE NO.=3XXXXXX
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
ENGINE NO.=3XXXXXX; ENGINE NO.=5XXXXXX
13581SHAFT, IDLE GEAR, NO.1
13582SHAFT, IDLE GEAR, NO.2
16 parts on this diagram · 3 diagrams in section
