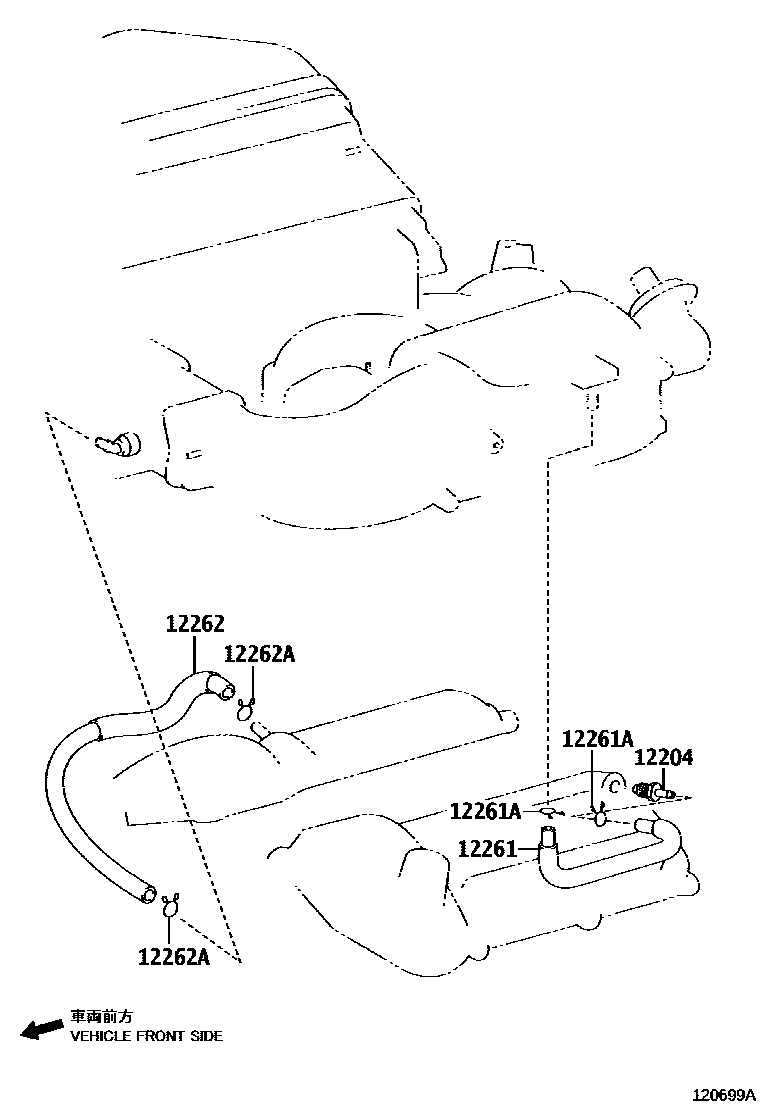

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
MARK 38010,*163
12261HOSE, VENTILATION
NO.2
ENGINE NO.=3XXXXXX
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.2
*163,NO.1 & NO.2
NO.2
E/G NO.=5XXXXXX,NO.1
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
5 parts on this diagram · 8 diagrams in section
