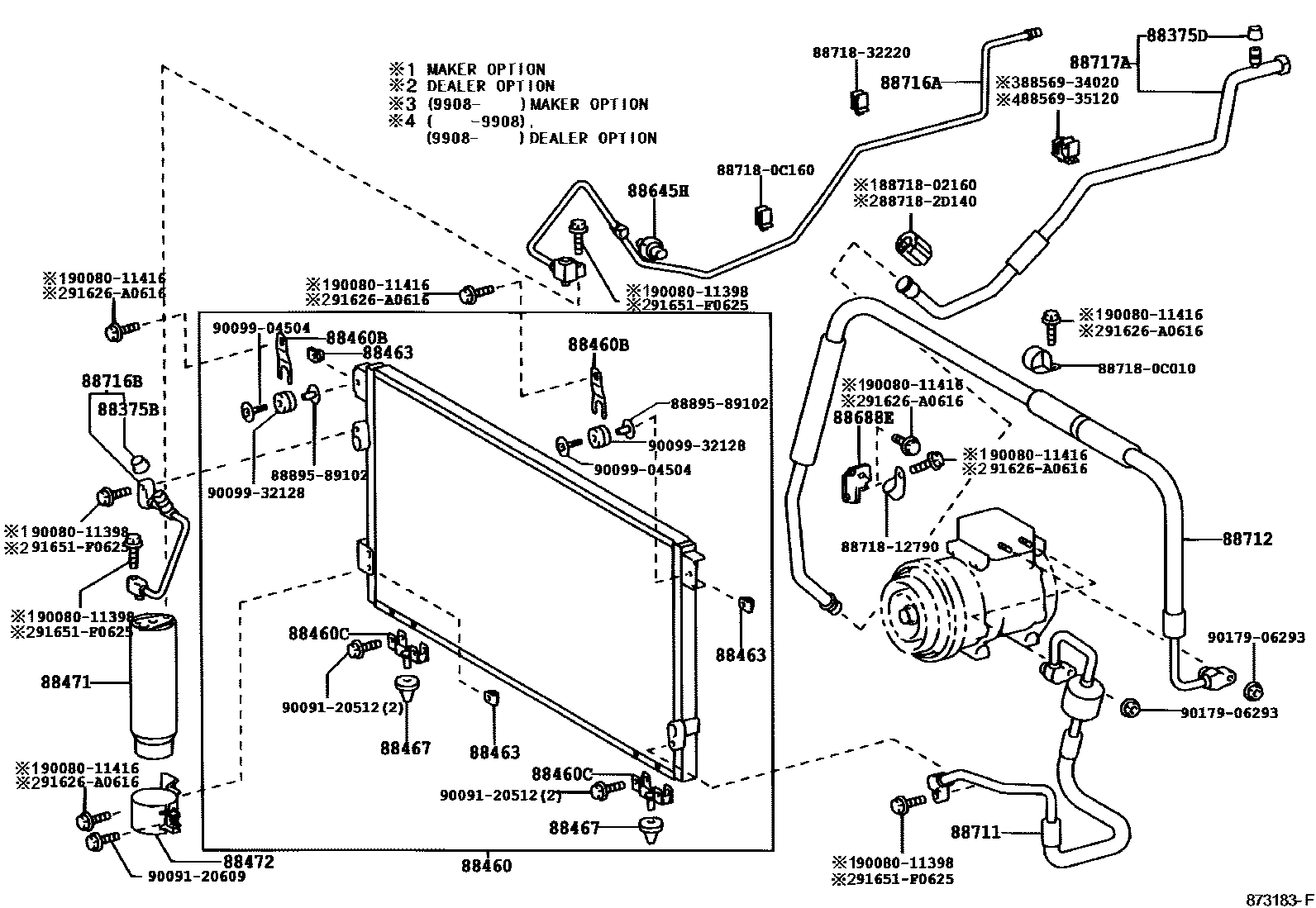

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1O-RING

88375BCAP, SERVICE VALVE, NO.1

main88375-02020iUCK30,40,VCK30,40199902-200208

main88375-30280iVCK30,40200208-200408

main88375-30290iUCK30,40200208-200408

88375DCAP, SERVICE VALVE, NO.2

main88375-02050iUCK30,40199902-200208

88460CONDENSER ASSY, COOLER

main88460-0C010iUCK30,40,VCK30,40199902-200208

main88460-0C020iUCK30,40,VCK30,40..4HC..(DLX,SR5)199902-200208

DEALER OPTION

main88460-0C050iUCK30,40,VCK30,40200208-200408

main88460-0C060iUCK30,40,VCK30,40..DLX,SR5200208-200309

DEALER OPTION

main88460-0C090iUCK31,41200408

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-0C010×2iUCK30,40,VCK30,40200208-200408

main88688-0C140×2iUCK31,41200310-200408

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-0C020×2iUCK30,40,VCK30,40200208-200408

88463BRACKET, COOLER CONDENSER, NO.1

main88463-35120×3iUCK30,40,VCK30,40199902-200208

88467CUSHION, COOLER CONDENSER, NO.1

main88467-32060×2iUCK30,40,VCK30,40199902-200208

main88467-33030×2iUCK31,41200408

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iUCK30,40,VCK30,40199902-200208

main88471-34010iUCK30,40,VCK30,40200208-200408

88472BRACKET, RECEIVER TANK, NO.1

main88472-0C010iUCK30,40,VCK30,40199902-200208

88645HSWITCH, PRESSURE NO.1

main88645-04040iUCK31,41200408

main88645-34010iGSK30,UCK30,40200408

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-0C030iUCK30,40199902-200208

main88688-0C210iGSK30,UCK3#,4#200408

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0C010iVCK30,40199902-200208

main88711-0C030iUCK30,40199902-200208

main88711-0C060iUCK30,40200208-200408

main88711-0C080iUCK31,41200408

main88711-0C090iGSK30200408

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0C010iVCK30,40200208-200408

main88712-0C021iUCK30,40199902-200208

main88712-0C022iUCK3#,4#200410

main88712-0C060iGSK30200408

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-0C010iUCK30,40,VCK30,40199902-199908

main88716-0C012iUCK30,40,VCK30,40199908-200208

MAKER OPTION

main88716-0C150iUCK30,40,VCK30,40200208-200408

main88716-0C200iUCK31,41200310-200408

main88716-0C210iGSK30,UCK30,40200408

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-0C020iVCK30,40199902-200208

main88716-0C030iUCK30,40199902-200208

main88716-0C130iVCK30,40200208-200408

main88716-0C140iGSK30,UCK30,40200408

main88716-0C170iUCK31,41200408

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-0C010iUCK30,40199902-200208

main88717-0C020iUCK31,41200408

main88717-0C080iUCK30,40200208-200408

8856934020CLAMP (FOR COOLER RELAY)

main88569-34020

8856935120CLAMP (FOR COOLER RELAY)

main88569-35120

8871802160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02160

887180C010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0C010

887180C160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0C160

8871812790PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12790

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

8889589102HOLDER, FUSE

main88895-89102

9008011398

main90080-11398

9008011416

main90080-11416

9009120512

main90091-20512

9009120609

main90091-20609

9009904504

main90099-04504

9009932128

main90099-32128

9017906293

main90179-06293

91626A0616

main91626-A0616

91651F0625

main91651-F0625

34 parts on this diagram · 9 diagrams in section
