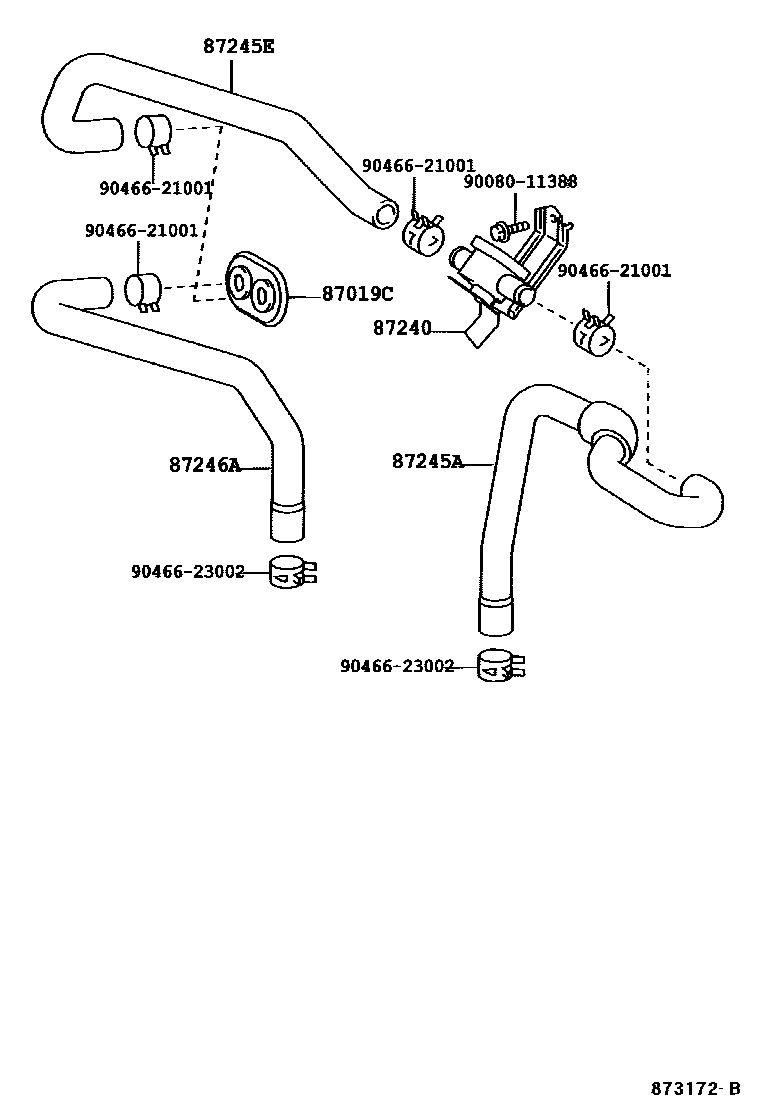

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87019CGROMMET, HEATER HOSE

main90080-48068iUCK30,40,VCK30,40200111-200208

main90480-01405iUCK30,40,VCK30,40199902-200111

87240VALVE ASSY, HEATER WATER

main87240-0C010iUCK30,40,VCK30,40199902-200208

main87240-0C011iGSK30,UCK3#,4#200408

87245AHOSE, HEATER WATER, INLET A

main87245-0C020iVCK30,40199902-200208

main87245-0C040iUCK3#,4#200408

main87245-0C140iGSK30200408

87245EHOSE, HEATER WATER, INLET E

main87245-0C010iUCK30,40,VCK30,40199902-200208

87246AHOSE, HEATER WATER, OUTLET A

main87245-0C030iVCK30,40200208-200408

main87245-0C050iUCK30,40199902-200208

main87245-0C150iGSK30200408

main87245-0C160iUCK3#,4#200408

9008011388

main90080-11388

9046621001

main90466-21001

9046623002

main90466-23002

8 parts on this diagram · 3 diagrams in section
