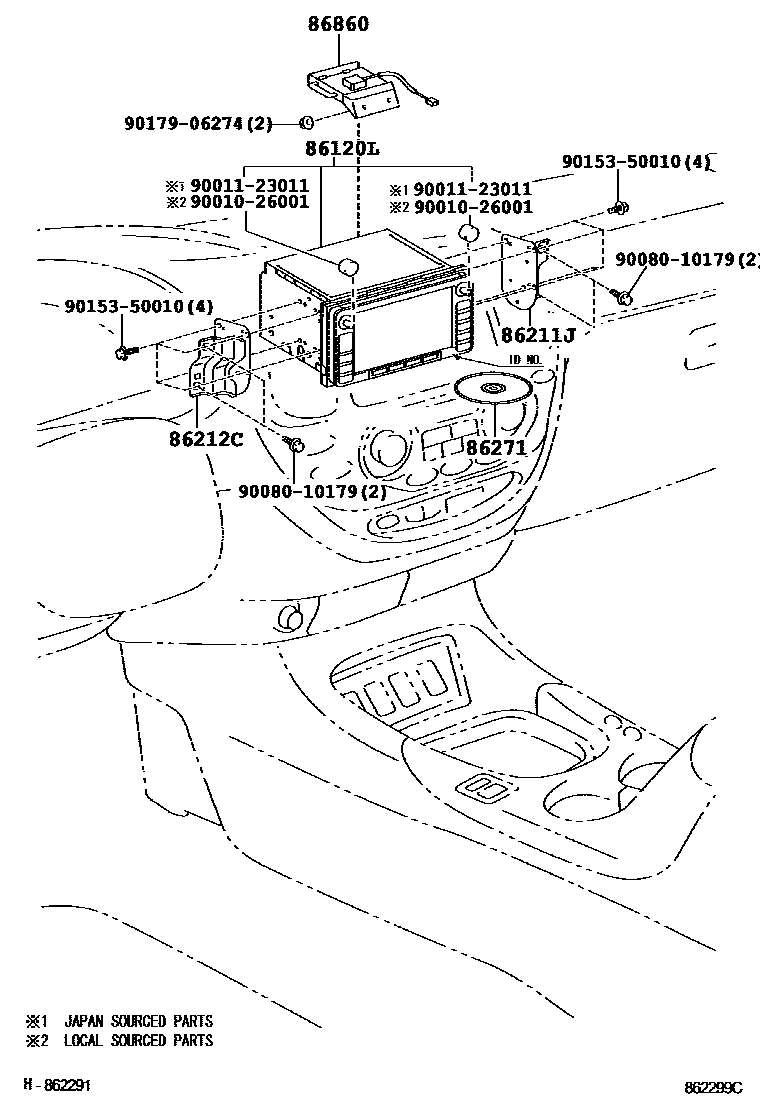

NAVIGATION & FRONT MONITOR DISPLAY

86120LRECEIVER ASSY, NAVIGATION

main86120-0C160iUCK31,41200502

DENSO,ID=E7006,(L)

main86120-0C170iGSK30,UCK30,40..ACB200504

DENSO ID=E7004,(L)

main86120-34020iGSK30,UCK30,40..ACB200510-200605

DENSO ID=E7004,(J)

main86120-34030iUCK31,41200410-200510

DENSO,ID=E7006,(J)

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-0C020iGSK30,UCK3#,4#..LIMD,SR5200408

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-0C020iGSK30,UCK3#,4#..LIMD,SR5200408

86271DISC, DISC PLAYER

main86271-33043iGSK30,UCK30,40..ACB200408-200409

main86271-33044iGSK30,UCK30,40..ACB; UCK31,41200410-200509

main86271-33045iGSK30,UCK30,40..ACB; UCK31,41200510-200604

main86271-33046iGSK30,UCK3#,4#..LIMD,SR5200605

86860ANTENNA ASSY, NAVIGATION

main86860-34010iGSK30,UCK3#,4#..LIMD,SR5200408

9001026001

main90010-26001

9001123011

main90011-23011

9008010179

main90080-10179

9015350010

main90153-50010

9017906274

main90179-06274

10 parts on this diagram · 1 diagram in section
