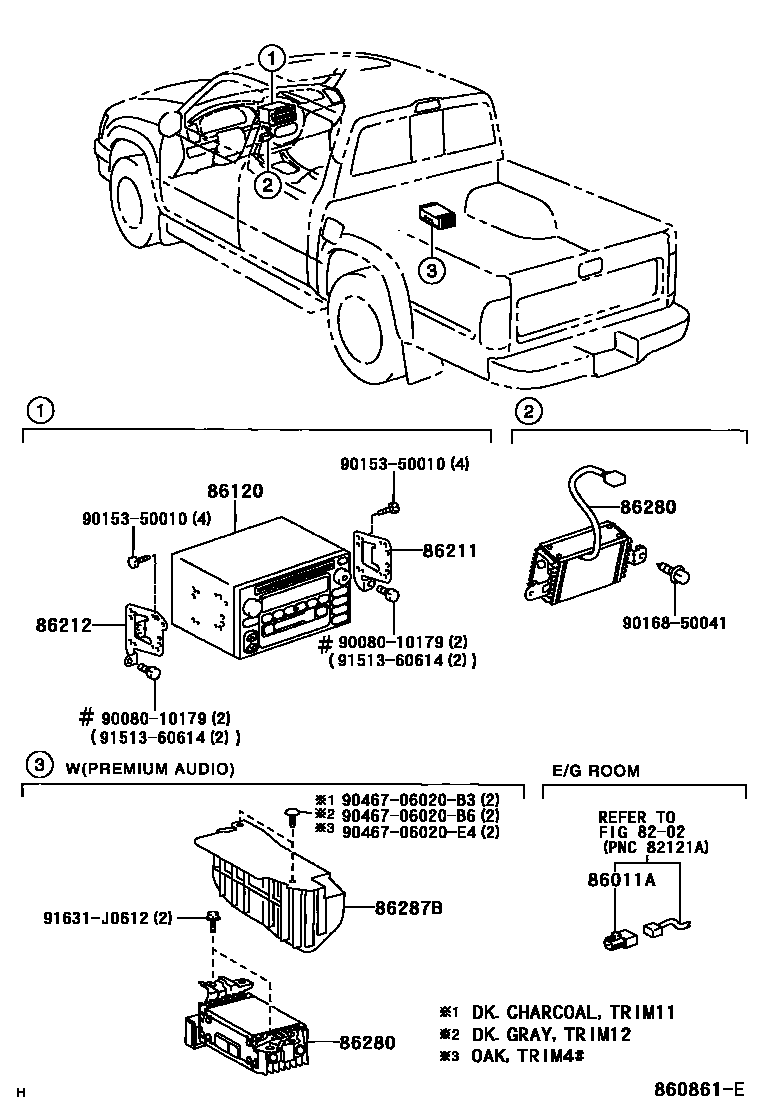

RADIO RECEIVER & AMPLIFIER & CONDENSER
8202WIRING & CLAMP
86011ACONDENSER, RADIO SETTING
86120RECEIVER ASSY, RADIO
MATSUSHITA,ID=A56410,TYPE A:REFER TO ILLUSTRATION
main86120-0C020iUCK40..SR5..CND;UCK40,VCK40..RCB..USA; VCK40..ACB..SR5;UCK40..ACB..SR5..USA;UCK30,VCK30..4HC..SR5199902-200208
FUJITSU TEN USA,TYPE B:REFER TO ILLUSTRATION & W(2 SPEAKER 2 TWEETERS); FUJITSU TEN USA,TYPE B:REFER TO ILLUSTRATION & W(4 SPEAKER)
FUJITSU TEN USA,TYPE B:REFER TO ILLUSTRATION
MATSUSHITA,ID=56811,TYPE C:REFER TO ILLUSTRATION
MATSUSHITA,ID=A51407,TYPE D:REFER TO ILLUSTRATION
FUJITSU TEN,ID=16859
FUJITSU TEN,ID=16832,TYPE E:REFER TO ILLUSTRATION
FUJITSU TEN,ID=16854,TYPE E:REFER TO ILLUSTRATION
FUJITSU TEN,ID=16836,TYPE E:REFER TO ILLUSTRATION
FUJITSU TEN,ID=16855,TYPE E:REFER TO ILLUSTRATION
MATSUSHITA,ID=A56826,TYPE F:REFER TO ILLUSTRATION
MATSUSHITA,ID=A56834,TYPE F:REFER TO ILLUSTRATION
MATSUSHITA,ID=A51804
FUJITSU TEN,ID=16848
PANASONIC,ID=A56830,TYPE F:REFER TO ILLUSTRATION
PANASONIC,ID=A56839
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86280AMPLIFIER ASSY, STEREO COMPONENT
W(LEATHER SEAT)
W(FABRIC SEAT)
W(FABRIC SEAT)
W(LEATHER SEAT)
W(PREMIUM AUDIO)
86287BCOVER, AMPLIFIER
9008010179
main90080-10179
9015350010
main90153-50010
9016850041
main90168-50041
9046706020B3
main90467-06020B3
9046706020B6
main90467-06020B6
9046706020E4
main90467-06020E4
9151360614
main91513-60614
91631J0612
main91631-J0612
15 parts on this diagram · 3 diagrams in section
