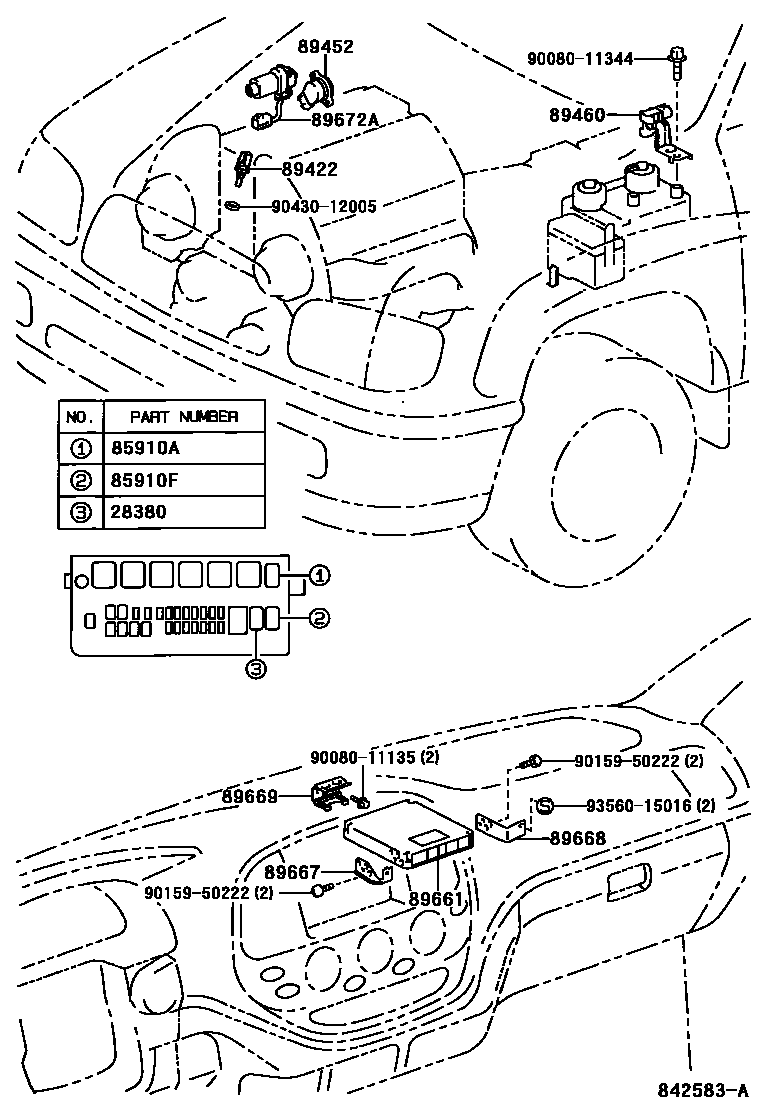

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

28380RELAY ASSY, FUEL PUMP

main90084-98032i2UZFE..UCK30,40199902-200208

PART NUMBER LABEL=90084-98032

main90987-04004i2UZFE..UCK3#,4#200208-200408

PART NUMBER LABEL=90987-04004

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87026iGSK30,UCK3#,4#200408

main90084-98031iUCK3#,4#,VCK30,40200208-200408

PART NUMBER LABEL=90084-98031

main90987-02012iUCK30,40,VCK30,40199902-200208

PART NUMBER LABEL=90987-02012

85910FRELAY, COMPUTER (FOR EFI)

main90080-87026iGSK30,UCK3#,4#200408

main90084-98031iUCK30,40,VCK30,40199902-200208

PART NUMBER LABEL=90084-98031

main90987-02012iUCK30,40,VCK30,40199902-200208

PART NUMBER LABEL=90987-02012

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-06010iUCK3#,4#200408

main89422-20010iUCK30,40199902-200008

main89422-30030iUCK3#,4#200208-200408

main89422-33030iGSK30200408

main89422-35010iVCK30,40200208-200408

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30140iUCK30,40199902-200208

main89452-35020iVCK30,40199902-200208

89460SENSOR ASSY, VAPOR PRESSURE

main89460-0C010iUCK30,40,VCK30,40199902-200208

main89461-0C010iUCK3#,4#,VCK30,40200208-200408

89661COMPUTER, ENGINE CONTROL

main89661-0C010iVCK30..5F199902-200006

main89661-0C011iVCK30..5F200006-200008

main89661-0C020iVCK30..4HC199902-199908

main89661-0C021iVCK30..4HC199908-200003

main89661-0C022iVCK30..4HC200003-200008

main89661-0C030iVCK40..5F199902-200006

main89661-0C031iVCK40..5F200006-200008

main89661-0C040iVCK40..4HC199902-199908

main89661-0C041iVCK40..4HC199908-200004

main89661-0C042iVCK40..4HC200004-200008

main89661-0C050iVCK30..5F..USA199902-200008

CALIFORNIA SPEC

main89661-0C060iVCK30..4HC..USA199902-200008

CALIFORNIA SPEC

main89661-0C070iVCK40..5F..USA199902-200008

CALIFORNIA SPEC

main89661-0C080iVCK40..4HC..USA199902-200008

CALIFORNIA SPEC

main89661-0C090iUCK30..USA199902-199904

CALIFORNIA SPEC

main89661-0C100iUCK40..USA199902-199904

CALIFORNIA SPEC

main89661-0C110iUCK30199902-199904

main89661-0C120iUCK40199902-199904

main89661-0C130iUCK30..USA199904-199908

CALIFORNIA SPEC

main89661-0C131iUCK30..USA199908-200008

CALIFORNIA SPEC

main89661-0C140iUCK40..USA199904-199908

CALIFORNIA SPEC

main89661-0C141iUCK40..USA199908-200008

CALIFORNIA SPEC

main89661-0C150iUCK30199904-199908

main89661-0C151iUCK30199908-200008

main89661-0C160iUCK40199904-199908

main89661-0C161iUCK40199908-200008

main89661-0C210iUCK30..USA200008-200108

CALIFORNIA SPEC

main89661-0C220iUCK40..USA200008-200108

CALIFORNIA SPEC

main89661-0C230iUCK30200008-200108

main89661-0C240iUCK40200008-200108

main89661-0C250iVCK30..5F200208-200210

main89661-0C251iVCK30..5F200210-200212

main89661-0C252iVCK30..5F200212-200309

PART NUMBER LABEL=89661-0C252

main89661-0C260iVCK30..4HC200208-200210

main89661-0C261iVCK30..4HC200210-200212

main89661-0C262iVCK30..4HC200212-200309

PART NUMBER LABEL=89661-0C262

main89661-0C270iVCK40..5F200208-200210

main89661-0C271iVCK40..5F200210-200212

main89661-0C272iVCK40..5F200212-200309

PART NUMBER LABEL=89661-0C272

main89661-0C280iVCK40..4HC200208-200210

main89661-0C281iVCK40..4HC200210-200212

main89661-0C282iVCK40..4HC200212-200309

PART NUMBER LABEL=89661-0C282

main89661-0C290iVCK30..5F200008-200011

main89661-0C291iVCK30..5F200011-200108

main89661-0C300iVCK30..4HC200008-200011

main89661-0C301iVCK30..4HC200011-200108

main89661-0C310iVCK40..5F200008-200011

main89661-0C311iVCK40..5F200011-200108

main89661-0C320iVCK40..4HC200008-200011

main89661-0C321iVCK40..4HC200011-200108

main89661-0C330iUCK30..USA200108-200110

CALIFORNIA SPEC

main89661-0C331iUCK30..USA200110-200208

CALIFORNIA SPEC

main89661-0C340iUCK40..USA200108-200110

CALIFORNIA SPEC

main89661-0C341iUCK40..USA200110-200208

CALIFORNIA SPEC

main89661-0C350iUCK30200108-200110

main89661-0C351iUCK30200110-200208

main89661-0C360iUCK40200108-200110

main89661-0C361iUCK40200110-200208

main89661-0C370iVCK40..4HC200108-200111

main89661-0C371iVCK40..4HC200111-200208

main89661-0C380iUCK31200310-200408

main89661-0C390iUCK41200310-200408

main89661-0C400iVCK30..5F200309-200408

PART NUMBER LABEL=89661-0C400

main89661-0C430iUCK30200208-200210

main89661-0C432iUCK30200210-200309

PART NUMBER LABEL=89661-0C432

main89661-0C440iUCK40200208-200210

main89661-0C442iUCK40200210-200309

PART NUMBER LABEL=89661-0C442

main89661-0C450iVCK30..5F200108-200111

main89661-0C451iVCK30..5F200111-200208

main89661-0C460iVCK30..4HC200108-200111

main89661-0C461iVCK30..4HC200111-200208

main89661-0C470iVCK40..5F200108-200111

main89661-0C471iVCK40..5F200111-200208

main89661-0C500iVCK30..4HC200309-200408

PART NUMBER LABEL=89661-0C500

main89661-0C510iVCK40..5F200309-200408

PART NUMBER LABEL=89661-0C510

main89661-0C520iVCK40..4HC200309-200408

PART NUMBER LABEL=89661-0C520

main89661-0C530iUCK30200309-200408

PART NUMBER LABEL=89661-0C530

main89661-0C540iUCK40200309-200408

PART NUMBER LABEL=89661-0C540

main89661-0C600iGSK30..5HC200408-200412

main89661-0C601iGSK30..5HC200412-200508

main89661-0C610iGSK30..6F200408-200412

main89661-0C611iGSK30..6F200412-200508

main89661-0C640iUCK3#200408-200501

main89661-0C641iUCK3#200502-200503

main89661-0C642iUCK3#200503-200508

main89661-0C660iUCK4#200408-200501

main89661-0C661iUCK4#200502-200503

main89661-0C662iUCK4#200503-200508

main89661-0C700iGSK30..5HC200508

main89661-0C710iGSK30..6F200508

main89661-0C720iUCK3#200508-200510

main89661-0C721iUCK3#200511

main89661-0C730iUCK4#200508-200510

main89661-0C731iUCK4#200511

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0C010iUCK3#,4#200408-200510

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0C010iUCK30,40,VCK30,40199902-200008

main89668-0C020iUCK30,40200008-200208

main89668-0C030iVCK30,40200008-200208

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-34030iUCK30,40,VCK30,40199902-200008

main89669-34040iUCK30,40,VCK30,40200008-200205

main89669-34041iUCK30,40,VCK30,40200205-200208

89672AMOTOR, THROTTLE CONTROL

main89672-47010iUCK30,40199902-200208

9008011135

main90080-11135

9008011344

main90080-11344

9015950222

main90159-50222

9043012005

main90430-12005

9356015016

main93560-15016

16 parts on this diagram · 4 diagrams in section
