82111WIRE, ENGINE ROOM MAIN

main82111-0C010i199902-200008

PART NUMBER LABEL=82111-0C010

main82111-0C011i200008-200103

PART NUMBER LABEL=82111-0C011

main82111-0C012i200103-200208

PART NUMBER LABEL=82111-0C012

main82111-0C030i199902-200008

PART NUMBER LABEL=82111-0C030

main82111-0C031i200008-200103

PART NUMBER LABEL=82111-0C031

main82111-0C032i200103-200208

PART NUMBER LABEL=82111-0C032

main82111-0C050i199902-200008

PART NUMBER LABEL=82111-0C050

main82111-0C051i200008-200103

PART NUMBER LABEL=82111-0C051

main82111-0C052i200103-200208

PART NUMBER LABEL=82111-0C052

main82111-0C060i199902-200008

PART NUMBER LABEL=82111-0C060

main82111-0C061i200008-200103

PART NUMBER LABEL=82111-0C061

main82111-0C062i200103-200208

PART NUMBER LABEL=82111-0C062

main82111-0C070i199902-200008

PART NUMBER LABEL=82111-0C070

main82111-0C071i200008-200103

PART NUMBER LABEL=82111-0C071

main82111-0C072i200103-200208

PART NUMBER LABEL=82111-0C072

main82111-0C080i199902-200008

PART NUMBER LABEL=82111-0C080

main82111-0C081i200008-200103

PART NUMBER LABEL=82111-0C081

main82111-0C082i200103-200208

PART NUMBER LABEL=82111-0C082

main82111-0C140i200208-200304

PART NUMBER LABEL=82111-0C140

main82111-0C141i200309-200408

PART NUMBER LABEL=82111-0C141

main82111-0C150i200208-200304

PART NUMBER LABEL=82111-0C150

main82111-0C151i200309-200408

PART NUMBER LABEL=82111-0C151

main82111-0C161i200309-200408

PART NUMBER LABEL=82111-0C161

main82111-0C170i200208-200304

PART NUMBER LABEL=82111-0C170

main82111-0C171i200309-200408

PART NUMBER LABEL=82111-0C171

main82111-0C180i200208-200304

PART NUMBER LABEL=82111-0C180

main82111-0C181i200309-200408

PART NUMBER LABEL=82111-0C181

main82111-0C191i200309-200408

PART NUMBER LABEL=82111-0C191

main82111-0C200i200208-200304

PART NUMBER LABEL=82111-0C200

main82111-0C201i200309-200408

PART NUMBER LABEL=82111-0C201

main82111-0C210i200208-200304

PART NUMBER LABEL=82111-0C210

main82111-0C211i200309-200408

PART NUMBER LABEL=82111-0C211

main82111-0C221i200309-200408

PART NUMBER LABEL=82111-0C221

main82111-0C230i200310-200408

PART NUMBER LABEL=82111-0C230

main82111-0C240i200310-200408

PART NUMBER LABEL=82111-0C240

main82111-0C250i200310-200408

PART NUMBER LABEL=82111-0C250

main82111-0C260i200310-200408

PART NUMBER LABEL=82111-0C260

main82111-0C280i200408-200508

PART NUMBER LABEL=82111-0C280

main82111-0C281i200508

PART NUMBER LABEL=82111-0C281

main82111-0C290i200408-200508

PART NUMBER LABEL=82111-0C290

main82111-0C291i200508

PART NUMBER LABEL=82111-0C291

main82111-0C300i200408-200508

PART NUMBER LABEL=82111-0C300

main82111-0C301i200508

PART NUMBER LABEL=82111-0C301

main82111-0C310i200408-200508

PART NUMBER LABEL=82111-0C310

main82111-0C311i200508

PART NUMBER LABEL=82111-0C311

main82111-0C320i200408

PART NUMBER LABEL=82111-0C320

main82111-0C330i200408-200508

PART NUMBER LABEL=82111-0C330

main82111-0C331i200508

PART NUMBER LABEL=82111-0C331

main82111-0C340i200408

PART NUMBER LABEL=82111-0C340

main82111-0C350i200408-200508

PART NUMBER LABEL=82111-0C350

main82111-0C351i200508

PART NUMBER LABEL=82111-0C351

main82111-0C360i200408

PART NUMBER LABEL=82111-0C360

main82111-0C370i200408

PART NUMBER LABEL=82111-0C370

main82111-0C380i200408

PART NUMBER LABEL=82111-0C380

main82111-0C390i200408

PART NUMBER LABEL=82111-0C390

main82111-0C430i200304-200309

PART NUMBER LABEL=82111-0C430

main82111-0C440i200304-200309

PART NUMBER LABEL=82111-0C440

main82111-0C450i200304-200309

PART NUMBER LABEL=82111-0C450

main82111-0C460i200304-200309

PART NUMBER LABEL=82111-0C460

main82111-0C470i200304-200309

PART NUMBER LABEL=82111-0C470

main82111-0C480i200304-200309

PART NUMBER LABEL=82111-0C480

82210CFUSIBLE LINK

main90982-08202i200310-200408

60A,TERM.:MALE,YEL

main90982-08246i200208-200408

100A,TERM.:MALE,BLUE

main90982-08274i200508

120A,TERM.:MALE,WHT

main90982-08280i200008-200011

30A,TERM.:FEMALE,PNK

main90982-08281×4i200008-200011

40A,TERM.:FEMALE,GRN; 40A,TERM.:FEMALE,GRN,W(ABS & DAY TIME RUNNING LIGHT SYSTEM); 40A,TERM.:FEMALE,GRN,W(ABS)

main90982-08282i200408

50A,TERM.:FEMALE,RED

main90982-08283i200408

30A,TERM.:FEMALE,PNK

main90982-08284i200310-200408

40A,TERM.:FEMALE,GRN

main90982-08285i200310-200408

50A,FEMALE,RED,32VDC

main90982-08286i200408

140A,TERM.:MALE,RBR

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8282135050RETAINER, HEADLAMP HARNESS

main82821-35050

828900C040CONNECTOR ASSY, WIRING HARNESS

main82890-0C040

9008011369

main90080-11369

9011906390

main90119-06390

9011906807

main90119-06807

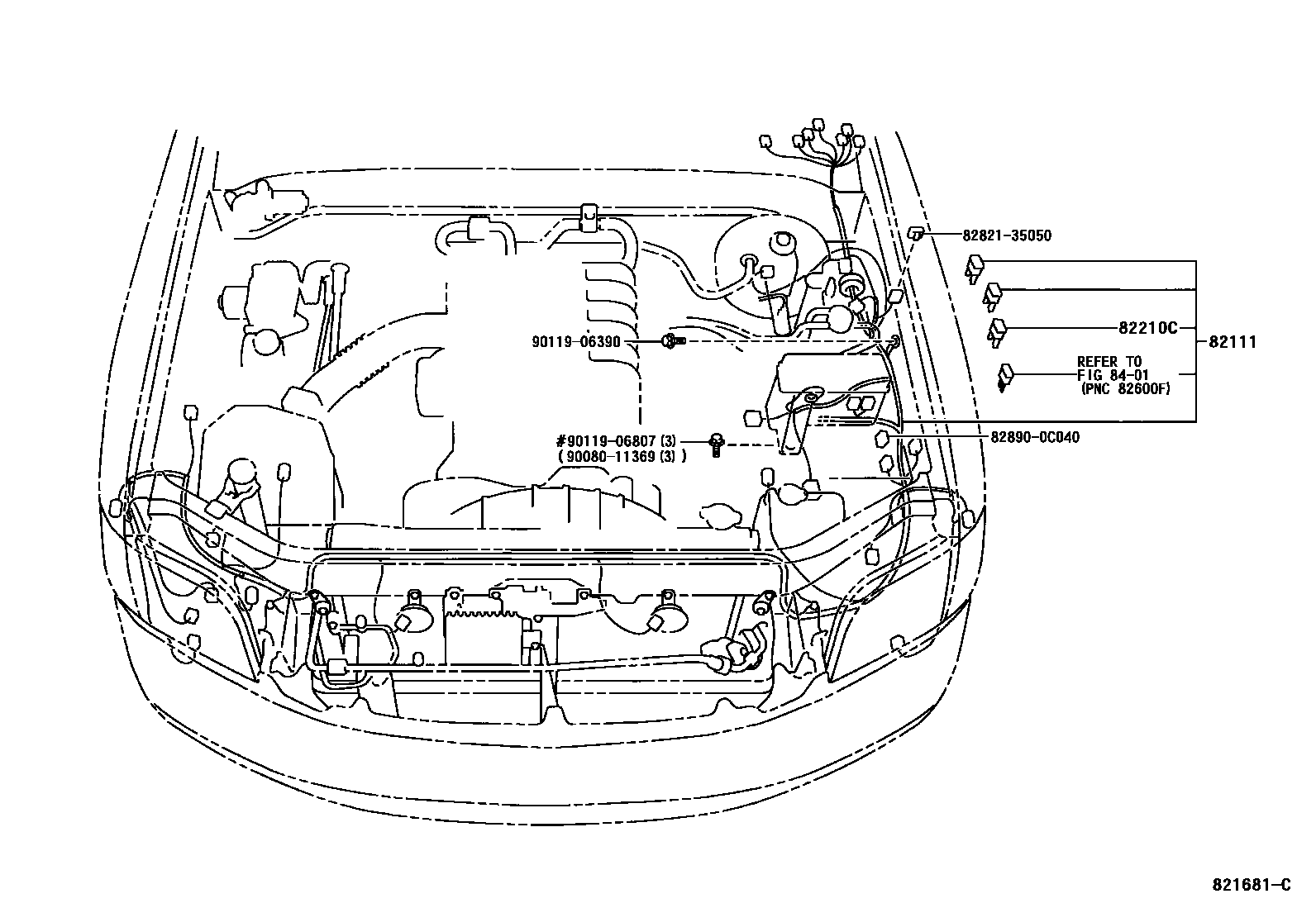

WIRING & CLAMP
