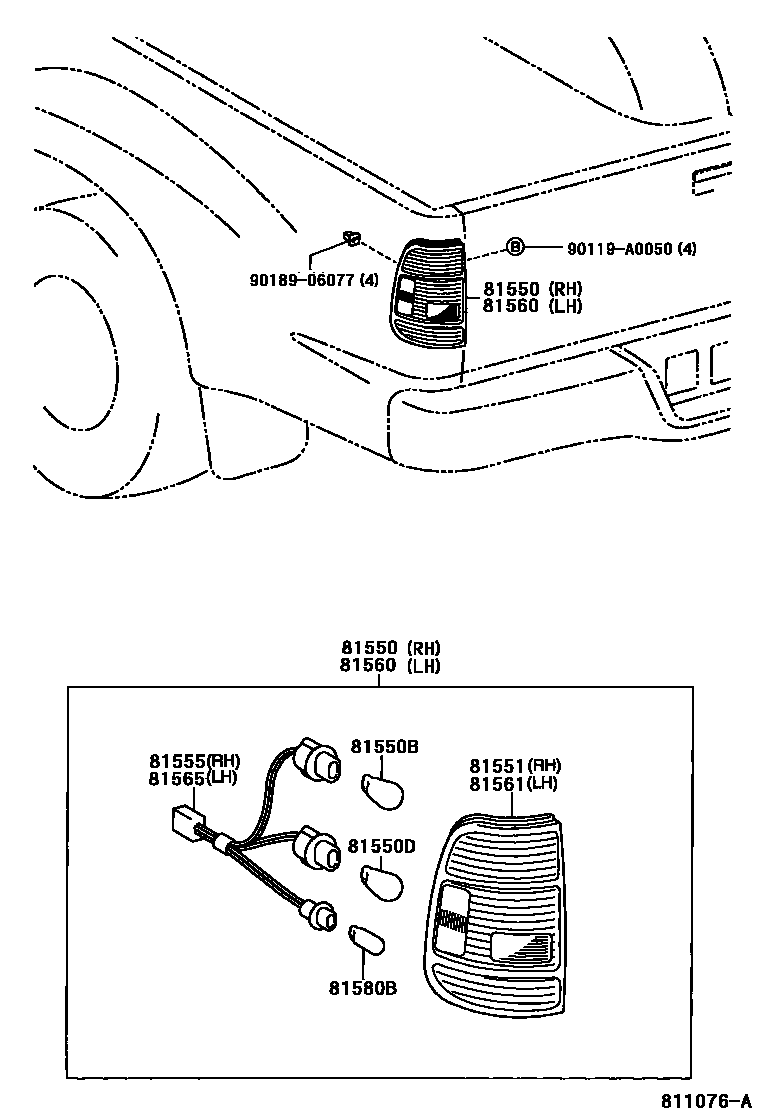

REAR COMBINATION LAMP

0001 1 0003 1 0004 1 0005 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0C010iUCK30,40,VCK30,40199902-200208

main81550-0C030iUCK30,40..SSD200408

main81550-0C040iUCK31,41200408

main81550-0C060iGSK30,UCK30,40..SD200408

81550BBULB(FOR REAR COMBINATION LAMP)

main90084-98027×2iUCK30,40..SSD200208-200408

12V 27/8W

main90084-98036×2iUCK30,40,VCK30,40199902-200208

12V 27W

main90981-11059×2iUCK31,41200408-200612

12V 16W,NO.1

main90981-13044×2iUCK31,41200310-200408

12V 21/5W,NO.2

main90981-15011×2iUCK31,41200310-200408

12V 21W,AMBER,NO.3

81550DBULB(FOR REAR COMBINATION LAMP)

main90084-98037×2iUCK30,40,VCK30,40199902-200208

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-0C010iUCK30,40,VCK30,40199902-200208

main81551-0C030iUCK30,40..SSD200208-200408

main81551-0C060iGSK30,UCK30,40..SD200408

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0C010iUCK30,40,VCK30,40..SD200208-200408

main81555-0C030iUCK30,40..SSD200408

main81555-0C040iUCK31,41200408

main81555-0C060iGSK30,UCK30,40..SD200408

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0C010iUCK30,40,VCK30,40199902-200208

main81560-0C030iUCK30,40..SSD200208-200408

main81560-0C040iUCK31,41200408

main81560-0C060iGSK30,UCK30,40..SD200408

81561LENS, REAR COMBINATION LAMP, LH

main81561-0C010iUCK30,40,VCK30,40..SD200208-200408

main81561-0C030iUCK30,40..SSD200208-200408

main81561-0C060iGSK30,UCK30,40..SD200408

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0C010iUCK30,40,VCK30,40..SD200208-200408

main81555-0C030iUCK30,40..SSD200408

main81555-0C040iUCK31,41200408

main81555-0C060iGSK30,UCK30,40..SD200408

81580BBULB (FOR REAR LAMP)

main90080-81065×2iUCK30,40,VCK30,40199908-200208

12V 18W

main90084-98039×2iUCK30,40,VCK30,40199902-199908

12V 16W

90119A0050

main90119-A0050

9018906077

main90189-06077

11 parts on this diagram · 4 diagrams in section
