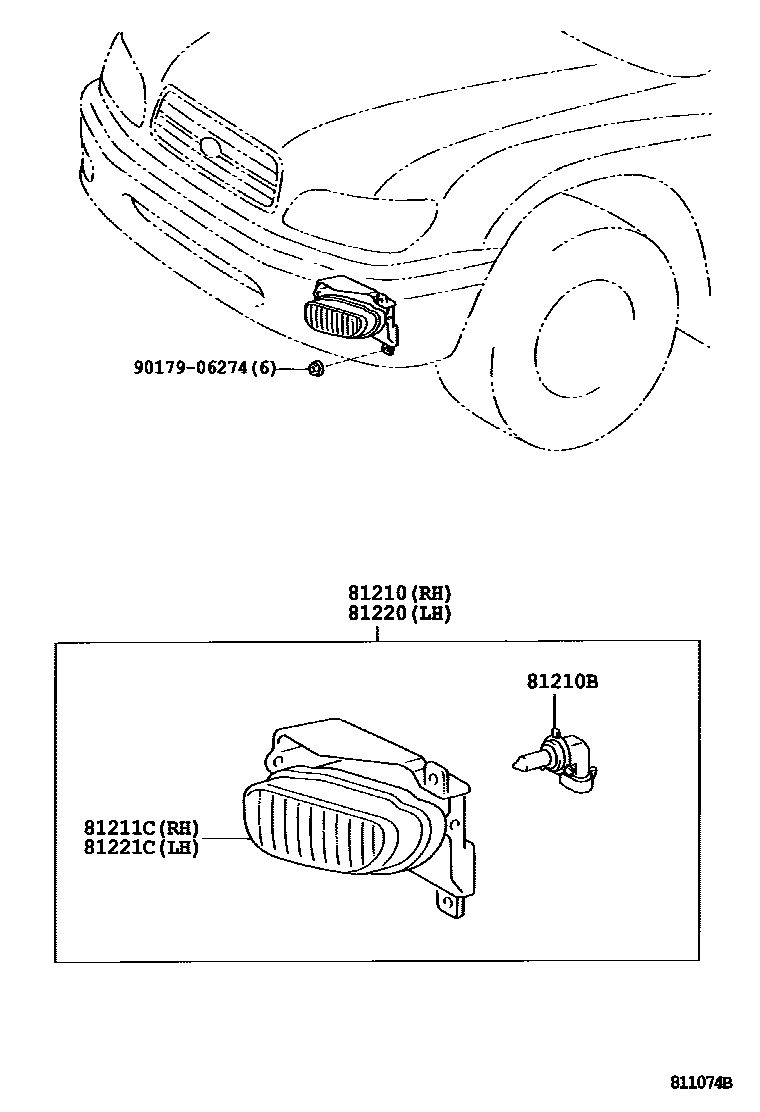

FOG LAMP

0001 1TYPE A 0004 1TYPE B

81210LAMP ASSY, FOG

main81210-0C010iGSK30,UCK30,40..DLX,SR5200408

TYPE A:REFER TO ILLUSTRATION

main81210-0C020iUCK3#,4#,VCK30,40200208-200311

TYPE B:REFER TO ILLUSTRATION

main81210-0C021iUCK3#,4#,VCK30,40200311-200408

TYPE B:REFER TO ILLUSTRATION

81210BBULB, FOG LAMP

main90981-13047×2iUCK30,40,VCK30,40199902-200208

12V 51W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-0C010iGSK30,UCK30,40..DLX,SR5200408

TYPE A:REFER TO ILLUSTRATION

main81211-0C020iUCK3#,4#,VCK30,40200208-200311

TYPE B:REFER TO ILLUSTRATION

main81211-0C021iUCK3#,4#,VCK30,40200311-200408

TYPE B:REFER TO ILLUSTRATION

81220LAMP ASSY, FOG, LH

main81220-0C010iGSK30,UCK30,40..DLX,SR5200408

TYPE A:REFER TO ILLUSTRATION

main81220-0C020iUCK3#,4#,VCK30,40200208-200311

TYPE B:REFER TO ILLUSTRATION

main81220-0C021iUCK30,40..ACB;GSK30,UCK31,41;UCK40..DLX..CND200408

TYPE B:REFER TO ILLUSTRATION

81221CLAMP UNIT, FOG LAMP, LH

main81221-0C010iGSK30,UCK30,40..DLX,SR5200408

TYPE A:REFER TO ILLUSTRATION

main81221-0C020iUCK3#,4#,VCK30,40200208-200311

TYPE B:REFER TO ILLUSTRATION

main81221-0C021iUCK3#,4#,VCK30,40200311-200408

TYPE B:REFER TO ILLUSTRATION

9017906274

main90179-06274

6 parts on this diagram · 2 diagrams in section
