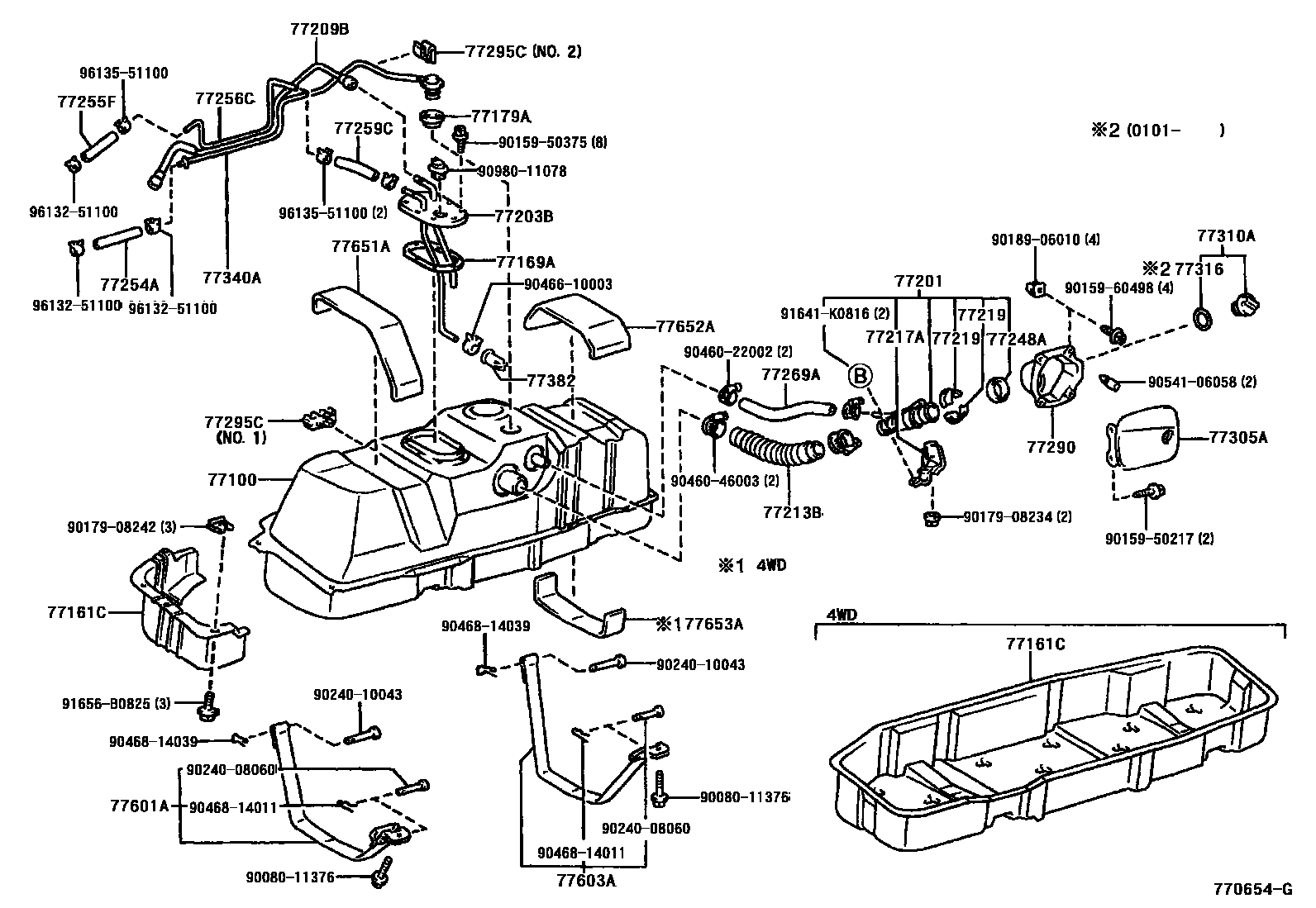

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE

77100TANK ASSY, FUEL

main77001-0C010iUCK30,40,VCK30,40199902-200208

main77001-0C030iUCK3#,4#,VCK30,40200208-200408

main77001-0C050iGSK30,UCK3#,4#200408-200503

77161CPROTECTOR, FUEL TANK, LOWER

main77161-0C010iUCK30,VCK30199902-200408

main77161-0C020iUCK30..USA;UCK40,VCK40199902-200408

OFF ROAD PACKAGE

main77161-0C040iUCK4#;UCK3#..(LIMD,SR5)..USA200408

77169AGASKET, FUEL SUCTION TUBE SET

main77169-04010iUCK30,40,VCK30,40199902-200408

main77169-0C010iGSK30,UCK3#,4#200408-200503

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010iUCK30,40,VCK30,40199902-200208

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-0C010iUCK30,40,VCK30,40199902-200208

main77201-0C040iGSK30,UCK3#,4#..SD200408

main77201-0C050iUCK3#,4#,VCK30,40..SD200208-200408

main77201-0C060iUCK30,40..SSD200208-200408

main77201-0C070iUCK30,40..SSD200408

77203BTUBE SUB-ASSY, FUEL SUCTION

main77203-0C010iVCK30,40199902-200008

main77203-0C011iVCK30,40200008-200208

main77203-0C020iUCK30,40199902-200008

main77203-0C021iUCK30,40200008-200208

main77203-0C050iUCK3#,4#,VCK30,40200208-200408

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-0C010iUCK30,40,VCK30,40199902-200208

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0C010iUCK30,40,VCK30,40199902-200208

L=345

main77213-0C030iUCK3#,4#,VCK30,40..SD200208-200408

main77213-0C040iUCK30,40..SSD200208-200408

main77213-0C060iGSK30,UCK3#,4#..SD200408

main77213-0C070iUCK30,40..SSD200408

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77204-0C010iUCK30,40,VCK30,40199902-200208

main77204-0C040iUCK3#,4#,VCK30,40..SD200208-200408

main77204-0C050iUCK30,40..SSD200208-200408

77219COVER, FUEL TANK FILLER PIPE

main77219-06010iUCK30,40,VCK30,40199902-200208

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-06010iUCK30,40,VCK30,40199902-200208

main77248-06020iUCK3#,4#,VCK30,40200208-200408

main77248-0C010iGSK30,UCK3#,4#200408

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main77259-34040iUCK30,40,VCK30,40199902-200208

L=155

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main77259-0C070iUCK30,40,VCK30,40199902-200208

L=225

77256CTUBE, FUEL RETURN, NO.2

main77256-0C010iUCK30,40,VCK30,40199902-200008

main77256-0C011iUCK30,40,VCK30,40200008-200208

77259CHOSE, FUEL

main77259-0C040iUCK30,40,VCK30,40199902-200208

77269AHOSE, FUEL TANK BREATHER

main77269-0C010iUCK30,40,VCK30,40199902-200208

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-0C011iUCK30,40,VCK30,40199902-200208

main77290-0C020iUCK30,40..SSD200208-200408

main77290-0C030iUCK30,40,VCK30,40..SD200208-200408

main77290-0C040iUCK31,41200310-200408

77295CGROMMET, FUEL TUBE

main77295-0C010iUCK3#,4#,VCK30,40200208-200408

NO.2

main77295-0C020iUCK3#,4#,VCK30,40200208-200408

NO.1

main77295-34020iUCK30,40,VCK30,40199902-200208

NO.1

main77295-34030iUCK30,40,VCK30,40199902-200208

NO.2

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-0C011iUCK30,40,VCK30,40199902-199911

main77305-0C012iUCK30,40,VCK30,40199911-200208

main77305-0C020iUCK30,40..SSD200208-200408

main77305-0C030iGSK30,UCK30,40..SD200208-200408

main77305-0C040iUCK31,41200310-200408

77310ACAP ASSY, FUEL TANK

main77300-06010iUCK30,40,VCK30,40200208-200308

(L)

main77300-08010iUCK30,40,VCK30,40200102-200208

main77300-33052iUCK30,40,VCK30,40200208-200308

(J)

main77300-33070iUCK3#,4#,VCK30,40200308-200408

main77310-06020iUCK30,40,VCK30,40199902-200102

77316GASKET, FUEL TANK CAP

main77316-06010iUCK30,40,VCK30,40200102-200208

main77316-06020iUCK30,40,VCK30,40200208-200308

(L)

main77316-33042iUCK30,40,VCK30,40200208-200308

(J)

main77316-33042iGSK30,UCK3#,4#200308-200408

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-34010iUCK30,40,VCK30,40199902-200208

77382VALVE, FUEL CUT OFF

main77382-34010iUCK30,40..(DLX,LIMD)..CND200008-200408

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0C020iUCK3#..(LIMD,SR5)..USA200408

OFF ROAD PACKAGE

main77601-0C030iGSK30,UCK3#200408

main77601-34030iUCK3#,VCK30199902-200408

main77601-34040iUCK4#;UCK3#,VCK40..USA200008-200408

OFF ROAD PACKAGE

main77601-34040iUCK40,VCK40199902-200008

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-0C020iUCK3#..(LIMD,SR5)..USA200408

OFF ROAD PACKAGE

main77603-0C030iGSK30,UCK3#200408

main77603-34030iUCK30,VCK30199902-200210

main77603-34040iUCK40,VCK40199902-200008

main77603-34040iUCK40;UCK30,VCK40..USA200008-200310

OFF ROAD PACKAGE

main77603-34060iUCK4#,VCK40200310-200408

OFF ROAD PACKAGE

main77603-34070iUCK3#,VCK30200210-200408

77651ACUSHION, FUEL TANK, NO.1

main77651-0C010iUCK3#,4#,VCK30,40199902-200408

77652ACUSHION, FUEL TANK, NO.2

main77652-0C010iUCK30,40,VCK30,40199902-200408

77653ACUSHION, FUEL TANK, NO.3

main77653-0C010iUCK40,VCK40199902-200408

9008011376

main90080-11376

9015950217

main90159-50217

9015950375

main90159-50375

9015960498

main90159-60498

9017908234

main90179-08234

9017908242

main90179-08242

9018906010

main90189-06010

9024008060

main90240-08060

9024010043

main90240-10043

9046022002

main90460-22002

9046046003

main90460-46003

9046610003

main90466-10003

9046814011

main90468-14011

9046814039

main90468-14039

9054106058

main90541-06058

9098011078

main90980-11078

91641K0816

main91641-K0816

91656B0825

main91656-B0825

9613251100

main96132-51100

9613551100

main96135-51100

48 parts on this diagram · 7 diagrams in section
