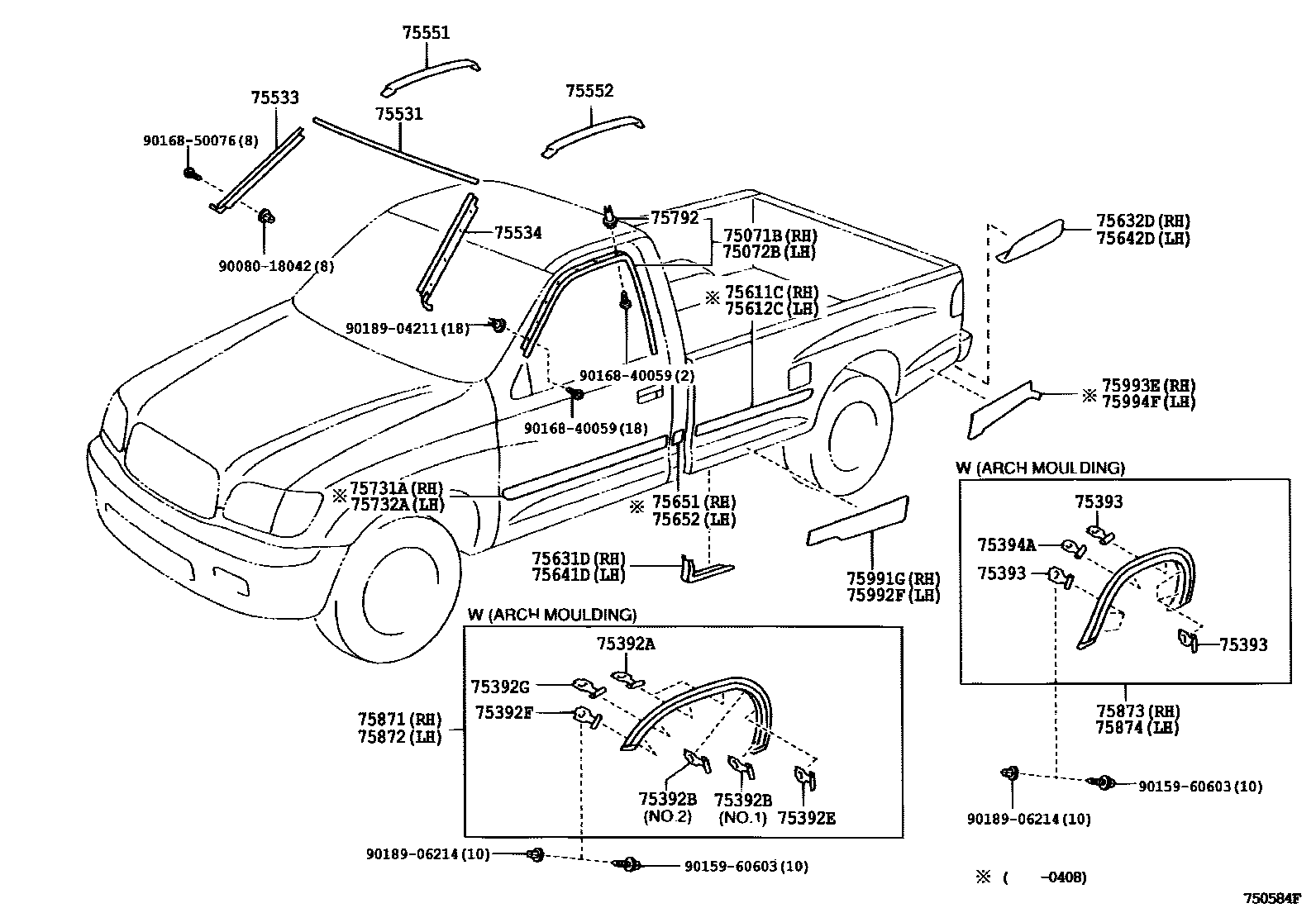

MOULDING

0001 1 0002 1 0003 1W(FENDER WHEEL OPENING MOULDI0004 1 0005 1W(FENDER WHEEL OPENING MOULDI

75071BMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE UPPER RH

main75071-0C010iUCK30,40,VCK30,40200208-200408

75072BMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE UPPER LH

main75072-0C010iUCK30,40,VCK30,40200208-200408

75392ARETAINER, OUTSIDE MOULDING, NO.1

main75392-0C010×4iGSK30..SR5;UCK40..SR5..CND;UCK30..SD..(DLX,SR5);UCK40..SD..(DLX,SR5)..USA200408

main75392-0C100×4iUCK31,41..SR5200310-200408

75392BRETEINER, OUTSIDE MOULDING, NO.1

main75392-0C020×4iUCK30,40,VCK30,40..SR5199902-200001

NO.1 & NO.2

main75392-0C080×2iUCK30,40,VCK30,40..SD..SR5200208-200408

NO.2

main75392-0C110×2iUCK31,41..SR5200408

75392ERETAINER, OUTSIDE MOULDING, NO.1

main75392-0C050×2iUCK30,40,VCK30,40..SD..SR5200208-200408

main75392-0C120×2iUCK31,41..SR5200408

75392FRETAINER, OUTSIDE MOULDING

main75392-0C040×2iGSK30..SR5;UCK40..SR5..CND;UCK30..SD..(DLX,SR5);UCK40..SD..(DLX,SR5)..USA200408

main75392-0C130×4iUCK31,41..SR5200310-200408

75392GRETAINER, OUTSIDE MOULDING, NO.1

main75392-0C060×2iGSK30..SR5;UCK40..SR5..CND;UCK30..SD..(DLX,SR5);UCK40..SD..(DLX,SR5)..USA200408

main75392-0C140×4iUCK31,41..SR5200408

75393RETAINER, OUTSIDE MOULDING, NO.2

main75392-0C030×10iGSK30..SR5;UCK40..SR5..CND;UCK30..SD..(DLX,SR5);UCK40..SD..(DLX,SR5)..USA200408

W(ARCH MOULDING)

main75392-0C150×2iUCK31,41..SR5200310-200408

main75393-0C010×2iUCK30,40,VCK30,40..ACB200008-200208

W(FENDER WHEEL OPENING MOULDING)

75394RETAINER, OUTSIDE MOULDING, NO.3

main75392-0C090×10iUCK31,41..SR5200408

75394ARETAINER, OUTSIDE MOULDING, NO.3

main75392-0C070×2iUCK30,40,VCK30,40..SD..SR5200208-200408

main75392-0C190×2iUCK31,41..SR5200408

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-0C010iUCK30,40,VCK30,40200208-200408

main75531-0C020iUCK31,41200408

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-0C010iUCK30,40,VCK30..CND200208-200408

main75533-0C020iGSK30,UCK30,40..USA200408

main75533-0C030iUCK31,41200310-200408

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-0C010iUCK30,40,VCK30..CND200208-200408

main75534-0C020iUCK30,40,VCK30,40..USA200208-200408

main75534-0C030iUCK31,41200310-200408

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0C010iUCK30,40,VCK30,40..ACB199902-200208

main75551-0C020iUCK40,VCK30..RCB200208-200408

main75551-0C040iUCK31,41200310-200408

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0C010iGSK30,UCK30,40..ACB200408

main75552-0C020iUCK40,VCK30..RCB200208-200408

main75552-0C040iUCK31,41200310-200408

75611CMOULDING, FRONT FENDER, OUTSIDE RH

main75611-0C010iUCK30,40,VCK30,40..ACB..SR5199902-200208

main75611-0C020-A0iUCK30,40,VCK30,40..LIMD200008-200208

WHITE,056

main75611-0C020-B0iUCK30,40..CND;UCK30,40,VCK30,40..LIMD199906-200008

GRAY M.M.OP.,1C7

main75611-0C020-C1iUCK30,40,VCK30,40..LIMD200008-200208

BLACK,202

main75611-0C020-D0iUCK30,40,VCK30,40..LIMD200008-200208

RED MM,3K4

main75611-0C020-G0iUCK30,40,VCK30,40..LIMD200008-200208

DK. GREEN MC.,2FC ,6Q7

main75611-0C030iUCK40,VCK40..RCB..USA199902-200208

75612CMOULDING, FRONT FENDER, OUTSIDE LH

main75621-0C010iUCK30,40,VCK30,40..ACB..SR5199902-200208

main75621-0C020-A0iUCK30,40..CND;UCK30,40,VCK30,40..LIMD199906-200008

WHITE,056

main75621-0C020-B0iUCK30,40,VCK30,40..LIMD200008-200208

GRAY M.M.OP.,1C7

main75621-0C020-C1iUCK30,40,VCK30,40..LIMD200008-200208

BLACK,202

main75621-0C020-D0iUCK30,40,VCK30,40..LIMD200008-200208

RED MM,3K4

main75621-0C020-G0iUCK30,40..CND;UCK30,40,VCK30,40..LIMD199906-200008

DK. GREEN MC.,2FC ,6Q7

main75621-0C030iUCK40..RCB..USA200208-200408

75631DMOULDING, SIDE PANEL, LOWER NO.1 RH

main75631-0C010iUCK30,40,VCK30,40..SD200208-200408

main75631-0C020iUCK30,40..SSD200408

main75631-0C030iUCK31,41200310-200408

75632DMOULDING, SIDE PANEL, LOWER NO.2 RH

main75632-0C010iUCK30,40,VCK30..CND200208-200408

main75632-0C020iUCK31,41..CND200310-200408

75641DMOULDING, SIDE PANEL, LOWER NO.1 LH

main75641-0C010iGSK30,UCK30,40..SD200408

main75641-0C020iUCK30,40..SSD200208-200408

main75641-0C030iUCK31,41200408

75642DMOULDING, SIDE PANEL, LOWER NO.2 LH

main75642-0C010iUCK30,40,VCK30..CND200208-200408

main75642-0C030iUCK31,41..CND200310-200408

75651MOULDING, QUARTER, OUTSIDE RH

main75651-0C010iUCK40,VCK40..RCB..USA199902-200208

75652MOULDING, QUARTER, OUTSIDE LH

main75652-0C010iUCK40,VCK40..RCB..USA199902-200208

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-0C010iGSK30,UCK30,40..SR5200408

main75731-0C020-A0iUCK30,40,VCK30,40..LIMD200008-200208

WHITE,056

main75731-0C020-B0iUCK30,40..CND;UCK30,40,VCK30,40..LIMD199906-200008

GRAY M.M.OP.,1C7

main75731-0C020-B2iUCK40..SR5..CND200509

GRAY M.M.,1E3

main75731-0C020-C1iUCK40..SR5..CND200509

BLACK,202

main75731-0C020-D0iUCK30,40..CND;UCK30,40,VCK30,40..LIMD199906-200008

RED MM,3K4

main75731-0C020-D1iUCK30,40..LIMD200408

DK. RED M.M.,3Q3

main75731-0C020-G0iUCK30,40,VCK30,40..LIMD200008-200208

DK. GREEN MC.,2FC ,6Q7

main75731-0C020-J0iUCK40..SR5..CND200509

BLUE MC.,8M6

main75731-0C030-A0iUCK31,41..SR5200310-200408

WHITE,056

main75731-0C030-B1iUCK31,41..SR5200310-200408

SILVER ME.,1D6

main75731-0C030-B2iUCK31,41..SR5200310-200408

GRAY M.M.,1E3

main75731-0C030-C0iUCK31,41..SR5200408

BLACK,202

main75731-0C030-D1iUCK31,41..SR5200408

DK. RED M.M.,3Q3

main75731-0C030-E0iUCK31,41..SR5200408

BEIGE M. M.,4Q2

main75731-0C030-G0iUCK31,41..SR5200310-200408

DK.GREEN MC.,6Q7

main75731-0C030-G1iUCK31,41..SR5200408

DK.GREEN M.M.,6T8

main75731-0C030-J0iUCK31,41..SR5200310-200408

BULE M.M.,8P9

main75731-0C030-J1iUCK31,41..SR5200310-200408

DK.BLUE MC.,8Q0

main75731-0C030-J2iUCK31,41..SR5200408

BLUE MC.,8M6

main75731-0C030-J3iUCK31,41..SR5200408

DK.BLUE MM,8J7

main75731-0C040-A0iUCK31,41..LIMD200310-200408

WHITE,056

main75731-0C040-B2iUCK41..SR5..CND200509

SE PACKAGE,GRAY M.M.,1E3

main75731-0C040-C0iUCK41..SR5..CND200509

SE PACKAGE,BLACK,202

main75731-0C040-D1iUCK31,41..LIMD200310-200408

DK. RED M.M.,3Q3

main75731-0C040-G0iUCK31,41..LIMD200310-200408

DK.GREEN MC.,6Q7

main75731-0C040-J1iUCK41..SR5..CND200509

SE PACKAGE,BLUE MC.,8M6

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-0C010iUCK30,40,VCK30,40..SR5199902-200208

main75732-0C020-A0iUCK30,40,VCK30,40..LIMD200008-200208

WHITE,056

main75732-0C020-B0iUCK30,40..CND;UCK30,40,VCK30,40..LIMD199906-200008

GRAY M.M.OP.,1C7

main75732-0C020-B2iUCK30,40..LIMD200408

GRAY M.M.,1E3

main75732-0C020-C1iUCK30,40..LIMD200408

BLACK,202

main75732-0C020-D0iUCK30,40,VCK30,40..LIMD200008-200208

RED MM,3K4

main75732-0C020-D1iUCK30,40..LIMD200208-200408

DK. RED M.M.,3Q3

main75732-0C020-G0iUCK40..SR5..CND;UCK30..SD..SR5..USA200305-200408

DK. GREEN MC.,6Q7

main75732-0C020-J0iUCK30,40..LIMD200408

BLUE MC.,8M6

main75732-0C030-A0iUCK31,41..SR5200310-200408

WHITE,056

main75732-0C030-B1iUCK31,41..SR5200310-200408

SILVER ME.,1D6

main75732-0C030-B2iUCK31,41..SR5200310-200408

GRAY M.M.,1E3

main75732-0C030-C0iUCK31,41..SR5200408

BLACK,202

main75732-0C030-D1iUCK31,41..SR5200408

DK. RED M.M.,3Q3

main75732-0C030-E0iUCK31,41..SR5200310-200408

BEIGE M. M.,4Q2

main75732-0C030-G0iUCK31,41..SR5200310-200408

DK.GREEN MC.,6Q7

main75732-0C030-G1iUCK31,41..SR5200408

DK.GREEN M.M.,6T8

main75732-0C030-J0iUCK31,41..SR5200310-200408

BULE M.M.,8P9

main75732-0C030-J1iUCK31,41..SR5200310-200408

DK.BLUE MC.,8Q0

main75732-0C030-J2iUCK31,41..SR5200408

BLUE MC.,8M6

main75732-0C030-J3iUCK31,41..SR5200408

DK.BLUE MM,8J7

main75732-0C040-A0iUCK31,41..LIMD200310-200408

WHITE,056

main75732-0C040-B2iUCK41..SR5..CND200509

SE PACKAGE,GRAY M.M.,1E3

main75732-0C040-C0iUCK31,41..LIMD200408

BLACK,202

main75732-0C040-D1iUCK31,41..LIMD200408

DK. RED M.M.,3Q3

main75732-0C040-G0iUCK31,41..LIMD200310-200408

DK.GREEN MC.,6Q7

main75732-0C040-J1iUCK31,41..LIMD200408

BLUE MC.,8M6

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-34010×2iUCK30,40,VCK30,40199902-200208

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75085-0C010iUCK30,40,VCK30,40..SD..SR5200208-200408

W(ARCH MOULDING)

main75085-0C050iUCK31,41..SR5200310-200408

main75871-0C040iUCK30,40,VCK30,40..LIMD200003-200208

W(FENDER WHEEL OPENING MOULDING)

main75871-0C902iUCK30,40,VCK30,40..ACB200208-200312

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75086-0C010iUCK30,40,VCK30,40..SR5199902-200208

W(ARCH MOULDING)

main75086-0C050iUCK31,41..SR5200310-200408

main75872-0C040iUCK30,40,VCK30,40..LIMD200003-200208

W(FENDER WHEEL OPENING MOULDING)

main75872-0C902iUCK30,40,VCK30,40..ACB200208-200312

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75087-0C010iGSK30..SR5;UCK40..SR5..CND;UCK30..SD..(DLX,SR5);UCK40..SD..(DLX,SR5)..USA200408

W(ARCH MOULDING)

main75087-0C070iUCK31,41..SR5200408

main75873-0C040iUCK30,40,VCK30,40..ACB..USA199902-199906

W(FENDER WHEEL OPENING MOULDING)

sub75873-0C041

main75873-0C900iUCK30,40..SSD200208-200401

main75873-0C901iUCK31,41200310-200408

UNPAINTED

main75873-0C904iUCK30,40,VCK30,40..ACB..SD200208-200312

main75873-0C906iUCK30,40..SSD200408

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75088-0C010iGSK30..SR5;UCK40..SR5..CND;UCK30..SD..(DLX,SR5);UCK40..SD..(DLX,SR5)..USA200408

W(ARCH MOULDING)

main75088-0C070iUCK31,41..SR5200408

main75874-0C040iUCK30..SR5;UCK30..LIMD..USA;UCK40,VCK30,40..ACB200008-200208

W(FENDER WHEEL OPENING MOULDING)

sub75874-0C041

main75874-0C900iUCK30,40..SSD200208-200401

main75874-0C901iUCK31,41200408

W(FENDER WHEEL OPENING MOULDING)

main75874-0C904iUCK30,40,VCK30,40..ACB..SD200401-200408

main75874-0C906iUCK30,40..SSD200401-200408

75991GSTRIPE, QUARTER, FRONT RH

main76925-0C010iUCK30,40,VCK40..ACB..CND200012-200208

main76925-0C020iUCK40,VCK30..DLX..CND200208-200408

main76925-0C030iUCK30,40..SSD200208-200408

main76925-0C040iUCK31,41..SR5..CND200408

main76925-0C050iUCK31,41..CND200310-200408

W(FENDER WHEEL OPENING MOULDING)

75992FSTRIPE, QUARTER, FRONT LH

main76926-0C010iUCK30,40..ACB..CND200408

main76926-0C020iGSK30,UCK40..DLX..CND200408-200608

main76926-0C030iUCK30,40..SSD200408

main76926-0C040iUCK31,41..SR5..CND200310-200408

main76926-0C050iUCK31,41..CND200310-200408

W(FENDER WHEEL OPENING MOULDING)

75993ESTRIPE, QUARTER, REAR RH

main76927-0C010iUCK30,40,VCK30,40..CND200102-200104

main76927-0C011iUCK30,40,VCK30,40..CND200104-200208

75994FSTRIPE, QUARTER, REAR LH

main76928-0C010iUCK30,40,VCK40..ACB..CND200012-200102

main76928-0C011iUCK30,40,VCK30,40..CND200104-200208

9008018042

main90080-18042

9015960603

main90159-60603

9016840059

main90168-40059

9016850076

main90168-50076

9018904211

main90189-04211

9018906214

main90189-06214

40 parts on this diagram · 5 diagrams in section
