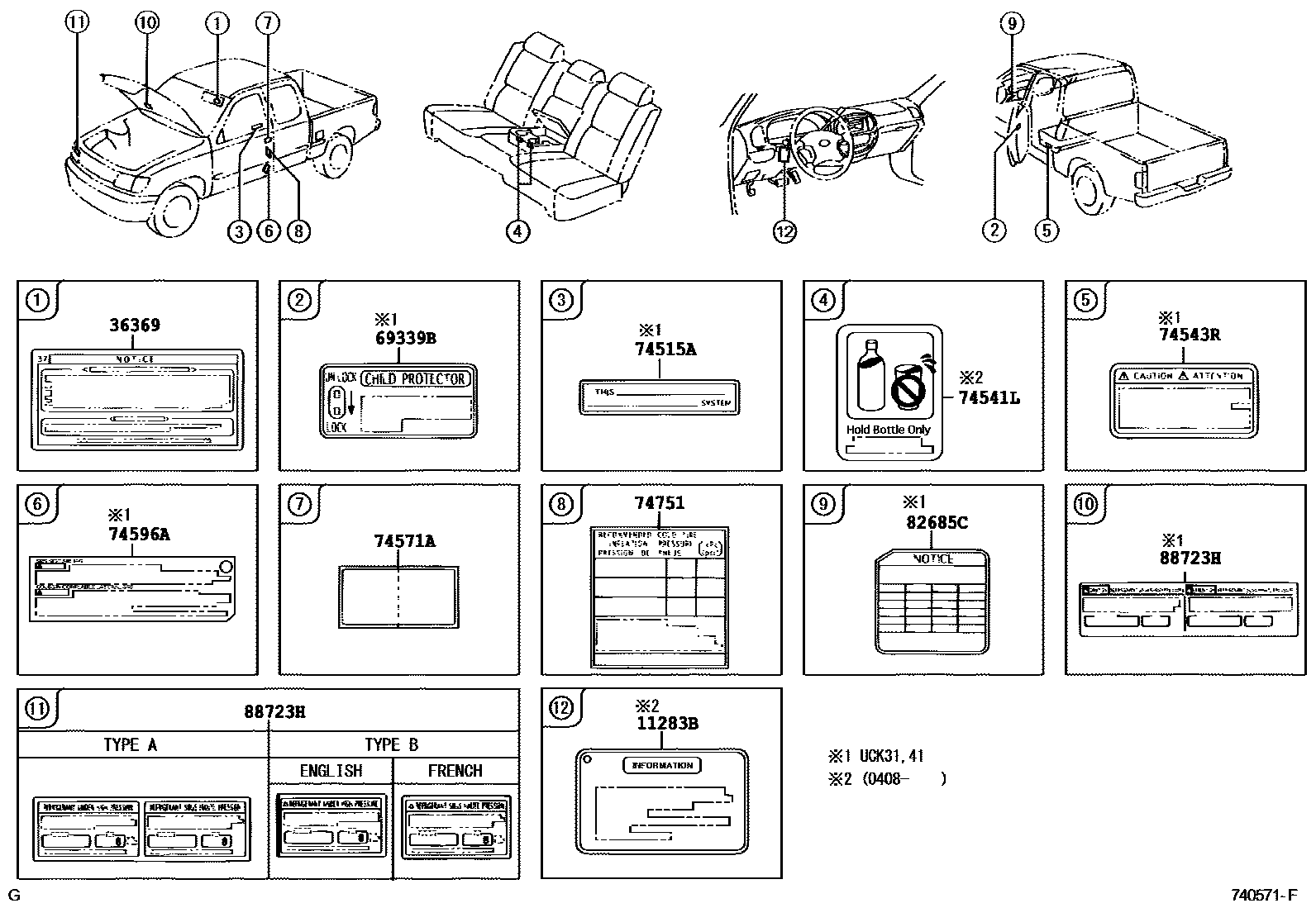

CAUTION PLATE

11283BLABEL, LEAK DETECTION PUMP INFORMATION

main11294-28010i1GRFE,2UZFE..GSK30,UCK3#,4#200408

36369LABEL, TRANSFER INFORMATION

main36369-34010iUCK40..USA199902-200207

main36369-34011iUCK40..USA200208-200210

main36369-34012iUCK4#..USA200210-200408

main36369-34020iUCK4#..CND200408

main36369-35390iVCK40200208-200408

main36369-35410iVCK40..CND199902-200208

69339BPLATE, CHILD PROTECTOR LOCK CAUTION

main69339-03010×2iUCK31,41200310-200408

74515APLATE, THEFT WARNING

main74515-08010×2iUCK30,40..USA;GSK30,UCK31,41..LIMD,SR5200408

74541LLABEL, BOTTLE HOLDER INFORMATION

main74541-48020×2iGSK30,UCK3#,4#..5HC..(LIMD,SR5)200408

74543RLABEL, REAR SEAT CAUTION

main74543-08010×2iUCK31,41200310-200408

74571AFILM, LABEL COVER

main74571-28020iUCK30,40,VCK30,40199902-200105

main74571-35020iUCK30,40,VCK30,40200105-200208

74596ALABEL, SIDE AIRBAG CAUTION

main74596-02010×2iUCK31,41200408

74751LABEL, TIRE PRESSURE INFORMATION

main42661-0C010iUCK30,40,VCK30,40..SR5200008-200208

main42661-0C020iUCK40,VCK30,40..DLX200008-200208

main42661-0C030iUCK30,40,VCK30,40..LIMD200008-200208

main42661-0C060iUCK30,40..SSD;UCK30,40..SD..LIMD200208-200408

main42661-0C070iUCK30,40..ACB..SD..SR5200208-200408

main42661-0C110iUCK41..SR5;UCK31..SR5..USA200310-200408

main42661-0C120iUCK31,41..LIMD200310-200408

main42661-0C130iUCK31..CND200310-200408

82685CPLATE, CAUTION

main82683-0C021iUCK31,41200310-200408

88723HLABEL, COOLER SERVICE CAUTION

main88723-0C020iUCK30,40,VCK30,40200208-200408

TYPE A:REFER TO ILLUSTRATION

main88723-0C050iUCK31,41200408

main88723-35050iUCK30,40,VCK30,40..DLX,SR5200208-200309

TYPE B:REFER TO ILLUSTRATION, ENGLISH

main88723-35060iUCK30,40,VCK30,40..4HC..(DLX,SR5)199902-200208

TYPE B:REFER TO ILLUSTRATION, FRENCH

11 parts on this diagram · 1 diagram in section
