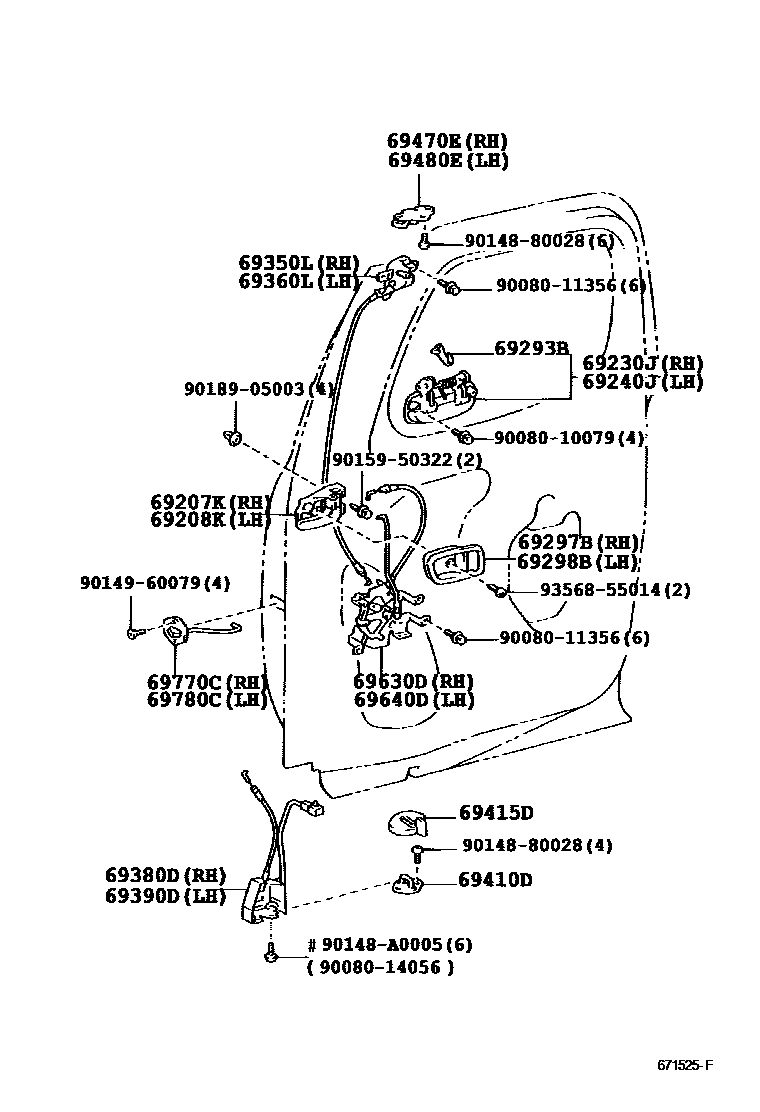

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69207KHANDLE SUB-ASSY, ACCESS PANEL INSIDE, RH

main69207-0C010-B0iUCK30,40,VCK30,40..ACB199902-200208

MOON MIST,TRIM10

main69207-0C010-B1iGSK30,UCK30,40..ACB200408

MD.CHARCOAL,TRIM11

main69207-0C010-B2iUCK30,40,VCK30,40..ACB200208-200408

MD.GRAY,TRIM12

main69207-0C010-E0iUCK30,40,VCK30,40..ACB199902-200208

MD.OAK,TRIM4#

main69207-0C010-E1iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

69208KHANDLE SUB-ASSY, ACCESS PANEL INSIDE, LH

main69208-0C010-B0iUCK30,40,VCK30,40..ACB199902-200208

MOON MIST,TRIM10

main69208-0C010-B1iUCK30,40,VCK30,40..ACB199902-200208

MD.CHARCOAL,TRIM11

main69208-0C010-B2iUCK30,40,VCK30,40..ACB200208-200408

MD.GRAY,TRIM12

main69208-0C010-E0iUCK30,40,VCK30,40..ACB200208-200408

MD.OAK,TRIM4#

main69208-0C010-E1iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-34020-A0iUCK31,41200408

WHITE,056

main69230-34020-B1iUCK31,41..SR5200408

SILVER ME.,1D6

main69230-34020-B2iUCK31,41200310-200408

GRAY M.M.,1E3

main69230-34020-C0iUCK31,41200408

BLACK,202

main69230-34020-D1iUCK31,41200310-200408

DK. RED M.M.,3Q3

main69230-34020-E0iUCK31,41..SR5200310-200408

BEIGE M. M.,4Q2

main69230-34020-G0iUCK31,41200310-200408

DK.GREEN MC.,6Q7

main69230-34020-G1iUCK31,41..SR5200408

DK.GREEN M.M.,6T8

main69230-34020-J0iUCK31,41..SR5200310-200408

BLUE M.M.,8P9

main69230-34020-J1iUCK31,41..SR5200310-200408

DK.BLUE MC.,8Q0

main69230-34020-J2iUCK31,41200408

BLUE MC.,8M6

main69230-34020-J3iUCK31,41..SR5200408

DK.BLUE MM,8J7

69230JHANDLE ASSY, ACCESS PANEL, OUTSIDE RH

main69230-34010-A0iUCK30,40,VCK30,40..ACB200208-200408

WHITE,056

main69230-34010-B0iUCK30,40,VCK30,40..ACB..SR5199902-200008

BLUISH SILVER ME.,1A0

main69230-34010-B1iUCK30,40,VCK30,40..ACB199902-200208

GRAY M.M.OP.,1C7

main69230-34010-B2iGSK30,UCK30,40..SR5200408

SILVER ME.,1D6

main69230-34010-B3iGSK30,UCK30,40..ACB200408

GRAY M.M.,1E3

main69230-34010-C0iUCK30,40,VCK30,40..ACB200208-200408

BLACK,202

main69230-34010-D0iUCK30,40,VCK30,40..ACB199902-200208

RED MM,3K4

main69230-34010-D1iGSK30,UCK30,40..ACB200408

DK. RED M.M.,3Q3

main69230-34010-E0iUCK30,40,VCK30,40..ACB..SR5199902-200208

COPPER M.M.,4P6

main69230-34010-E1iUCK30,40,VCK30,40..ACB..SR5200208-200408

BEIGE M. M.,4Q2

main69230-34010-F0iUCK30,40,VCK30,40..ACB..SR5199902-200008

GOLD ME.,578

main69230-34010-G0iUCK30,40,VCK30,40..ACB199902-200208

DK. GREEN MC.,2FC ,6Q7

main69230-34010-G1iGSK30,UCK30,40..SR5200408

DK.GREEN M.M.,6T8

main69230-34010-J0iUCK30,40,VCK30,40..ACB..SR5199902-200208

DK.BLUE M.M.,8L7

main69230-34010-J1iUCK30,40,VCK30,40..ACB..SR5200208-200408

DK.BLUE MC.,8Q0

main69230-34010-J2iGSK30,UCK30,40..ACB200408

BLUE MC.,8M6

main69230-34010-J3iUCK30,40,VCK30,40..ACB..SR5200310-200408

BLUE M.M.,8P9

main69230-34010-J4iGSK30,UCK30,40..SR5200408

DK.BLUE MM,8J7

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-34020-A0iUCK31,41200408

WHITE,056

main69240-34020-B1iUCK31,41..SR5200310-200408

SILVER ME.,1D6

main69240-34020-B2iUCK31,41200310-200408

GRAY M.M.,1E3

main69240-34020-C0iUCK31,41200408

BLACK,202

main69240-34020-D1iUCK31,41200310-200408

DK. RED M.M.,3Q3

main69240-34020-E0iUCK31,41..SR5200310-200408

BEIGE M. M.,4Q2

main69240-34020-G0iUCK31,41200310-200408

DK.GREEN MC.,6Q7

main69240-34020-G1iUCK31,41..SR5200408

DK.GREEN M.M.,6T8

main69240-34020-J0iUCK31,41..SR5200310-200408

BLUE M.M.,8P9

main69240-34020-J1iUCK31,41..SR5200310-200408

DK.BLUE MC.,8Q0

main69240-34020-J2iUCK31,41200408

BLUE MC.,8M6

main69240-34020-J3iUCK31,41..SR5200408

DK.BLUE MM,8J7

69240JHANDLE ASSY, ACCESS PANEL, OUTSIDE LH

main69240-34010-A0iGSK30,UCK30,40..ACB200408

WHITE,056

main69240-34010-B0iUCK30,40,VCK30,40..ACB..SR5199902-200008

BLUISH SILVER ME.,1A0

main69240-34010-B1iUCK30,40,VCK30,40..ACB199902-200208

GRAY M.M.OP.,1C7

main69240-34010-B2iUCK30,40,VCK30,40..ACB..SR5200008-200208

SILVER ME.,1D6

main69240-34010-B3iGSK30,UCK30,40..ACB200408

GRAY M.M.,1E3

main69240-34010-C0iGSK30,UCK30,40..ACB200408

BLACK,202

main69240-34010-D0iUCK30,40,VCK30,40..ACB199902-200208

RED MM,3K4

main69240-34010-D1iGSK30,UCK30,40..ACB200408

DK. RED M.M.,3Q3

main69240-34010-E0iUCK30,40,VCK30,40..ACB..SR5199902-200208

COPPER M.M.,4P6

main69240-34010-E1iUCK30,40,VCK30,40..ACB..SR5200008-200208

BEIGE M. M.,4Q2

main69240-34010-F0iUCK30,40,VCK30,40..ACB..SR5199902-200008

GOLD ME.,578

main69240-34010-G0iUCK30,40,VCK30,40..ACB199902-200208

DK. GREEN MC.,2FC ,6Q7

main69240-34010-G1iGSK30,UCK30,40..SR5200408

DK.GREEN M.M.,6T8

main69240-34010-J0iUCK30,40,VCK30,40..ACB..SR5199902-200208

DK.BLUE M.M.,8L7

main69240-34010-J1iUCK30,40,VCK30,40..ACB..SR5200208-200408

DK.BLUE MC.,8Q0

main69240-34010-J2iGSK30,UCK30,40..ACB200408

BLUE MC.,8M6

main69240-34010-J3iUCK30,40,VCK30,40..ACB..SR5200310-200408

BLUE M.M.,8P9

main69240-34010-J4iGSK30,UCK30,40..SR5200408

DK.BLUE MM,8J7

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iUCK30,40,VCK30,40..ACB199902-200208

LH

main69293-12040iGSK30,UCK30,40..ACB200408

RH

69297BBEZEL, ACCESS PANEL INSIDE HANDLE, RH

main69297-0C010-B0iUCK30,40,VCK30,40..ACB199902-200208

MOON MIST,TRIM10

main69297-0C010-B1iUCK30,40,VCK30,40..ACB199902-200208

MD.CHARCOAL,TRIM11

main69297-0C010-B2iGSK30,UCK30,40..ACB200408

MD.GRAY,TRIM12

main69297-0C010-E0iUCK30,40,VCK30,40..ACB200208-200408

MD.OAK,TRIM4#

main69297-0C010-E1iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

69298BBEZEL, ACCESS PANEL INSIDE HANDLE, LH

main69298-0C010-B0iUCK30,40,VCK30,40..ACB199902-200208

MOON MIST,TRIM10

main69298-0C010-B1iUCK30,40,VCK30,40..ACB199902-200208

MD.CHARCOAL,TRIM11

main69298-0C010-B2iUCK30,40,VCK30,40..ACB200208-200408

MD.GRAY,TRIM12

main69298-0C010-E0iUCK30,40,VCK30,40..ACB199902-200208

MD.OAK,TRIM4#

main69298-0C010-E1iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

69350LLOCK ASSY, ACCESS PANEL, UPPER RH

main69350-0C010iUCK30,40,VCK30,40..ACB200208-200408

69360LLOCK ASSY, ACCESS PANEL, UPPER LH

main69360-0C010iUCK30,40,VCK30,40..ACB199902-200208

69380DLOCK ASSY, ACCESS PANEL, LOWER RH

main69380-34010iUCK30,40,VCK30,40..ACB199902-200208

69390DLOCK ASSY, ACCESS PANEL, LOWER LH

main69390-34010iUCK30,40,VCK30,40..ACB199902-200208

69410DPLATE ASSY, ACCESS PANEL LOCK STRIKER

main69410-0C010×2iUCK30,40,VCK30,40..ACB199902-200208

69415DCOVER, ACCESS PANEL LOCK STRIKER

main69415-34010×2iUCK30,40,VCK30,40..ACB199902-200208

69470ESTRIKER ASSY, ACCESS PANEL UPPER LOCK, RH

main69470-0C010iUCK30,40,VCK30,40..ACB199902-200208

69480ESTRIKER ASSY, ACCESS PANEL UPPER LOCK, LH

main69480-0C010iUCK30,40,VCK30,40..ACB199902-200208

69630DCONTROL ASSY, ACCESS PANEL LOCK REMOTE, RH

main69630-0C010iUCK30,40,VCK30,40..ACB199902-200208

69640DCONTROL ASSY, ACCESS PANEL LOCK REMOTE, LH

main69640-0C010iUCK30,40,VCK30,40..ACB199902-200208

69770CLEVER ASSY, ACCESS PANEL LOCK CANCEL, RH

main69770-0C010iUCK30,40,VCK30,40..ACB199902-200208

69780CLEVER ASSY, ACCESS PANEL LOCK CANCEL, LH

main69780-0C010iUCK30,40,VCK30,40..ACB199902-200208

9008010079

main90080-10079

9008011356

main90080-11356

9008014056

main90080-14056

9014880028

main90148-80028

90148A0005

main90148-A0005

9014960079

main90149-60079

9015950322

main90159-50322

9018905003

main90189-05003

9356855014

main93568-55014

30 parts on this diagram · 2 diagrams in section
