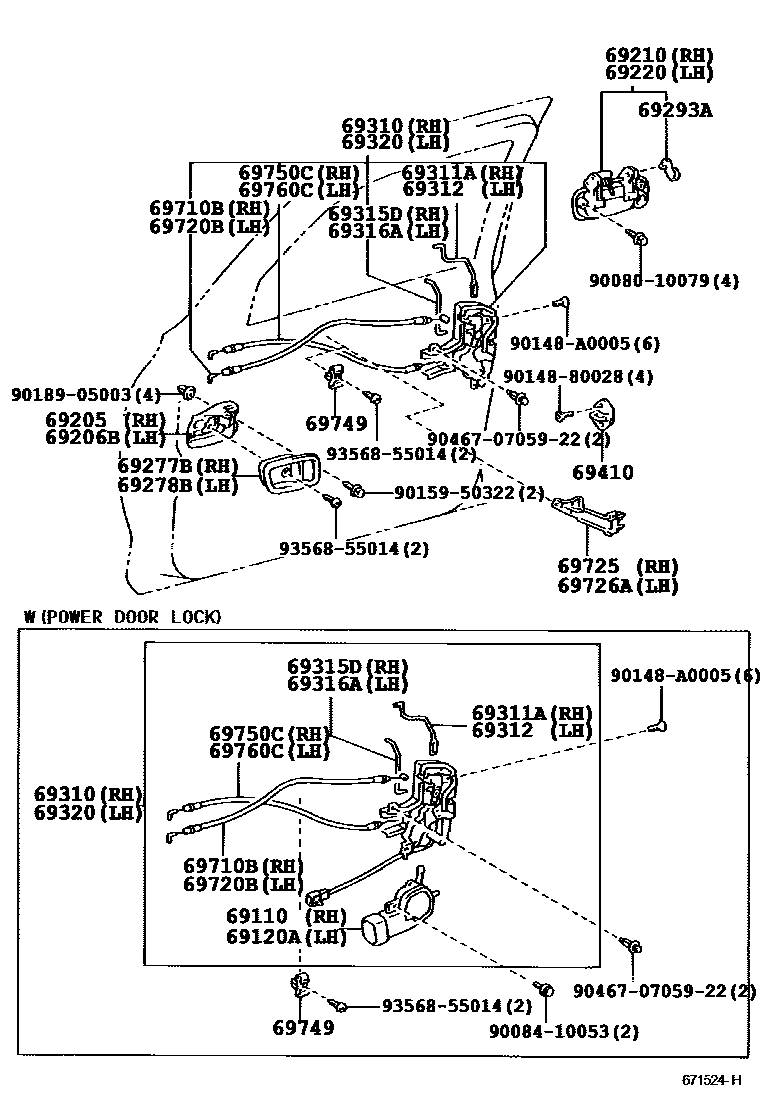

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-06010iUCK31,41200408

main69110-0C010iUCK30,40,VCK30,40..LIMD,SR5199902-200208

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-06010iUCK31,41200310-200408

main69120-0C010iUCK30,40,VCK30,40..LIMD,SR5199902-200208

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0C010-B0iUCK30,40,VCK30,40..LIMD,SR5199902-200208

MOON MIST,TRIM10

main69205-0C010-B1iUCK30,40,VCK30,40..LIMD,SR5200208-200408

MD.CHARCOAL,TRIM11

main69205-0C010-B2iUCK30,40,VCK30,40..LIMD,SR5200208-200408

MD.GRAY,TRIM12

main69205-0C010-E0iUCK30,40,VCK30,40199902-200208

MD.OAK,TRIM4#

main69205-0C010-E1iGSK30,UCK30,40200408

FAWN,TRIM42,43

main69205-0C030-B0iUCK31,41200408

MD.CHARCOAL,TRIM11

main69205-0C030-B1iUCK31,41200310-200408

MD.GRAY,TRIM12

main69205-0C030-E0iUCK31,41200310-200408

MD.OAK,TRIM4#

main69205-0C030-E1iUCK31,41200408

FAWN,TRIM42,43

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0C010-B0iUCK30,40,VCK30,40..LIMD,SR5199902-200208

MOON MIST,TRIM10

main69206-0C010-B1iUCK30,40,VCK30,40..LIMD,SR5199902-200208

MD.CHARCOAL,TRIM11

main69206-0C010-B2iGSK30,UCK30,40..ACB200408

MD.GRAY,TRIM12

main69206-0C010-E0iUCK30,40,VCK30,40199902-200208

MD.OAK,TRIM4#

main69206-0C010-E1iGSK30,UCK30,40200408

FAWN,TRIM42,43

main69206-0C030-B0iUCK31,41200310-200408

MD.CHARCOAL,TRIM11

main69206-0C030-B1iUCK31,41200310-200408

MD.GRAY,TRIM12

main69206-0C030-E0iUCK31,41200310-200408

MD.OAK,TRIM4#

main69206-0C030-E1iUCK31,41200408

FAWN,TRIM42,43

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-34030iUCK40,VCK30,40..RCB199902-200208

NO PAINT REQ.

main69210-34040-A0iUCK30,40,VCK30,40..LIMD,SR5200208-200408

WHITE,056

main69210-34040-B0iUCK30,40,VCK30,40..SR5199902-200008

BLUISH SILVER ME.,1A0

main69210-34040-B1iUCK30,40,VCK30,40..LIMD,SR5199902-200208

GRAY M.M.OP.,1C7

main69210-34040-B2iUCK30,40,VCK30,40..SR5200208-200408

SILVER ME.,1D6

main69210-34040-B3iUCK30,40,VCK30,40..LIMD,SR5200208-200408

GRAY M.M.,1E3

main69210-34040-C1iUCK30,40,VCK30,40..LIMD,SR5199902-200208

BLACK,202

main69210-34040-D0iUCK30,40,VCK30,40..LIMD,SR5199902-200208

RED MM,3K4

main69210-34040-D1iUCK30,40,VCK30,40..LIMD,SR5200208-200408

DK. RED M.M.,3Q3

main69210-34040-E0iUCK30,40,VCK30,40..SR5199902-200208

COPPER M.M.,4P6

main69210-34040-E1iGSK30,UCK30,40..SR5200408

BEIGE M. M.,4Q2

main69210-34040-F0iUCK30,40,VCK30,40..SR5199902-200008

GOLD ME.,578

main69210-34040-G0iUCK30,40,VCK30,40..LIMD,SR5199902-200208

DK. GREEN MC.,2FC ,6Q7

main69210-34040-G1iGSK30,UCK30,40..SR5200408

DK.GREEN M.M.,6T8

main69210-34040-J0iUCK30,40,VCK30,40..SR5199902-200208

DK.BLUE M.M.,8L7

main69210-34040-J1iUCK30,40,VCK30,40..SR5200208-200408

DK.BLUE MC.,8Q0

main69210-34040-J2iGSK30,UCK30,40..ACB200408

BLUE MC.,8M6

main69210-34040-J3iUCK30,40,VCK30,40..SR5200310-200408

BLUE M.M.,8P9

main69210-34040-J4iGSK30,UCK30,40..SR5200408

DK.BLUE MM,8J7

main69210-34050-A0iUCK31,41200310-200408

WHITE,056

main69210-34050-B1iUCK31,41..SR5200408

SILVER ME.,1D6

main69210-34050-B2iUCK31,41200310-200408

GRAY M.M.,1E3

main69210-34050-C0iUCK31,41200408

BLACK,202

main69210-34050-D1iUCK31,41200310-200408

DK. RED M.M.,3Q3

main69210-34050-E0iUCK31,41..SR5200310-200408

BEIGE M. M.,4Q2

main69210-34050-G0iUCK31,41200310-200408

DK.GREEN MC.,6Q7

main69210-34050-G1iUCK31,41..SR5200408

DK.GREEN M.M.,6T8

main69210-34050-J0iUCK31,41..SR5200310-200408

BLUE M.M.,8P9

main69210-34050-J1iUCK31,41..SR5200310-200408

DK.BLUE MC.,8Q0

main69210-34050-J2iUCK31,41200408

BLUE MC.,8M6

main69210-34050-J3iUCK31,41..SR5200408

DK.BLUE MM,8J7

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-34030iGSK30,UCK30,40..DLX200408-200608

BLACK

main69220-34040-A0iUCK30,40,VCK30,40..LIMD,SR5199902-200208

WHITE,056

main69220-34040-B0iUCK30,40,VCK30,40..SR5199902-200008

BLUISH SILVER ME.,1A0

main69220-34040-B1iUCK30,40,VCK30,40..LIMD,SR5199902-200208

GRAY M.M.OP.,1C7

main69220-34040-B2iUCK30,40,VCK30,40..SR5200208-200408

SILVER ME.,1D6

main69220-34040-B3iGSK30,UCK30,40..ACB200408

GRAY M.M.,1E3

main69220-34040-C1iUCK30,40,VCK30,40..LIMD,SR5199902-200208

BLACK,202

main69220-34040-D0iUCK30,40,VCK30,40..LIMD,SR5199902-200208

RED MM,3K4

main69220-34040-D1iUCK30,40,VCK30,40..LIMD,SR5200208-200408

DK. RED M.M.,3Q3

main69220-34040-E0iUCK30,40,VCK30,40..SR5199902-200208

COPPER M.M.,4P6

main69220-34040-E1iGSK30,UCK30,40..SR5200408

BEIGE M. M.,4Q2

main69220-34040-F0iUCK30,40,VCK30,40..SR5199902-200008

GOLD ME.,578

main69220-34040-G0iUCK30,40,VCK30,40..LIMD,SR5200208-200408

DK. GREEN MC.,6Q7

main69220-34040-G1iGSK30,UCK30,40..SR5200408

DK.GREEN M.M.,6T8

main69220-34040-J0iUCK30,40,VCK30,40..SR5199902-200208

DK.BLUE M.M.,8L7

main69220-34040-J1iUCK30,40,VCK30,40..SR5200208-200408

DK.BLUE MC.,8Q0

main69220-34040-J2iGSK30,UCK30,40..ACB200408

BLUE MC.,8M6

main69220-34040-J3iUCK30,40,VCK30,40..SR5200310-200408

BLUE M.M.,8P9

main69220-34040-J4iGSK30,UCK30,40..SR5200408

DK.BLUE MM,8J7

main69220-34050-A0iUCK31,41200310-200408

WHITE,056

main69220-34050-B1iUCK31,41..SR5200310-200408

SILVER ME.,1D6

main69220-34050-B2iUCK31,41200310-200408

GRAY M.M.,1E3

main69220-34050-C0iUCK31,41200408

BLACK,202

main69220-34050-D1iUCK31,41200408

DK. RED M.M.,3Q3

main69220-34050-E0iUCK31,41..SR5200310-200408

BEIGE M. M.,4Q2

main69220-34050-G0iUCK31,41200310-200408

DK.GREEN MC.,6Q7

main69220-34050-G1iUCK31,41..SR5200408

DK.GREEN M.M.,6T8

main69220-34050-J0iUCK31,41..SR5200310-200408

BLUE M.M.,8P9

main69220-34050-J1iUCK31,41..SR5200310-200408

DK.BLUE MC.,8Q0

main69220-34050-J2iUCK31,41200408

BLUE MC.,8M6

main69220-34050-J3iUCK31,41..SR5200408

DK.BLUE MM,8J7

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-0C010-B0iUCK30,40,VCK30,40..LIMD,SR5199902-200208

MOON MIST,TRIM10

main69277-0C010-B1iUCK30,40,VCK30,40..LIMD,SR5199902-200208

MD.CHARCOAL,TRIM11

main69277-0C010-B2iGSK30,UCK30,40..ACB200408

MD.GRAY,TRIM12

main69277-0C010-E0iUCK30,40,VCK30,40200208-200408

MD.OAK,TRIM4#

main69277-0C010-E1iGSK30,UCK30,40200408

FAWN,TRIM42,43

main69277-AC010-B1iUCK31,41200310-200408

MD.CHARCOAL,TRIM11

main69277-AC010-B2iUCK31,41200408

MD.GRAY,TRIM12

main69277-AC010-E0iUCK31,41200408

FAWN,TRIM42,43

main69277-AC010-E1iUCK31,41200310-200408

MD.OAK,TRIM4#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-0C010-B0iUCK30,40,VCK30,40..LIMD,SR5199902-200208

MOON MIST,TRIM10

main69278-0C010-B1iGSK30,UCK30,40..ACB200408

MD.CHARCOAL,TRIM11

main69278-0C010-B2iUCK30,40,VCK30,40..LIMD,SR5200208-200408

MD.GRAY,TRIM12

main69278-0C010-E0iUCK30,40,VCK30,40199902-200208

MD.OAK,TRIM4#

main69278-0C010-E1iGSK30,UCK30,40200408

FAWN,TRIM42,43

main69278-AC010-B1iUCK31,41200310-200408

MD.CHARCOAL,TRIM11

main69278-AC010-B2iUCK31,41200408

MD.GRAY,TRIM12

main69278-AC010-E0iUCK31,41200408

FAWN,TRIM42,43

main69278-AC010-E1iUCK31,41200310-200408

MD.OAK,TRIM4#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iUCK3#,4#,VCK30,40200208-200408

LH

main69293-12040iGSK30,UCK3#,4#200408

RH

69310LOCK ASSY, FRONT DOOR, RH

main69030-0C010iUCK30;GSK30..SR5;UCK40..USA;UCK40..ACB..CND200408

W(POWER DOOR LOCK)

main69030-0C021iUCK31,41200408

main69310-0C010iUCK30,40,VCK30,40..DLX,SR5200208-200408

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0C010iUCK30,40,VCK30,40199902-200208

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0C010iUCK30,40,VCK30,40199902-200208

69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH

main69315-0C010iUCK30,40,VCK30,40199902-200208

main69315-0C020iUCK31,41200310-200408

69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH

main69316-0C010iUCK30,40,VCK30,40199902-200208

main69316-0C020iUCK31,41200408

69320LOCK ASSY, FRONT DOOR, LH

main69040-0C010iUCK30,40,VCK30,40..LIMD,SR5200208-200408

W(POWER DOOR LOCK)

main69040-0C020iUCK31,41200408

main69320-0C010iUCK30,40,VCK30,40..DLX,SR5199902-200208

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0C010×2iUCK30,40,VCK30,40200208-200408

main69410-0C020×2iUCK31,41200408

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0C010iUCK30,40,VCK30,40200208-200408

main69710-0C020iUCK31,41200408

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0C010iUCK30,40,VCK30,40200208-200408

main69720-0C010iUCK31,41200408

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-0C010iGSK30,UCK30,40200408

main69725-0C020iUCK31,41200408

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-0C010iUCK30,40,VCK30,40199902-200208

main69726-0C020iUCK31,41200310-200408

69749CLAMP, FRONT DOOR LOCK LINK

main69749-0C010×2iGSK30,UCK30,40200408

main69749-32040×2iUCK31,41200408

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0C010iGSK30,UCK30,40200408

main69750-0C021iUCK31,41200310-200408

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-0C010iUCK30,40,VCK30,40199902-200208

main69760-0C020iUCK31,41200310-200408

9008010079

main90080-10079

9008410053

main90084-10053

9014880028

main90148-80028

90148A0005

main90148-A0005

9015950322

main90159-50322

9018905003

main90189-05003

904670705922

main90467-0705922

9356855014

main93568-55014

31 parts on this diagram · 2 diagrams in section
