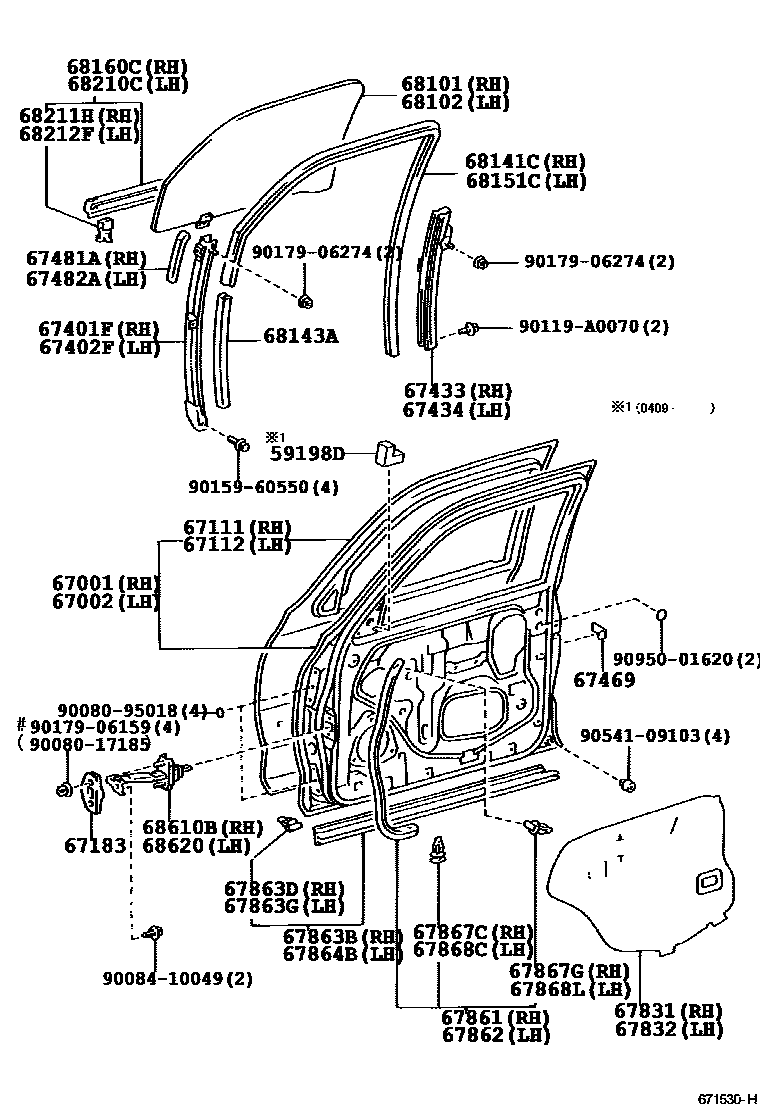

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1TRIM CODE 0004 1TRIM CODE 0005 1TRIM CODE 0006 1DOOR PANEL 0007 1DOOR TRIM

59198DSEAL, NOISE SHUTTER

main59198-0C010iGSK30,UCK30,40200409

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0C030iUCK30,40,VCK30,40..LIMD,SR5199902-200208

W(SIDE PROTECTION MOULDING)

main67001-0C030iGSK30,UCK30,40..ACB200208-200408

main67001-0C061iUCK31,41200310-200408

main67001-0C070iUCK40,VCK40..RCB..USA200001-200208

W(CHROME PLATED MOULDING)

main67001-0C070iUCK40..RCB..USA200208-200408

main67001-0C080iVCK40..RCB..USA;VCK40..4HC..CND;UCK40,VCK30..RCB;UCK30,40,VCK30..SR5..CND199902-200608

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0C030iUCK30,40,VCK30,40..ACB200208-200408

main67002-0C030iUCK30,40,VCK30,40..LIMD,SR5199902-200208

W(SIDE PROTECTION MOULDING)

main67002-0C061iUCK31,41200310-200408

main67002-0C070iUCK40..RCB..USA200208-200408

main67002-0C070iUCK40,VCK40..RCB..USA200001-200208

W(CHROME PLATED MOULDING)

main67002-0C080iGSK30,UCK30,40..DLX199902-200608

67111PANEL, FRONT DOOR, OUTER RH

main67111-0C010iGSK30,UCK30,40..ACB200408

main67111-0C010iUCK30,40,VCK30,40..LIMD,SR5199902-200408

W(SIDE PROTECTION MOULDING)

main67111-0C020iUCK40,VCK30..DLX199902-200608

main67111-0C030iUCK31,41200310-200408

67112PANEL, FRONT DOOR, OUTER LH

main67112-0C010iUCK30,40,VCK30,40..LIMD,SR5199902-200408

W(SIDE PROTECTION MOULDING)

main67112-0C010iGSK30,UCK30,40..ACB200408

main67112-0C020iUCK40,VCK30..DLX199902-200608

main67112-0C030iUCK31,41200310-200408

67183RETAINER, FRONT DOOR LOWER HINGE, RH

main67183-34010iGSK30;UCK30,40..USA;UCK40..DLX..CND199904-200408

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0C010iUCK30,40,VCK30,40199902-200408

main67401-0C020iUCK31,41200310-200408

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0C010iUCK30,40,VCK30,40199902-200408

main67402-0C020iUCK31,41200310-200408

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67403-0C010iUCK30,40,VCK30,40199902-200408

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67404-0C010iUCK30,40,VCK30,40199902-200408

67469PROTECTOR, FRONT DOOR GUIDE

main67469-0C010iUCK30,40,VCK30,40..ACB199902-200408

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-0C010iGSK30,UCK3#,4#199902-200408

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-0C010iUCK30,40,VCK30,40199902-200408

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67801-0C010iUCK31,41200310-200408

main67831-0C010iUCK30,40,VCK30,40199902-200408

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67802-0C010iUCK31,41200310-200408

main67831-0C010iUCK30,40,VCK30,40199902-200408

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0C010iGSK30,UCK30,40199902-200408

main67861-0C020iUCK31,41200310-200408

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0C010iGSK30,UCK30,40199902-200408

main67862-0C020iUCK31,41200310-200408

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-0C010iUCK30,40,VCK30,40199902-200408

main67863-0C020iUCK31,41200310-200408

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-0C010iGSK30,UCK30,40199902-200408

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-0C010iUCK30,40,VCK30,40199902-200408

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-0C020iUCK31,41200310-200408

main67864-0C010iUCK30,40,VCK30,40199902-200408

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iUCK30,40,VCK30,40199902-200408

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-0C010iUCK30,40,VCK30,40199902-200408

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iUCK30,40,VCK30,40199902-200408

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-0C010iUCK30,40,VCK30,40199902-200408

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0C010iUCK30,40,VCK30,40199902-200408

*TT,T=5.0,GREEN

main68101-0C020iUCK31,41200310-200408

*TT,T=5.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0C010iUCK30,40,VCK30,40199902-200408

*TT,T=5.0,GREEN

main68102-0C020iUCK31,41200310-200408

*TT,T=5.0,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-0C010iUCK30,40,VCK30,40199902-200408

main68141-0C020iUCK31,41200310-200408

68143ARUN, FRONT DOOR GLASS, NO.2

main68143-0C010iGSK30,UCK30,40199902-200408

main68143-0C020iUCK31,41200310-200408

68151CRUN, FRONT DOOR GLASS, LH

main68151-0C010iGSK30,UCK30,40199902-200408

main68151-0C020iUCK31,41200310-200408

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-0C010iUCK30,40,VCK30,40199902-200408

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-0C010iUCK30,40,VCK30,40199902-200408

68211HCLIP, DOOR GLASS WEATHERSTRIP, RH

main68212-0C010iUCK30,40,VCK30,40199902-200408

68212FCLIP, DOOR GLASS WEATHERSTRIP, LH

main68212-0C010iUCK30,40,VCK30,40199902-200408

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0C010iUCK30,40,VCK30,40199902-200008

main68610-0C011iUCK30,40,VCK30,40200008-200408

68620CHECK ASSY, FRONT DOOR, LH

main68620-0C010iUCK30,40,VCK30,40199902-200008

main68620-0C011iUCK30,40,VCK30,40200008-200408

9008017185

main90080-17185

9008095018

main90080-95018

9008410049

main90084-10049

90119A0070

main90119-A0070

9015960550

main90159-60550

9017906159

main90179-06159

9017906274

main90179-06274

9054109103

main90541-09103

9095001620

main90950-01620

45 parts on this diagram · 7 diagrams in section
