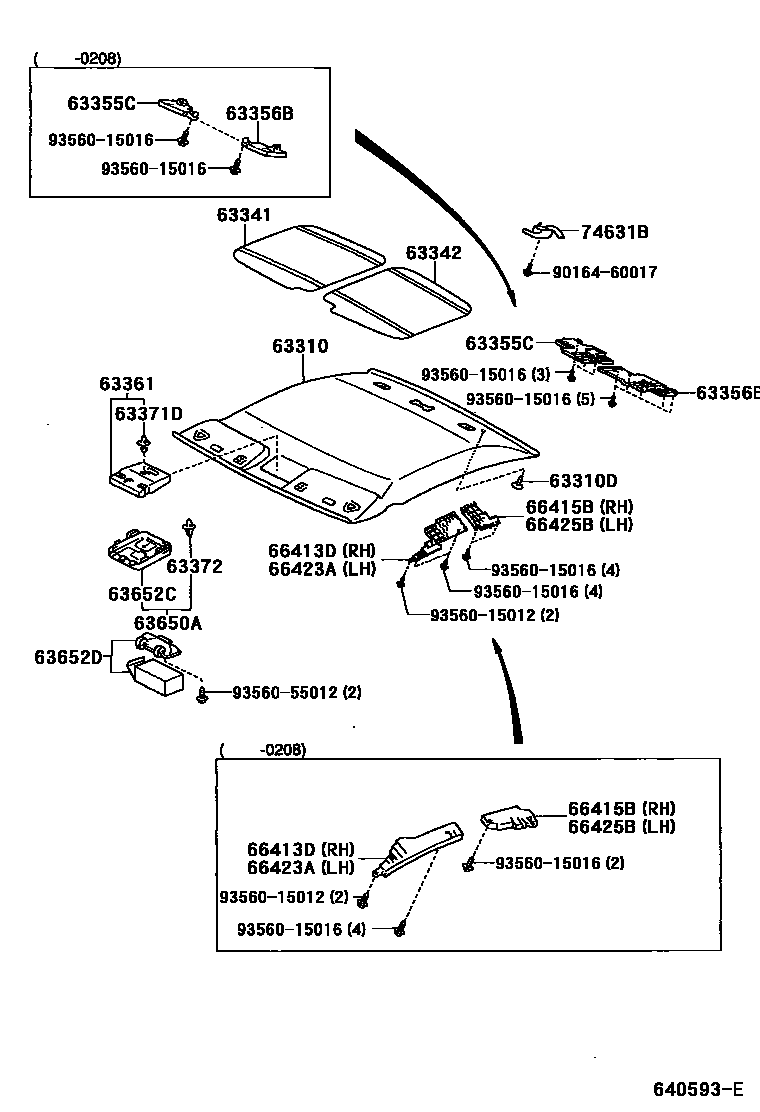

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
main63310-0C010-B0iUCK30..SR5;VCK30,40..ACB;UCK40..ACB..USA;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208
W(MAP LAMP),MOON MIST,TRIM10
MEDIUM CHARCOAL,TRIM11
main63310-0C010-E0iUCK30..SR5;VCK30,40..ACB;UCK40..ACB..USA;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208
W(MAP LAMP),MEDIUM OAK,TRIM4#
MOON MIST,TRIM10
MEDIUM CHARCOAL,TRIM11
MEDIUM OAK,TRIM4#
W(MAP LAMP),MOON MIST,TRIM10
W(MAP LAMP),MEDIUM CHARCOAL,TRIM11
W(MAP LAMP),MEDIUM OAK,TRIM4#
MOON MIST,TRIM10
MEDIUM CHARCOAL,TRIM11
MEDIUM OAK,TRIM4#
W(MAP LAMP),MEDIUM CHARCOAL-EMPIRE,TRIM11
W(MAP LAMP),MED. GRAY,TRIM12
W(MAP LAMP),MEDIUM OAK-EMPIRE,TRIM4#
W(MAP LAMP),FAWN,TRIM42,43
MEDIUM CHARCOAL-EMPI,TRIM11
MED. GRAY,TRIM12
MEDIUM OAK-EMPIRE,TRIM4#
FAWN,TRIM42,43
W(MAP LAMP),MEDIUM CHARCOAL-EMPI,TRIM11
W(MAP LAMP),MED. GRAY,TRIM12
W(MAP LAMP),MEDIUM OAK-EMPIRE,TRIM4#
W(MAP LAMP),FAWN,TRIM42,43
MEDIUM CHARCOAL-EMPI,TRIM11
MED. GRAY,TRIM12
MEDIUM OAK-EMPIRE,TRIM4#
FAWN,TRIM42,43
MEDIUM GRAY,TRIM12
MEDIUM CHARCOAL-013T,TRIM11
MEDIUM OAK-013T,TRIM4#
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MEDIUM GRAY,TRIM12
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MEDIUM CHARCOAL-013T,TRIM11
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MEDIUM OAK-013T,TRIM4#
W(MOON ROOF),MEDIUM GRAY,TRIM12
W(MOON ROOF),MEDIUM CHARCOAL-013T,TRIM11
W(MOON ROOF),MEDIUM OAK-013T,TRIM4#
W(MOON ROOF),FAWN,TRIM42,43
W(MOON ROOF) & W(REAR SEAT AUDIO OR REAR SEAT ENTERTAINMENT),MEDIUM GRAY,TRIM12
W(MOON ROOF) & W(REAR SEAT AUDIO OR REAR SEAT ENTERTAINMENT),MEDIUM CHARCOAL-013T,TRIM11
W(MOON ROOF) & W(REAR SEAT AUDIO OR REAR SEAT ENTERTAINMENT),MEDIUM OAK-013T,TRIM4#
W(MOON ROOF) & W(REAR SEAT AUDIO OR REAR SEAT ENTERTAINMENT),FAWN,TRIM42,43
MEDIUM GRAY,TRIM12
MEDIUM CHARCOAL-013T,TRIM11
FAWN,TRIM4#
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MEDIUM GRAY,TRIM12
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MEDIUM CHARCOAL-013T,TRIM11
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),FAWN,TRIM4#
63310DCLIP, ROOF HEADLINING
MD.GRAY,TRIM12
MD.CHARCOAL,TRIM11
MD.OAK,TRIM4#
FAWN,TRIM42,43
MOON MIST,TRIM10
MD.CHARCOAL,TRIM11
MD.OAK,TRIM4#
MD.CHARCOAL,TRIM11
MD.GRAY,TRIM12
MD.OAK,TRIM4#
FAWN,TRIM42,43
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63355CPAD, ROOF HEADLINING, RH
63356BPAD, ROOF HEADLINING, LH
63361SUPPORT, ROOF HEADLINING, NO.1
63371DRETAINER, ROOF HEADLINING SUPPORT
63372RETAINER, HEADLINING SUPPORT
63650ABOX ASSY, ROOF CONSOLE
MOON MIST,TRIM10
MD.CHARCOAL,TRIM11
MD.GRAY,TRIM12
MD.OAK,TRIM4#
FAWN,TRIM42,43
MD.GRAY,TRIM12
MD.CHARCOAL,TRIM11
MD.OAK,TRIM4#
MD.GRAY,TRIM12
MD.CHARCOAL,TRIM11
FAWN,TRIM4#
W(ACCESSORY METER),MD.GRAY,TRIM12
W(ACCESSORY METER),MD.CHARCOAL,TRIM11
W(ACCESSORY METER),MD.OAK,TRIM4#
W(ACCESSORY METER),MD.GRAY,TRIM12
W(ACCESSORY METER),MD.CHARCOAL,TRIM11
W(ACCESSORY METER),FAWN,TRIM4#
W(ACCESSORY METER & MOON ROOF),MD.GRAY,TRIM12
W(ACCESSORY METER & MOON ROOF),MD.CHARCOAL,TRIM11
W(ACCESSORY METER & MOON ROOF),MD.OAK,TRIM4#
W(ACCESSORY METER & MOON ROOF),MD.GRAY,TRIM12
W(ACCESSORY METER & MOON ROOF),MD.CHARCOAL,TRIM11
W(ACCESSORY METER & MOON ROOF),FAWN,TRIM4#
W(MOON ROOF),MD.GRAY,TRIM12
W(MOON ROOF),MD.CHARCOAL,TRIM11
W(MOON ROOF),MD.OAK,TRIM4#
W(MOON ROOF),MD.GRAY,TRIM12
W(MOON ROOF),MD.CHARCOAL,TRIM11
W(MOON ROOF),FAWN,TRIM4#
63652CCOVER, ROOF CONSOLE BOX
MD.GRAY,TRIM12
MOON MIST,TRIM10
MD.CHARCOAL,TRIM11
MD.OAK,TRIM4#
FAWN,TRIM42,43
63652DCOVER, ROOF CONSOLE BOX
MD.GRAY,TRIM12
MOON MIST,TRIM10
MD.CHARCOAL,TRIM11
MD.OAK,TRIM4#
FAWN,TRIM42,43
66413DSPACER, SIDE RAIL
66415BSPACER, SIDE RAIL, REAR NO.2 RH
66423SPACER, SIDE RAIL, FRONT LH
W(SRS CURTAIN SHIELD AIR BAG)
66423ASPACER, SIDE RAIL, FRONT LH
66425BSPACER, SIDE RAIL, REAR NO.2 LH
74631BHOOK, COAT
MOON MIST,TRIM10
MD.CHARCOAL,TRIM11
MD.GRAY,TRIM12
MD.OAK,TRIM4#
FAWN,TRIM42,43
9016460017
main90164-60017
9356015012
main93560-15012
9356015016
main93560-15016
9356055012
main93560-55012
22 parts on this diagram · 10 diagrams in section
