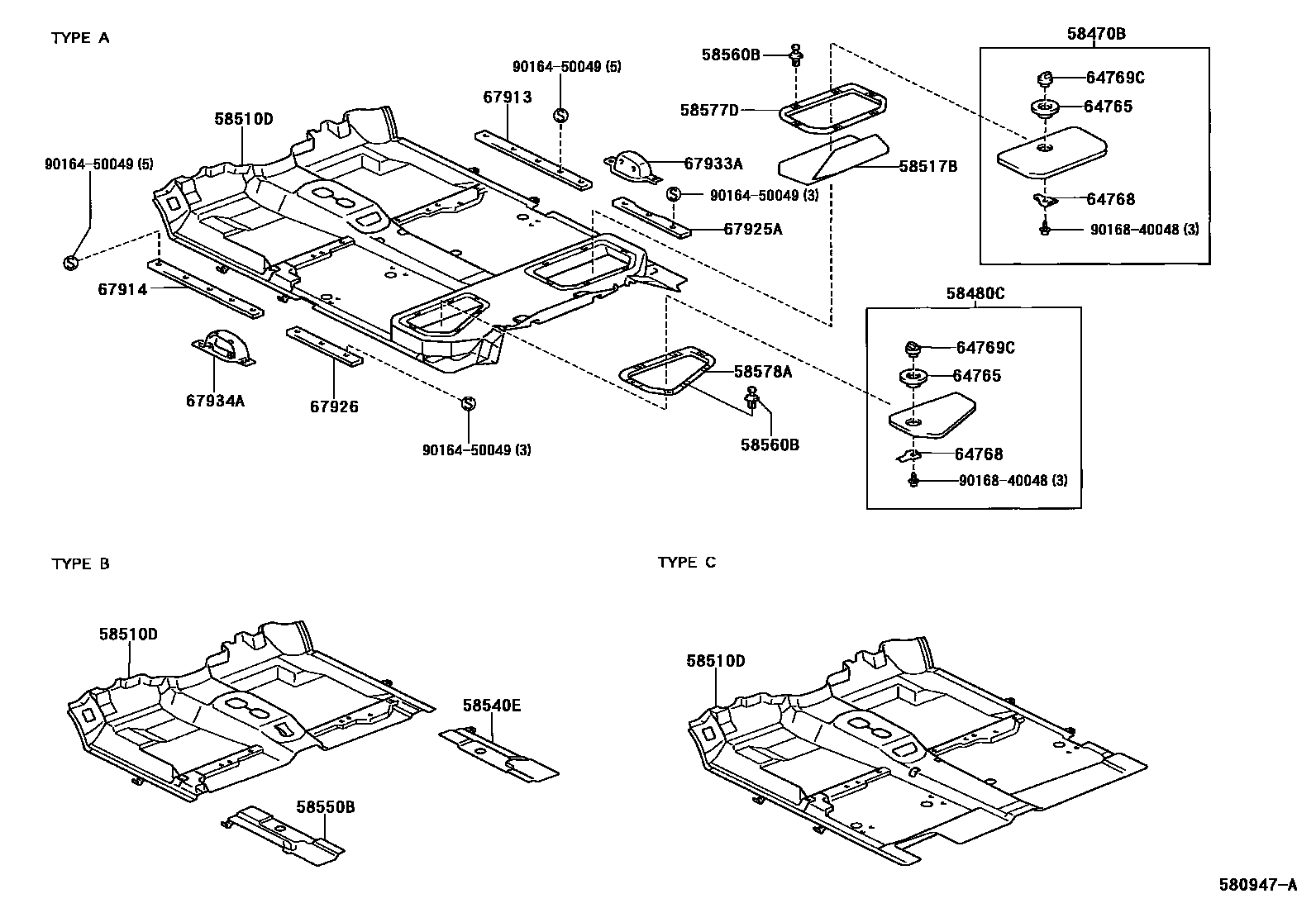

FLOOR MAT & SILENCER PAD

58470BCOVER ASSY, SEAT FLOOR SERVICE HOLE, RH

main58470-0C010-B0i199902-200108

MEDIUM MOON MIST,TRIM10

main58470-0C010-B2i199902-200108

DARK CHARCOAL,TRIM11

main58470-0C010-E1i199902-200108

OAK,TRIM40

main58470-0C011-B0i200108-200208

MEDIUM MOON MIST,TRIM10

main58470-0C011-B2i200108-200208

DARK CHARCOAL,TRIM11

main58470-0C011-B3i200208-200408

DARK CHARCOAL,TRIM11

main58470-0C011-B4i200208-200408

MED. GRAY,TRIM12

main58470-0C011-B5i200408

DARK CHARCOAL,TRIM11

main58470-0C011-B6i200408

MED. GRAY,TRIM12

main58470-0C011-B7i200408

MD.GRAY,TRIM12

main58470-0C011-B9i200408

MD.CHARCOAL,TRIM11

main58470-0C011-E1i200108-200208

OAK,TRIM4#

main58470-0C011-E2i200208-200408

OAK,TRIM4#

main58470-0C011-E4i200408

FAWN,TRIM43

main58470-0C030-B2i200310-200408

DARK CHARCOAL,TRIM11

main58470-0C030-B3i200310-200408

DARK GRAY,TRIM12

main58470-0C030-B4i200408

DARK GRAY,TRIM12

main58470-0C030-B6i200408

MD.CHARCOAL,TRIM11

main58470-0C030-E1i200310-200408

OAK,TRIM4#

main58470-0C030-E2i200408

SANDALWOOD,TRIM42,43

58480CCOVER ASSY, SEAT FLOOR SERVICE HOLE, LH

main58480-0C010-B0i199902-200108

MEDIUM MOON MIST,TRIM10

main58480-0C010-B2i199902-200108

DARK CHARCOAL,TRIM11

main58480-0C010-E1i199902-200108

OAK,TRIM40

main58480-0C011-B0i200108-200208

MEDIUM MOON MIST,TRIM10

main58480-0C011-B2i200108-200208

DARK CHARCOAL,TRIM11

main58480-0C011-B3i200208-200408

DARK CHARCOAL,TRIM11

main58480-0C011-B4i200208-200408

MED. GRAY,TRIM12

main58480-0C011-B5i200408

DARK CHARCOAL,TRIM11

main58480-0C011-B6i200408

MED. GRAY,TRIM12

main58480-0C011-B7i200408

MD.GRAY,TRIM12

main58480-0C011-B9i200408

MD.CHARCOAL,TRIM11

main58480-0C011-E1i200108-200208

OAK,TRIM4#

main58480-0C011-E2i200208-200408

OAK,TRIM4#

main58480-0C011-E4i200408

FAWN,TRIM43

main58480-0C020-B4i200310-200408

DARK CHARCOAL,TRIM11

main58480-0C020-B5i200310-200408

DARK GRAY,TRIM12

main58480-0C020-B6i200408

DARK GRAY,TRIM12

main58480-0C020-B8i200408

MD.CHARCOAL,TRIM11

main58480-0C020-E2i200310-200408

OAK,TRIM4#

main58480-0C020-E3i200408

SANDALWOOD,TRIM42,43

58510DCARPET ASSY, FLOOR, FRONT

main58510-0C010-B0i199902-200108

TYPE A:REFER TO ILLUSTRATION,MEDIUM MOON MIST,TRIM10

main58510-0C010-B2i199902-200108

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C010-E1i199902-200108

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C011-B0i200108-200208

TYPE A:REFER TO ILLUSTRATION,MEDIUM MOON MIST,TRIM10

main58510-0C011-B2i200108-200208

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C011-E1i200108-200208

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C012-B3i200208-200309

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C012-B4i200208-200309

TYPE A:REFER TO ILLUSTRATION,MED. GRAY,TRIM12

main58510-0C012-E2i200208-200309

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C013-B3i200309-200408

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C013-B4i200309-200408

TYPE A:REFER TO ILLUSTRATION,MED. GRAY,TRIM12

main58510-0C013-E2i200309-200408

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C020-B0i199902-200108

TYPE A:REFER TO ILLUSTRATION,MEDIUM MOON MIST,TRIM10

main58510-0C020-B2i199902-200108

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C020-E1i199902-200108

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C021-B0i200108-200208

TYPE A:REFER TO ILLUSTRATION,MEDIUM MOON MIST,TRIM10

main58510-0C021-B2i200108-200208

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C021-E1i200108-200208

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C022-B3i200208-200309

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C022-B4i200208-200309

TYPE A:REFER TO ILLUSTRATION,MED. GRAY,TRIM12

main58510-0C022-E2i200208-200309

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C023-B3i200309-200408

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C023-B4i200309-200408

TYPE A:REFER TO ILLUSTRATION,MED. GRAY,TRIM12

main58510-0C023-E2i200309-200408

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C030-B0i199902-200008

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MEDIUM MOON MIST,TRIM10

main58510-0C030-B2i199902-200008

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C030-E1i199902-200008

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C031-B0i200008-200108

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MEDIUM MOON MIST,TRIM10

main58510-0C031-B2i200008-200108

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C031-E1i200008-200108

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C032-B0i200108-200208

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MEDIUM MOON MIST,TRIM10

main58510-0C032-B2i200108-200208

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C032-E1i200108-200208

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C033-B3i200208-200309

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C033-B4i200208-200309

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MED. GRAY,TRIM12

main58510-0C033-E2i200208-200309

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C034-B3i200309-200408

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C034-B4i200309-200408

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MED. GRAY,TRIM12

main58510-0C034-E2i200309-200408

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C040-B0i199902-200008

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MEDIUM MOON MIST,TRIM10

main58510-0C040-B2i199902-200008

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C040-E1i199902-200008

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C041-B0i200008-200108

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MEDIUM MOON MIST,TRIM10

main58510-0C041-B2i200008-200108

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C041-E1i200008-200108

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C042-B0i200108-200208

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MEDIUM MOON MIST,TRIM10

main58510-0C042-B2i200108-200208

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C042-E1i200108-200208

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C043-B3i200208-200309

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C043-B4i200208-200309

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MED. GRAY,TRIM12

main58510-0C043-E2i200208-200309

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C044-B3i200309-200408

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C044-B4i200309-200408

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MED. GRAY,TRIM12

main58510-0C044-E2i200309-200408

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C050-B0i199902-200108

TYPE A:REFER TO ILLUSTRATION,MEDIUM MOON MIST,TRIM10

main58510-0C050-B2i199902-200108

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C050-E1i199902-200108

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C051-B0i200108-200208

TYPE A:REFER TO ILLUSTRATION,MEDIUM MOON MIST,TRIM10

main58510-0C051-B2i200108-200208

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C051-E1i200108-200208

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C052-B3i200208-200309

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C052-B4i200208-200309

TYPE A:REFER TO ILLUSTRATION,MED. GRAY,TRIM12

main58510-0C052-E2i200208-200309

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C053-B3i200309-200408

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C053-B4i200309-200408

TYPE A:REFER TO ILLUSTRATION,MED. GRAY,TRIM12

main58510-0C053-E2i200309-200408

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C060-E0i199902-200008

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C100-B0i199902-200208

TYPE C:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C100-B1i199902-200208

TYPE C:REFER TO ILLUSTRATION,MEDIUM MOON MIST,TRIM10

main58510-0C100-E1i199902-200208

TYPE C:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C120-E0i199902-200202

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C121-E0i200208-200308

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C122-E0i200308-200408

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C130-B2i199902-200208

TYPE C:REFER TO ILLUSTRATION & W(FRONT BENCH SEAT),DARK CHARCOAL,TRIM11

main58510-0C130-B3i199902-200208

TYPE C:REFER TO ILLUSTRATION & W(FRONT BENCH SEAT),MEDIUM MOON MIST,TRIM10

main58510-0C130-E1i199902-200208

TYPE C:REFER TO ILLUSTRATION & W(FRONT BENCH SEAT),OAK,TRIM4#

main58510-0C140-B2i199902-200108

TYPE C:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C140-B3i199902-200108

TYPE C:REFER TO ILLUSTRATION,MEDIUM MOON MIST,TRIM10

main58510-0C140-E1i199902-200108

TYPE C:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C150-B2i199902-200008

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C150-B3i199902-200008

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MEDIUM MOON MIST,TRIM10

main58510-0C150-E1i199902-200008

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C151-B2i200008-200208

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C151-B3i200008-200208

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MEDIUM MOON MIST,TRIM10

main58510-0C151-E1i200008-200208

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C160-E0i199902-200202

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C161-E0i200202-200208

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C162-E0i200308-200408

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C170-E1i199902-200208

TYPE C:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C180-B2i199902-200008

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C180-B3i199902-200008

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MEDIUM MOON MIST,TRIM10

main58510-0C180-E1i199902-200008

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C181-B2i200008-200208

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C181-B3i200008-200208

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MEDIUM MOON MIST,TRIM10

main58510-0C181-E1i200008-200208

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C182-B4i200208-200308

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C182-B5i200208-200308

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),MED. GRAY,TRIM12

main58510-0C182-E2i200208-200308

TYPE C:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),OAK,TRIM4#

main58510-0C183-B4i200308-200408

TYPE C:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C183-B5i200308-200408

TYPE C:REFER TO ILLUSTRATION,MED. GRAY,TRIM12

main58510-0C183-E2i200308-200408

TYPE C:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C190-B2i199902-200108

TYPE C:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C190-B3i199902-200108

TYPE C:REFER TO ILLUSTRATION,MEDIUM MOON MIST,TRIM10

main58510-0C190-E1i199902-200108

TYPE C:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C200-B0i200208-200309

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C200-B1i200208-200309

TYPE A:REFER TO ILLUSTRATION,MED. GRAY,TRIM12

main58510-0C200-E0i200208-200309

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C201-B0i200309-200408

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C201-B1i200309-200408

TYPE A:REFER TO ILLUSTRATION,MED. GRAY,TRIM12

main58510-0C201-E0i200309-200408

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58510-0C220-B2i200310-200408

DARK CHARCOAL,TRIM11

main58510-0C220-B3i200310-200408

DARK GRAY,TRIM12

main58510-0C220-E2i200310-200408

OAK,TRIM4#

main58510-0C240-E0i200408-200508

TYPE C:REFER TO ILLUSTRATION,SANDALWOOD,TRIM42,43

main58510-0C250-E0i200408-200508

TYPE C:REFER TO ILLUSTRATION,SANDALWOOD,TRIM42,43

main58510-0C260-B2i200408

TYPE A:REFER TO ILLUSTRATION,DARK GRAY,TRIM12

main58510-0C260-B4i200408

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C260-E1i200408

TYPE A:REFER TO ILLUSTRATION,SANDALWOOD,TRIM4#

main58510-0C270-B2i200408

TYPE A:REFER TO ILLUSTRATION,DARK GRAY,TRIM12

main58510-0C270-B4i200408

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C270-E1i200408

TYPE A:REFER TO ILLUSTRATION,SANDALWOOD,TRIM4#

main58510-0C280-B2i200408

TYPE A:REFER TO ILLUSTRATION,DARK GRAY,TRIM12

main58510-0C280-B4i200408

TYPE A:REFER TO ILLUSTRATION,DARK CHARCOAL,TRIM11

main58510-0C280-E1i200408

TYPE A:REFER TO ILLUSTRATION,SANDALWOOD,TRIM43

main58510-0C290-B2i200408

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK GRAY,TRIM12

main58510-0C290-B4i200408

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C290-E1i200408

TYPE A:REFER TO ILLUSTRATION & W(6:4 SPRIT FRONT SEAT),SANDALWOOD,TRIM4#

main58510-0C300-B2i200408

W(6:4 SPLIT FRONT SEAT),DARK GRAY,TRIM12

main58510-0C300-B4i200408

W(6:4 SPLIT FRONT SEAT),DARK CHARCOAL,TRIM11

main58510-0C300-E1i200408

W(6:4 SPLIT FRONT SEAT),SANDALWOOD,TRIM42,43

main58510-0C310-B2i200408

DARK GRAY,TRIM12

main58510-0C310-B4i200408

DARK CHARCOAL,TRIM11

main58510-0C310-E1i200408

SANDALWOOD,TRIM42,43

main58510-0C320-E0i200508-200608

SANDALWOOD,TRIM4#

main58510-0C330-E0i200508-200608

SANDALWOOD,TRIM4#

58517BCARPET, REAR FLOOR

main58571-0C010i199902-200208

main58571-0C020i200310-200408

58540EMAT ASSY, FLOOR, REAR RH

main58540-0C010-E0i199902-200208

OAK,TRIM4#

58550BMAT ASSY, FLOOR, REAR LH

main58550-0C010-E0i199902-200208

OAK,TRIM4#

58560BCLIP(FOR FLOOR CARPET, REAR)

main90080-46294×13i199902-200108

main90467-06020-B3×7i200208-200408

DK.CHARCOAL,TRIM11

main90467-06020-B6×7i200208-200408

DK.GRAY,TRIM12

main90467-06020-B7×7i200108-200208

MD.MOON MIST,TRIM10

main90467-06020-C0×19i200408

BLACK,TRIM11,12,42,43

main90467-06020-E4×7i200108-200208

OAK,TRIM4#

58577DPLATE, REAR FLOOR MAT SUPPORT SIDE, RH

main58577-0C010i199902-200108

58578APLATE, REAR FLOOR MAT SUPPORT SIDE, LH

main58578-0C010i199902-200108

64765BEZEL, JACK COVER, UPPER

main64765-04010-B1×2i199902-200108

MD.MOON MIST,TRIM10

main64765-04010-B2×2i199902-200108

DK.CHARCOAL,TRIM11

main64765-04010-E0×2i199902-200108

OAK,TRIM4#

main64765-0C010-B1×2i200108-200208

DK.CHARCOAL,TRIM11

main64765-0C010-B2×2i200108-200208

MD.MOON MIST,TRIM10

main64765-0C010-B3i200208-200310

DK.GRAY,TRIM12

main64765-0C010-B4i200408-200612

MD.CHARCOAL,TRIM11

main64765-0C010-B5i200408-200612

MD.GRAY,TRIM12

main64765-0C010-E1×2i200108-200208

OAK,TRIM4#

main64765-0C010-E3i200408-200612

FAWN,TRIM42,43

64768STOPPER, JACK COVER

main64768-04010×2i199902-200208

64769CKNOB, JACK COVER

main64769-04010-B1×2i199902-200208

MD.MOON MIST,TRIM10

main64769-04010-B2×2i199902-200208

DK.CHARCOAL,TRIM11

main64769-04010-B4×2i200208-200408

DK.GRAY,TRIM12

main64769-04010-B5×2i200408

MD.CHARCOAL,TRIM11

main64769-04010-B6×2i200408

MD.GRAY,TRIM12

main64769-04010-E0×2i200208-200408

OAK,TRIM4#

main64769-04010-E3×2i200408

FAWN,TRIM42,43

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0C010-B0i199902-200208

MOON MIST,TRIM10

main67913-0C010-B1i200408

MD.CHARCOAL,TRIM11

main67913-0C010-B2i200408

MD.GRAY,TRIM12

main67913-0C010-E0i199902-200208

MD.OAK,TRIM4#

main67913-0C010-E1i200408

FAWN,TRIM42,43

main67913-0C020-B0i199902-200208

MOON MIST,TRIM10

main67913-0C020-B1i200208-200310

MD.CHARCOAL,TRIM1#

main67913-0C020-B2i200208-200408

MD.GRAY,TRIM12

main67913-0C020-E0i200208-200408

MD.OAK,TRIM4#

main67913-0C020-E1i200408-200608

FAWN,TRIM42,43

main67913-0C030-B0i200310-200408

MD.CHARCOAL,TRIM11

main67913-0C030-B1i200408

MD.GRAY,TRIM12

main67913-0C030-E0i200310-200408

MD.OAK,TRIM4#

main67913-0C030-E1i200408

FAWN,TRIM42,43

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0C010-B0i199902-200208

MOON MIST,TRIM10

main67914-0C010-B1i199902-200208

MD.CHARCOAL,TRIM11

main67914-0C010-B2i200408

MD.GRAY,TRIM12

main67914-0C010-E0i200208-200408

MD.OAK,TRIM4#

main67914-0C010-E1i200408

FAWN,TRIM42,43

main67914-0C020-B0i199902-200208

MOON MIST,TRIM10

main67914-0C020-B1i200208-200310

MD.CHARCOAL,TRIM1#

main67914-0C020-B2i200208-200408

MD.GRAY,TRIM12

main67914-0C020-E0i199902-200208

MD.OAK,TRIM4#

main67914-0C020-E1i200408-200608

FAWN,TRIM42,43

main67914-0C030-B0i200408

MD.CHARCOAL,TRIM11

main67914-0C030-B1i200310-200408

MD.GRAY,TRIM12

main67914-0C030-E0i200310-200408

MD.OAK,TRIM4#

main67914-0C030-E1i200408

FAWN,TRIM42,43

67925APANEL, REAR DOOR SCUFF, RH

main67925-0C010-B0i199902-200208

MOON MIST,TRIM10

main67925-0C010-B1i199902-200208

MD.CHARCOAL,TRIM11

main67925-0C010-B2i200208-200408

MD.GRAY,TRIM12

main67925-0C010-E0i199902-200208

MD.OAK,TRIM4#

main67925-0C010-E1i200408

FAWN,TRIM42,43

67926PANEL, REAR DOOR SCUFF, LH

main67926-0C010-B0i199902-200208

MOON MIST,TRIM10

main67926-0C010-B1i199902-200208

MD.CHARCOAL,TRIM11

main67926-0C010-B2i200408

MD.GRAY,TRIM12

main67926-0C010-E0i200208-200408

MD.OAK,TRIM4#

main67926-0C010-E1i200408

FAWN,TRIM42,43

67933APLATE, FRONT DOOR SCUFF, REAR RH

main67933-0C010-B0i199902-200208

MOON MIST,TRIM10

main67933-0C010-B1i199902-200208

MD.CHARCOAL,TRIM11

main67933-0C010-B2i200208-200408

MD.GRAY,TRIM12

main67933-0C010-E0i199902-200208

MD.OAK,TRIM4#

main67933-0C020-B0i200408

MD.CHARCOAL,TRIM11

main67933-0C020-B1i200408

MD.GRAY,TRIM12

main67933-0C020-E0i200408

FAWN,TRIM42,43

67934APLATE, FRONT DOOR SCUFF, REAR LH

main67934-0C010-B0i199902-200208

MOON MIST,TRIM10

main67934-0C010-B1i200208-200408

MD.CHARCOAL,TRIM11

main67934-0C010-B2i200208-200408

MD.GRAY,TRIM12

main67934-0C010-E0i199902-200208

MD.OAK,TRIM4#

main67934-0C020-B0i200408

MD.CHARCOAL,TRIM11

main67934-0C020-B1i200408

MD.GRAY,TRIM12

main67934-0C020-E0i200408

FAWN,TRIM42,43

9016450049

main90164-50049

9016840048

main90168-40048

20 parts on this diagram · 2 diagrams in section
