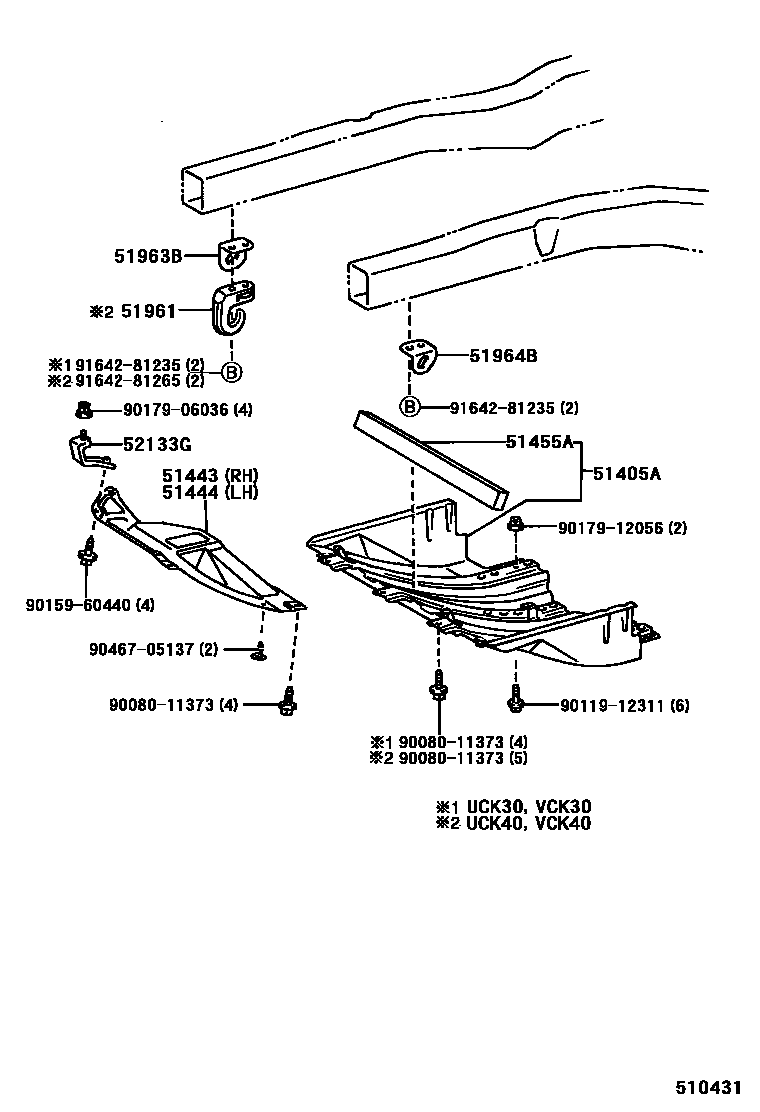

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-34010iGSK30,UCK3#,4#200408

main51405-34020iUCK30,VCK30199902-200208

51443COVER, ENGINE UNDER, REAR RH

main51443-34010iUCK30,40,VCK30,40199902-200208

51444COVER, ENGINE UNDER, REAR LH

main51444-34010iUCK30,40,VCK30,40199902-200208

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-34010iUCK3#,4#,VCK30,40200208-200408

51961HOOK, NO.1

main51961-35051iUCK40,VCK40199902-200008

51963BHOOK, TRANSPORT, FRONT RH

main51963-0C010iGSK30,UCK3#,4#200408

main51963-35070iUCK30,40,VCK30,40199902-200208

51964BHOOK, TRANSPORT, FRONT LH

main51964-0C010iUCK3#,4#,VCK30,40200208-200408

main51964-35050iUCK30,40,VCK30,40199902-200208

52133GBRACKET, FRONT BUMPER, RH

main52133-34010×4iUCK30,40,VCK30,40199902-200208

9008011373

main90080-11373

9011912311

main90119-12311

9015960440

main90159-60440

9017906036

main90179-06036

9017912056

main90179-12056

9046705137

main90467-05137

9164281235

main91642-81235

9164281265

main91642-81265

16 parts on this diagram · 2 diagrams in section
