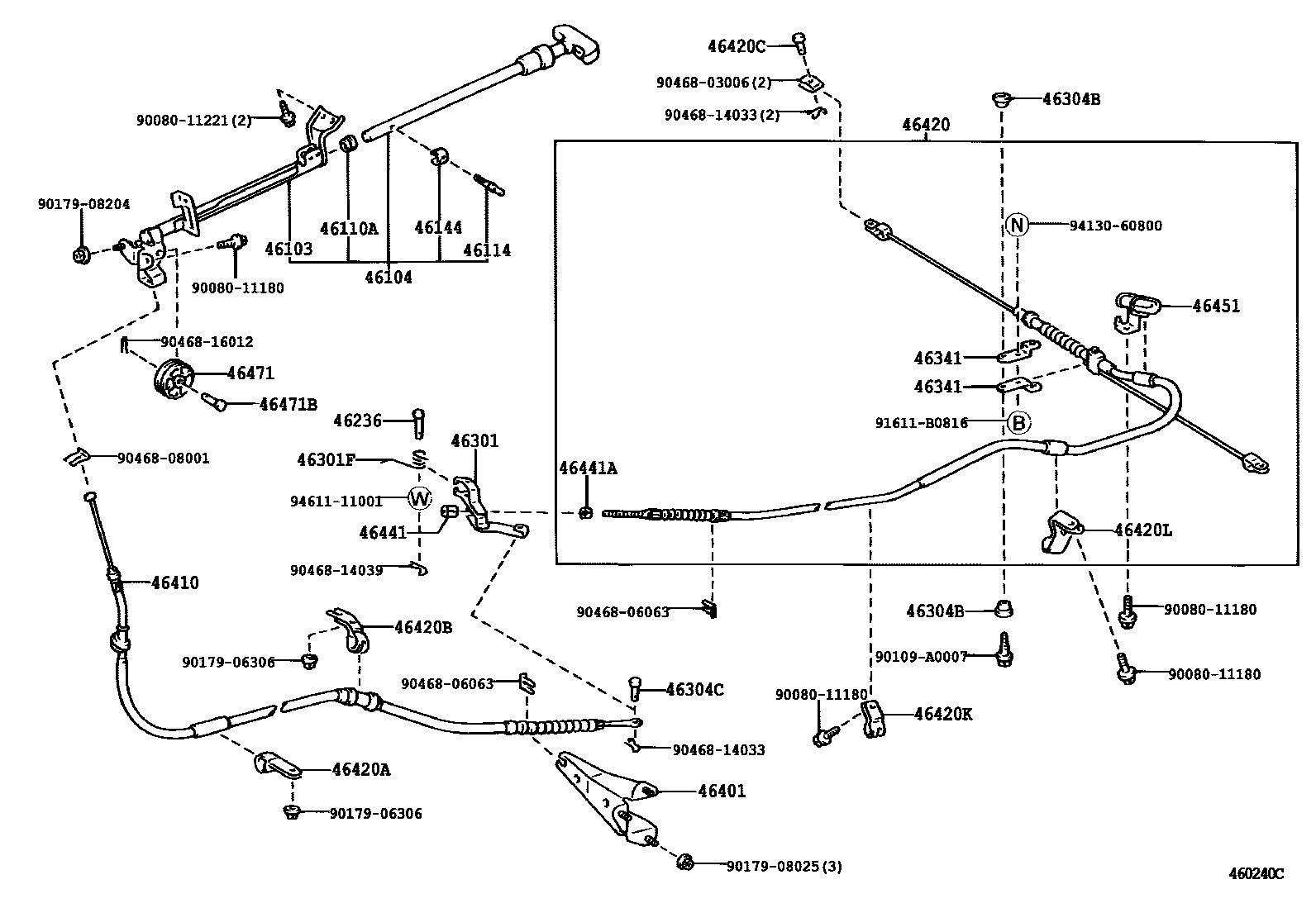

PARKING BRAKE & CABLE

0001 1 0002 1

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-34020iGSK30..6F200408

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-34020iVCK30,40..5F199902-200208

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iVCK30,40..5F199902-200208

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iVCK30,40..5F199902-200208

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iVCK30,40..5F199902-200208

46236PIN, LEVER PIVOT

main46236-34020iVCK30,40..5F199902-200208

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-34030iVCK30,40..5F199902-200208

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90949-03074iVCK30,40..5F199902-200208

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12012×2iUCK30,40,VCK30,40199902-200208

46304CPIN(FOR PARKING BRAKE EQUALIZER)

main90240-08040iVCK30,40..5F199902-200008

main90240-08059iVCK30,40..5F200008-200208

46341EQUALIZER, PARKING BRAKE

main46341-35030×2iUCK30,40,VCK30,40199902-200208

46401BRACKET SUB-ASSY, CABLE SUPPORT

main46401-34010iUCK30,40,VCK30,40199902-200208

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-34060iVCK30,40..5F200208-200408

main46410-34080iVCK30,40..4HC199902-199907

main46410-34090iUCK30,40199902-199907

main46410-34110iUCK30,40,VCK30,40..4HC199907-200208

main46410-34130iGSK30,UCK30,40..5HC200408

main46410-34140iUCK31,41200310-200408

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0C010iVCK30,40..5F200208-200408

main46420-0C011iGSK30..6F200503

main46420-0C020iUCK30,40,VCK30,40..4HC199902-200208

main46420-0C040iUCK30,40,VCK30,40..4HC200208-200408

main46420-0C041iGSK30,UCK30,40..5HC200503

main46420-0C050iUCK31,41200408-200503

main46420-0C051iUCK31,41200503

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-34020×2iUCK3#,4#,VCK30,40..4HC200208-200408

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-34030iUCK3#,4#,VCK30,40200208-200408

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08059×2iUCK30,40,VCK30,40199902-200208

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01964iUCK30,40,VCK30,40199902-200208

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main46421-34010iUCK30,40,VCK30,40199902-200208

46441NUT, WIRE ADJUSTING, NO.1

main46441-30041iVCK30,40..5F199902-200208

46441ANUT, WIRE ADJUSTING, NO.2

main46441-30030iVCK30,40..5F199902-200208

46451BRACKET, CABLE SUPPORT

main46451-34010iUCK30,40,VCK30,40199902-200208

main46451-34011iGSK30,UCK3#,4#200503

46471PULLEY, WIRE

main46471-30010iVCK30,40..5F199902-200208

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iVCK30,40..5F199902-200208

9008011180

main90080-11180

9008011221

main90080-11221

90109A0007

main90109-A0007

9017906306

main90179-06306

9017908025

main90179-08025

9017908204

main90179-08204

9046803006

main90468-03006

9046806063

main90468-06063

9046808001

main90468-08001

9046814033

main90468-14033

9046814039

main90468-14039

9046816012

main90468-16012

91611B0816

main91611-B0816

9413060800

main94130-60800

9461111001

main94611-11001

39 parts on this diagram · 2 diagrams in section
