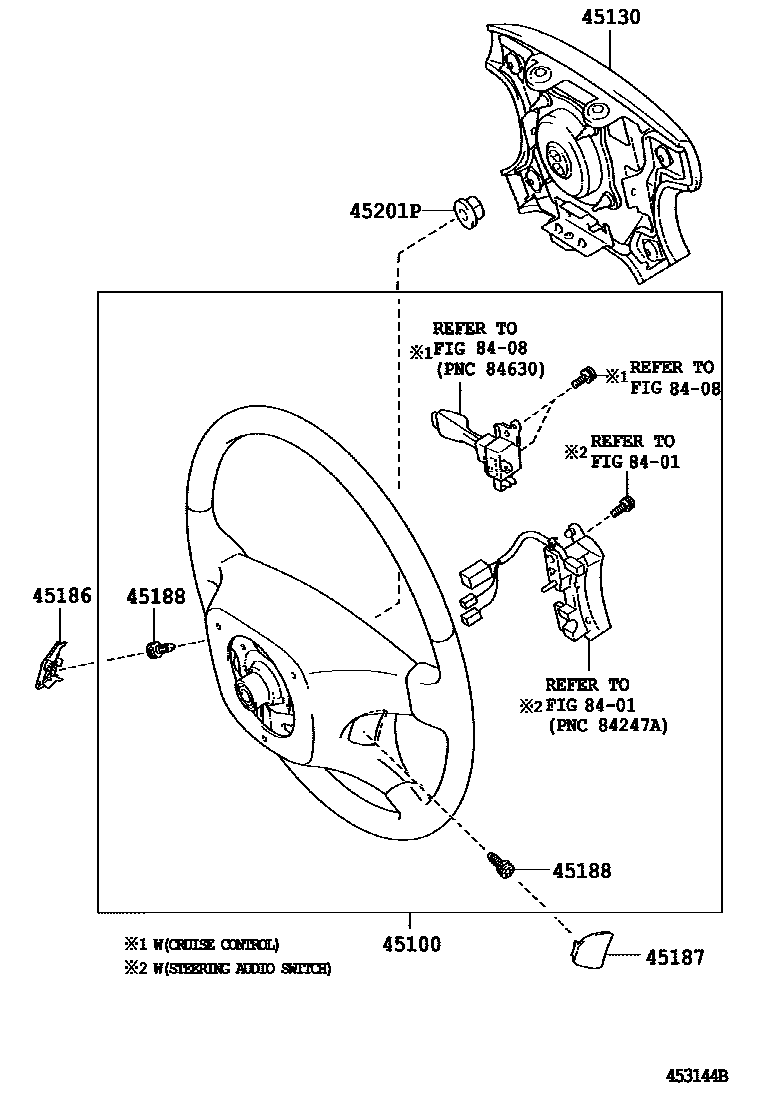

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-01080-B0i199902-199904

4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM11

main45100-01080-B1i199902-199904

4-SPOKE,URETHANE,W(CRUISE CONTROL),MD.MOON MIST,TRIM10

main45100-01080-E1i199902-199904

4-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

main45100-01090-B0i199902-199904

4-SPOKE,URETHANE,DK.CHARCOAL,TRIM11

main45100-01090-B1i199902-199904

4-SPOKE,URETHANE,MD.MOON MIST,TRIM10

main45100-01090-E1i199902-199904

4-SPOKE,URETHANE,OAK,TRIM4#

main45100-0C010-E0i199902-199906

4-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#

main45100-0C020-B0i199904-199905

4-SPOKE,URETHANE,DK.CHARCOAL,TRIM10

main45100-0C020-B1i199904-199905

4-SPOKE,URETHANE,MD.MOON MIST,TRIM11

main45100-0C020-E0i199904-199905

4-SPOKE,URETHANE,OAK,TRIM4#

main45100-0C030-B0i199904-199905

4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM10

main45100-0C030-B1i199904-199905

4-SPOKE,URETHANE,W(CRUISE CONTROL),MD.MOON MIST,TRIM11

main45100-0C030-E0i199904-199905

4-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

main45100-0C060-B0i199905-200008

4-SPOKE,URETHANE,DK.CHARCOAL,TRIM11

main45100-0C060-B1i199905-200008

4-SPOKE,URETHANE,MD.MOON MIST,TRIM10

main45100-0C060-E0i199905-200008

4-SPOKE,URETHANE,OAK,TRIM4#

main45100-0C070-B0i199905-200008

4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM11

main45100-0C070-B1i199905-200008

4-SPOKE,URETHANE,W(CRUISE CONTROL),MD.MOON MIST,TRIM10

main45100-0C070-E0i199905-200008

4-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

main45100-0C080-E0i199906-200008

4-SPOKE,LEATHER,OAK,TRIM4#

main45100-0C090-B0i200103-200208

4-SPOKE,URETHANE,DK.CHARCOAL,TRIM11

main45100-0C090-B1i200103-200208

4-SPOKE,URETHANE,MD.MOON MIST,TRIM10

main45100-0C090-E0i200103-200208

4-SPOKE,URETHANE,OAK,TRIM4#

main45100-0C100-E0i200103-200208

4-SPOKE,LEATHER,OAK,TRIM4#

main45100-0C110-B0i200008-200208

4-SPOKE,URETHANE,DK.CHARCOAL,TRIM11

main45100-0C110-B1i200008-200208

4-SPOKE,URETHANE,MD.MOON MIST,TRIM10

main45100-0C110-E0i200008-200208

4-SPOKE,URETHANE,OAK,TRIM4#

main45100-0C120-B0i200008-200103

4-SPOKE,URETHANE,DK.CHARCOAL,TRIM11; 4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM11

main45100-0C120-B1i200008-200103

4-SPOKE,URETHANE,MD.MOON MIST,TRIM10; 4-SPOKE,URETHANE,W(CRUISE CONTROL),MD.MOON MIST,TRIM10

main45100-0C120-E0i200008-200103

4-SPOKE,URETHANE,OAK,TRIM4#; 4-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

main45100-0C130-E0i200103-200208

4-SPOKE,LEATHER,OAK,TRIM10,11,4#

main45100-0C140-B0i200208-200310

4-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#

main45100-0C140-B1i200408

4-SPOKE,URETHANE,DK.GRAY,TRIM12

main45100-0C140-E0i200208-200408

4-SPOKE,URETHANE,OAK,TRIM4#

main45100-0C140-E1i200408

4-SPOKE,URETHANE,SANDAL WOOD,TRIM42,43

main45100-0C150-B0i200208-200408

4-SPOKE,URETHANE,DK.CHARCOAL,TRIM11

main45100-0C150-B1i200408-200409

4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.GRAY,TRIM12

main45100-0C150-E0i200208-200408

4-SPOKE,URETHANE,OAK,TRIM4#

main45100-0C150-E1i200408-200409

4-SPOKE,URETHANE,W(CRUISE CONTROL),SANDAL WOOD,TRIM42,43

main45100-0C151-B0i200410

4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM11

main45100-0C151-B1i200410

4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.GRAY,TRIM12

main45100-0C151-E1i200410

4-SPOKE,URETHANE,W(CRUISE CONTROL),SANDAL WOOD,TRIM4#

main45100-0C160-B0i200408-200409

4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM11

main45100-0C160-B1i200408-200409

4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.GRAY,TRIM12

main45100-0C160-E0i200208-200408

4-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

main45100-0C160-E1i200408-200409

4-SPOKE,URETHANE,W(CRUISE CONTROL),SANDAL WOOD,TRIM42,43

main45100-0C161-B0i200410

4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM11

main45100-0C161-B1i200410

4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.GRAY,TRIM12

main45100-0C161-E1i200410

4-SPOKE,URETHANE,W(CRUISE CONTROL),SANDAL WOOD,TRIM4#

main45100-0C170-B0i200208-200408

4-SPOKE,URETHANE,W(STEERING AUDIO SWITCH),DK.CHARCOAL,TRIM11

main45100-0C170-B1i200208-200408

4-SPOKE,URETHANE,W(STEERING AUDIO SWITCH),DK.GRAY,TRIM12

main45100-0C170-B2i200408-200409

4-SPOKE,URETHANE,W(CRUISE CONTROL & AUDIO SWITCH),DK.CHARCOAL,TRIM11

main45100-0C170-B3i200408-200409

4-SPOKE,URETHANE,W(CRUISE CONTROL & AUDIO SWITCH),DK.GRAY,TRIM12

main45100-0C170-E0i200208-200408

4-SPOKE,URETHANE,W(STEERING AUDIO SWITCH),OAK,TRIM4#

main45100-0C170-E1i200408-200409

4-SPOKE,URETHANE,W(CRUISE CONTROL & AUDIO SWITCH),SANDAL WOOD,TRIM42,43

main45100-0C171-B2i200410

4-SPOKE,URETHANE,W(CRUISE CONTROL & AUDIO SWITCH),DK.CHARCOAL,TRIM11

main45100-0C171-B3i200410

4-SPOKE,URETHANE,W(CRUISE CONTROL & AUDIO SWITCH),DK.GRAY,TRIM12

main45100-0C171-E1i200410

4-SPOKE,URETHANE,W(CRUISE CONTROL & AUDIO SWITCH),SANDAL WOOD,TRIM4#

main45100-0C180-E0i200208-200408

4-SPOKE,LEATHER,W(STEERING AUDIO SWITCH),OAK,TRIM4#

main45100-0C180-E1i200408-200409

4-SPOKE,LEATHER,W(CRUISE CONTROL & AUDIO SWITCH),SANDAL WOOD,TRIM42,43

main45100-0C181-E1i200410

4-SPOKE,LEATHER,W(CRUISE CONTROL & AUDIO SWITCH),SANDAL WOOD,TRIM4#

main45100-0C190-E0i200408-200608

4-SPOKE,URETHANE,SANDAL WOOD,TRIM42,43

45130BUTTON ASSY, HORN

main45130-0C010-B0i199902-200008

DK.CHARCOAL,TRIM11

main45130-0C010-B1i199902-200008

MD.MOON MIST,TRIM10

main45130-0C010-E0i199902-200008

OAK,TRIM4#

main45130-0C020-B0i200008-200108

DK.CHARCOAL,TRIM11

main45130-0C020-B1i200008-200108

MD.MOON MIST,TRIM10

main45130-0C020-E0i200008-200108

OAK,TRIM4#

main45130-0C021-B0i200108-200208

DK. CHARCOAL,TRIM11

main45130-0C021-B1i200108-200208

MD.MOON MIST,TRIM10

main45130-0C021-E0i200108-200208

OAK,TRIM4#

main45130-0C031-B0i200208-200310

DK.CHARCOAL,TRIM1#

main45130-0C031-B1i200208-200408

DK.GRAY,TRIM12

main45130-0C031-E0i200208-200408

OAK,TRIM4#

main45130-0C041-B0i200208-200408

W(STEERING AUDIO SWITCH),DK.CHARCOAL,TRIM11

main45130-0C041-B1i200208-200408

W(STEERING AUDIO SWITCH),DK.GRAY,TRIM12

main45130-0C041-E0i200208-200408

W(STEERING AUDIO SWITCH),OAK,TRIM4#

main45130-0C050-B0i200408

DK.CHARCOAL,TRIM11

main45130-0C050-B1i200408

DK.GRAY,TRIM12

main45130-0C050-E0i200408

SANDAL WOOD,TRIM42,43

main45130-0C060-B0i200408

W(STEERING AUDIO SWITCH),DK.CHARCOAL,TRIM11

main45130-0C060-B1i200408

W(STEERING AUDIO SWITCH),DK.GRAY,TRIM12

main45130-0C060-E0i200408

W(STEERING AUDIO SWITCH),SANDAL WOOD,TRIM42,43

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-06070-B1i199902-200208

DK.CHARCOAL,TRIM11

main45186-06070-B3i199902-200208

MD.MOON MIST,TRIM10

main45186-06070-E0i199902-200208

OAK,TRIM4#

main45186-0C010-B0i200408

DK.CHARCOAL,TRIM11

main45186-0C010-B1i200408

DK.GRAY,TRIM12

main45186-0C010-E0i200208-200408

OAK,TRIM4#

main45186-0C010-E2i200408

SANDAL WOOD,TRIM42,43

main45186-0C020-B0i200208-200310

DK.CHARCOAL,TRIM1#

main45186-0C020-B1i200310-200408

DK.GRAY,TRIM12

main45186-0C020-E0i200209-200408

OAK,TRIM4#; W(CRUISE CONTROL),OAK,TRIM4#

main45186-0C020-E2i200408

W(CRUISE CONTOROL),SANDAL WOOD,TRIM42,43

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-06070-B1i199902-200208

DK.CHARCOAL,TRIM11

main45186-06070-B3i199902-200208

MD.MOON MIST,TRIM10

main45186-06070-E0i199902-200208

OAK,TRIM4#

main45187-0C010-B0i200208-200408

DK.CHARCOAL,TRIM11

main45187-0C010-B1i200408

DK.GRAY,TRIM12

main45187-0C010-E0i200209-200408

OAK,TRIM4#

main45187-0C010-E2i200408

SANDAL WOOD,TRIM42,43

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-06010×2i199902-200008

L=16.3

main45188-07010×2i200008-200208

L=18.5

45201PNUT, STEERING WHEEL SET

main90179-12071i199902-200208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8 parts on this diagram · 1 diagram in section
