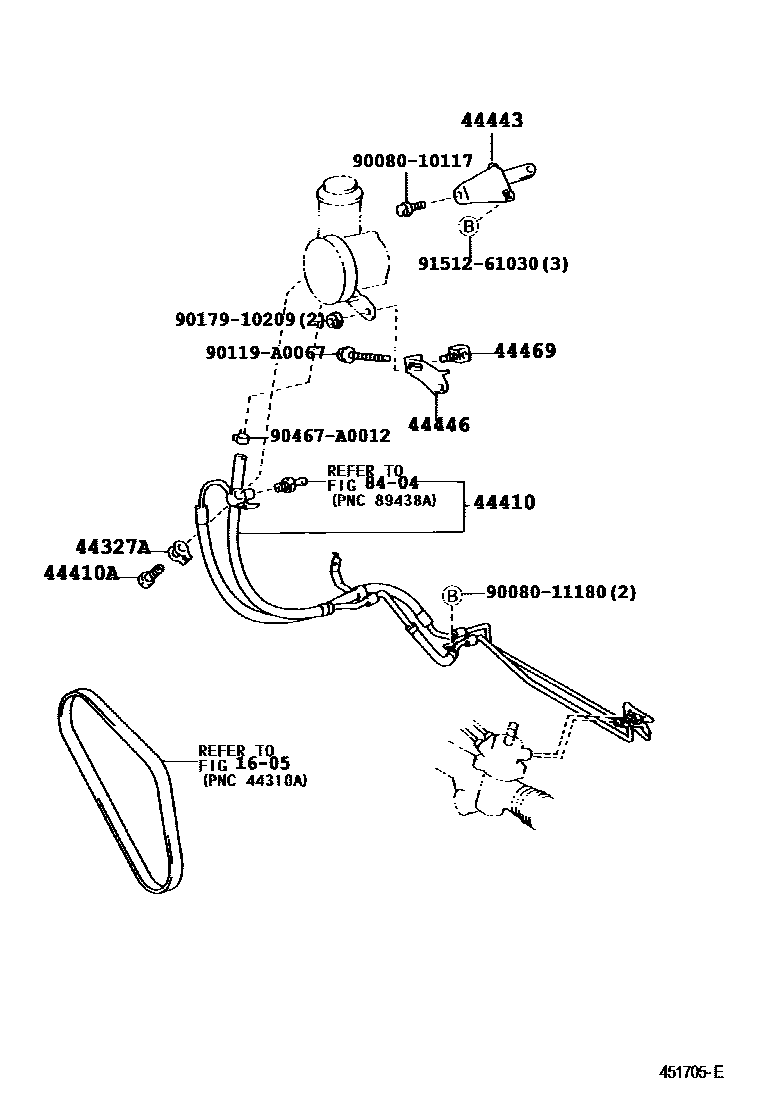

POWER STEERING TUBE

0001 1 0002 1 0003 1TOWING PACKAGE 0004 1

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-26020iUCK30,40,VCK30,40199902-200001

main44327-30040iUCK30,40,VCK30,40200001-200208

44410TUBE ASSY, PRESSURE FEED

main44410-0C010iVCK30,40199902-200208

main44410-0C020iUCK30,40200208-200408

main44410-0C021iUCK30,40200512

main44410-0C030iUCK30,40200208-200403

TOWING PACKAGE

main44410-0C040iUCK31,41200310-200403

main44410-0C060iGSK30200408

main44410-0C070iUCK30,40200408-200410

TOWING PACKAGE

main44410-0C071iUCK30,40200411-200511

TOWING PACKAGE

main44410-0C072iUCK30,40200512

TOWING PACKAGE

main44410-0C080iUCK31,41200408-200410

main44410-0C081iUCK31,41200411-200511

main44410-0C082iUCK31,41200512

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iUCK30,40,VCK30,40199902-200208

44443BRACKET, PUMP

main44443-0C010iUCK3#,4#200208-200408

(L)

main44443-34030iVCK30,40199902-200208

main44443-35080iVCK30,40200208-200408

main44443-60100iUCK3#,4#200208-200408

(J)

44446STRUT, ADJUSTING

main44446-35010iVCK30,40199902-200208

44469SLIDER, POWER STEERING BELT ADJUSTING

main44469-35010iVCK30,40199902-200208

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9008010117

main90080-10117

9008011180

main90080-11180

90119A0067

main90119-A0067

9017910209

main90179-10209

90467A0012

main90467-A0012

9151261030

main91512-61030

14 parts on this diagram · 4 diagrams in section
