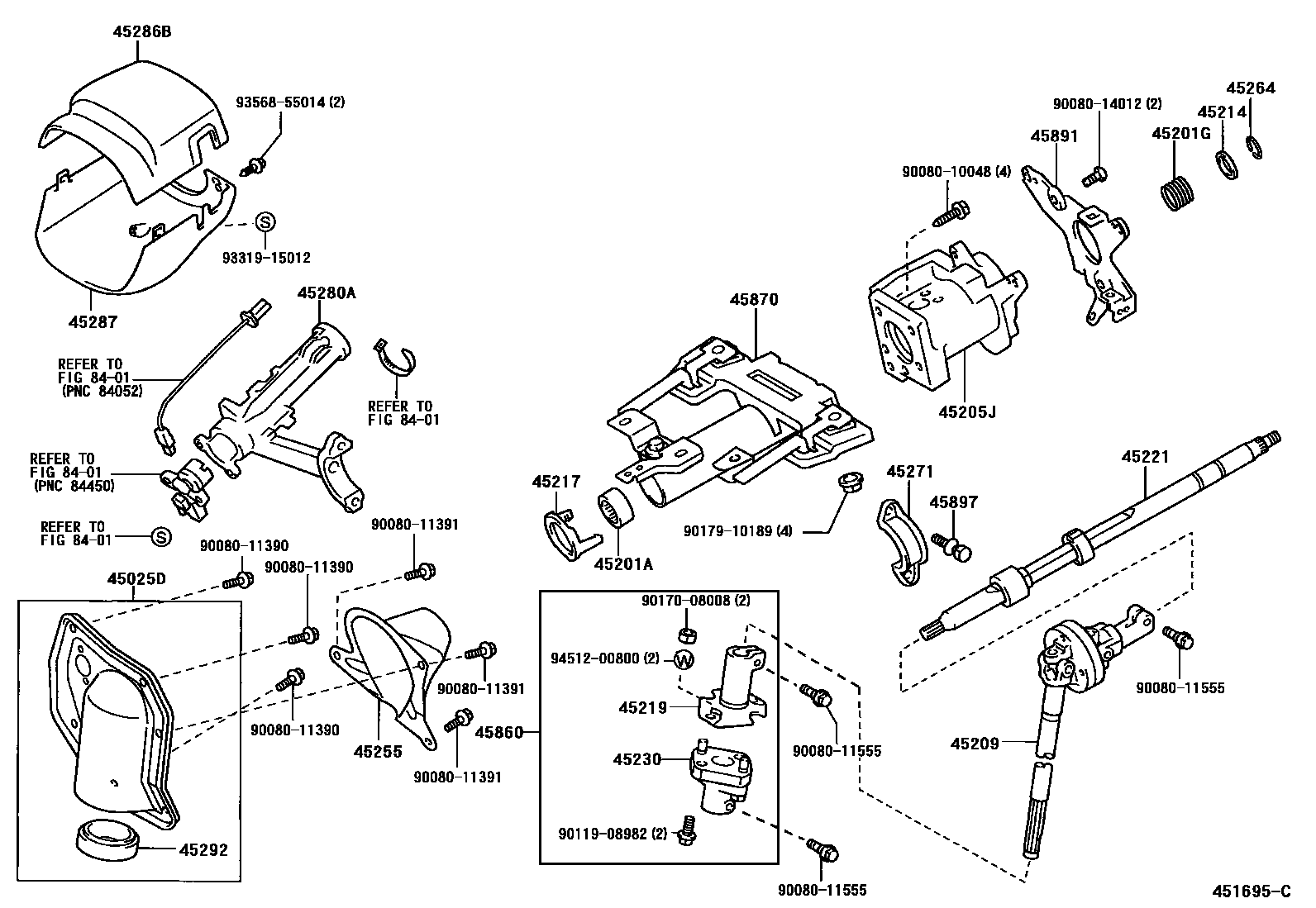

STEERING COLUMN & SHAFT

0001 1W/O(TILT STEERING) 0002 1W/O(TILT STEERING) 0003 1W(TILT STEERING) 0004 1W(TILT STEERING) 0005 1W(TILT STEERING) 0006 1W/O(TILT STEERING) 0007 1W/O(TILT STEERING) 0008 1W(TILT STEERING) 0009 1W(TILT STEERING) 0010 1W(TILT STEERING)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0C010iVCK30,40..5F200208-200408

main45025-0C020iUCK30,40,VCK30,40..4HC199902-200208

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-0C010iUCK3#,4#,VCK30,40200208-200408

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90080-50153iUCK30,40,VCK30,40199902-200208

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-07010iUCK30,40,VCK30,40199902-200208

W(TILT STEERING)

main45205-0C010iUCK30,40,VCK30,40..DLX,SR5199902-200208

W/O(TILT STEERING)

45209YOKE SUB-ASSY, STEERING SLIDING

main45290-34010iUCK30,40,VCK30,40199902-200208

main45290-34020iUCK31,41200310-200408

main45290-34030iUCK31,41200408

main45290-34040iGSK30,UCK30,40200408

45214RETAINER, MAIN SHAFT SPRING

main45214-07010iUCK30,40,VCK30,40199902-200208

45217STOPPER, STEERING MAIN SHAFT

main45217-0C010iUCK30,40,VCK30,40200208-200408

main45217-0C020iUCK31,41200310-200408

45219YOKE, STEERING SLIDING

main45209-34040iUCK3#,4#,VCK30,40200302-200408

main45209-35101iUCK30,40,VCK30,40199902-200208

main45219-0C010iGSK30,UCK3#,4#200408

45221SHAFT, STEERING INTERMEDIATE

main45221-0C020iUCK30,40,VCK30,40..DLX,SR5199902-200208

main45221-0C050iGSK30,UCK30,40..DLX200408-200608

45230COUPLING ASSY, FLEXIBLE

main45230-35090iUCK30,40,VCK30,40199902-200208

45255PLATE, STEERING COLUMN HOLE COVER

main45255-34010iUCK30,40,VCK30,40199902-199911

main45255-34011iUCK30,40,VCK30,40199911-200208

45264RING, STEERING COLUMN, NO.2

main45264-07010iUCK30,40,VCK30,40199902-200208

45271CLAMP, STEERING COLUMN, UPPER

main45271-33010iUCK30,40,VCK30,40199902-200208

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-34050iGSK30,UCK30,40..CND200408-200411

main45280-34060iGSK30..6F200408

main45280-34070iUCK31,41..USA200408-200507

main45280-34080iGSK30,UCK30,40..CND200411

45286BCOVER, STEERING COLUMN, UPR

main45023-0C010-B0iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199902-199911

DK.CHARCOAL,TRIM11

main45023-0C010-B1iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199902-199911

MD.MOON MIST,TRIM10

main45023-0C010-E0iUCK30,40,VCK30,40..4HC199902-199911

OAK,TRIM4#

main45023-0C011-B0iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199911-200010

DK.CHARCOAL,TRIM11

main45023-0C011-B1iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199911-200010

MD.MOON MIST,TRIM10

main45023-0C011-E0iUCK30,40,VCK30,40..4HC199911-200010

OAK,TRIM4#

main45023-0C012-B0iUCK30,40,VCK30,40..4HC..(LIMD,SR5)200010-200201

DK.CHARCOAL,TRIM11

main45023-0C012-B1iUCK30,40,VCK30,40..4HC..(LIMD,SR5)200010-200201

MD.MOON MIST,TRIM10

main45023-0C012-E0iUCK30,40,VCK30,40..4HC200010-200201

OAK,TRIM4#

main45023-0C013-B0iUCK40,VCK30..4HC..DLX200208-200310

DK.CHARCOAL,TRIM1#

main45023-0C013-B1iUCK30,40,VCK30,40..4HC..(LIMD,SR5)200201-200208

MD.MOON MIST,TRIM10

main45023-0C013-B2iUCK3#,4#,VCK30,40..4HC..(LIMD,SR5)200208-200408

DK.GRAY,TRIM12

main45023-0C013-E0iUCK30,40,VCK30,40..4HC200201-200208

OAK,TRIM4#

main45023-0C030-B0iGSK30,UCK3#,4#..5HC..(LIMD,SR5)200408

DK.CHARCOAL,TRIM11

main45023-0C030-B1iGSK30,UCK3#,4#..5HC..(LIMD,SR5)200408

DK.GRAY,TRIM12

main45023-0C030-E0iGSK30,UCK3#,4#..5HC200408

SANDAL WOOD,TRIM42,43

main45286-0C020-B0iVCK30,40..5F..SR5199902-199911

DK.CHARCOAL,TRIM11

main45286-0C020-B1iVCK30,40..5F..SR5199902-199911

MD.MOON MIST,TRIM10

main45286-0C020-E0iVCK30,40..5F199902-199911

OAK,TRIM4#

main45286-0C021-B0iVCK30,40..5F..SR5199911-200208

DK.CHARCOAL,TRIM11

main45286-0C021-B1iVCK30,40..5F..SR5199911-200208

MD.MOON MIST,TRIM10

main45286-0C021-B2iVCK30,40..5F..SR5200208-200408

DK.GRAY,TRIM12

main45286-0C021-E0iVCK30,40..5F200208-200408

OAK,TRIM4#

main45286-0C040-B0iGSK30..6F..SR5200408

DK.CHARCOAL,TRIM11

main45286-0C040-B1iGSK30..6F..SR5200408

DK.GRAY,TRIM12

main45286-0C040-E0iGSK30..6F200408

SANDAL WOOD,TRIM42,43

45287COVER, STEERING COLUMN, LWR

main45287-0C010-B0iVCK30,40..5F..SR5199902-199911

W(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C010-B1iVCK30,40..5F..SR5199902-199911

W(TILT STEERING),MD.MOON MIST,TRIM10

main45287-0C010-E0iVCK30,40..5F199902-199911

W(TILT STEERING),OAK,TRIM4#

main45287-0C011-B0iVCK30,40..5F..SR5199911-200201

W(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C011-B1iVCK30,40..5F..SR5199911-200201

W(TILT STEERING),MD.MOON MIST,TRIM10

main45287-0C011-E0iVCK30,40..5F199911-200201

W(TILT STEERING),OAK,TRIM4#

main45287-0C012-B0iVCK30,40..5F..SR5; VCK30..5F..DLX200208-200302

W(TILT STEERING),DK.CHARCOAL,TRIM1#; W(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C012-B1iVCK30,40..5F..SR5200201-200208

W(TILT STEERING),MD.MOON MIST,TRIM10

main45287-0C012-B2iVCK30,40..5F..SR5200208-200302

W(TILT STEERING),DK.GRAY,TRIM12

main45287-0C012-E0iVCK30,40..5F200208-200302

W(TILT STEERING),OAK,TRIM4#

main45287-0C013-B0iVCK30,40..5F..SR5200302-200408

W(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C013-B2iVCK30,40..5F..SR5200302-200408

W(TILT STEERING),DK.GRAY,TRIM12

main45287-0C013-E0iVCK30,40..5F200302-200408

W(TILT STEERING),OAK,TRIM4#

main45287-0C020-B0iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199902-199911

W(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C020-B1iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199902-199911

W(TILT STEERING),MD.MOON MIST,TRIM10

main45287-0C020-E0iUCK30,40,VCK30,40..4HC199902-199911

W(TILT STEERING),OAK,TRIM4#

main45287-0C021-B0iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199911-200201

W(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C021-B1iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199911-200201

W(TILT STEERING),MD.MOON MIST,TRIM10

main45287-0C021-E0iUCK30,40,VCK30,40..4HC199911-200201

W(TILT STEERING),OAK,TRIM4#

main45287-0C022-B0iUCK30,40,VCK30,40..4HC..(LIMD,SR5); UCK40,VCK30..4HC..DLX200208-200302

W(TILT STEERING),DK.CHARCOAL,TRIM1#; W(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C022-B1iUCK30,40,VCK30,40..4HC..(LIMD,SR5)200201-200208

W(TILT STEERING),MD.MOON MIST,TRIM10

main45287-0C022-B2iUCK30,40,VCK30,40..4HC..(LIMD,SR5)200208-200302

W(TILT STEERING),DK.GRAY,TRIM12

main45287-0C022-E0iUCK30,40,VCK30,40..4HC200208-200302

W(TILT STEERING),OAK,TRIM4#

main45287-0C023-B0iUCK30,40,VCK30,40..4HC..(LIMD,SR5)200302-200408

W(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C023-B2iUCK31,41200310-200408

DK.GRAY,TRIM12

main45287-0C023-E0iUCK31,41200310-200408

OAK,TRIM4#

main45287-0C030-B0iVCK30,40..5F..SR5199902-199911

W/O(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C030-B1iVCK30,40..5F..SR5199902-199911

W/O(TILT STEERING),MD.MOON MIST,TRIM10

main45287-0C030-E0iVCK30,40..5F199902-199911

W/O(TILT STEERING),OAK,TRIM4#

main45287-0C031-B0iVCK30,40..5F..SR5199911-200201

W/O(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C031-B1iVCK30,40..5F..SR5199911-200201

W/O(TILT STEERING),MD.MOON MIST,TRIM10

main45287-0C031-E0iVCK30,40..5F199911-200201

W/O(TILT STEERING),OAK,TRIM4#

main45287-0C032-B0iVCK30,40..5F..SR5200201-200208

W/O(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C032-B1iVCK30,40..5F..SR5200201-200208

W/O(TILT STEERING),MD.MOON MIST,TRIM10

main45287-0C032-E0iVCK30..5F..DLX200208-200302

W/O(TILT STEERING),OAK,TRIM4#

main45287-0C033-E0iVCK30..5F..DLX200302-200408

W/O(TILT STEERING),OAK,TRIM4#

main45287-0C040-B0iUCK30,40,VCK30,40..4HC..SR5199902-199911

W/O(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C040-B1iUCK30,40,VCK30,40..4HC..SR5199902-199911

W/O(TILT STEERING),MD.MOON MIST,TRIM10

main45287-0C040-E0iUCK30,40,VCK30,40..4HC..(DLX,SR5)199902-199911

W/O(TILT STEERING),OAK,TRIM4#

main45287-0C041-B0iUCK30,40,VCK30,40..4HC..SR5199911-200201

W/O(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C041-B1iUCK30,40,VCK30,40..4HC..SR5199911-200201

W/O(TILT STEERING),MD.MOON MIST,TRIM10

main45287-0C041-E0iUCK30,40,VCK30,40..4HC..(DLX,SR5)199911-200201

W/O(TILT STEERING),OAK,TRIM4#

main45287-0C042-B0iUCK30,40,VCK30,40..4HC..SR5200201-200208

W/O(TILT STEERING),DK.CHARCOAL,TRIM11

main45287-0C042-B1iUCK30,40,VCK30,40..4HC..SR5200201-200208

W/O(TILT STEERING),MD.MOON MIST,TRIM10

main45287-0C042-E0iUCK40,VCK30..4HC..DLX200208-200302

W/O(TILT STEERING),OAK,TRIM4#

main45287-0C043-E0iUCK40,VCK30..4HC..DLX200302-200408

W/O(TILT STEERING),OAK,TRIM4#

main45287-0C050-B0iGSK30,UCK3#,4#..5HC..(LIMD,SR5)200408

DK.CHARCOAL,TRIM11

main45287-0C050-B1iGSK30,UCK3#,4#..5HC..(LIMD,SR5)200408

DK.GRAY,TRIM12

main45287-0C050-E0iGSK30,UCK3#,4#..5HC200408

SANDAL WOOD,TRIM42,43

main45287-0C060-B0iGSK30..6F..SR5200408

DK.CHARCOAL,TRIM11

main45287-0C060-B1iGSK30..6F..SR5200408

DK.GRAY,TRIM12

main45287-0C060-E0iGSK30..6F200408

SANDAL WOOD,TRIM42,43

main45287-0C070-E0iGSK30..6F..DLX200408-200608

W/O(TILT STEERING),SANDAL WOOD,TRIM42,43

main45287-0C080-E0iGSK30,UCK30,40..5HC..DLX200408-200608

W/O(TILT STEERING),SANDAL WOOD,TRIM42,43

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35090iUCK30,40,VCK30,40199902-200208

45860SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45860-0C010iGSK30,UCK3#,4#200408

main45860-34020iUCK3#,4#,VCK30,40200302-200408

main45860-35171iUCK30,40,VCK30,40200208-200302

45870TUBE ASSY, STEERING COLUMN

main45870-0C010iUCK30,40,VCK30,40..4HC199902-200208

main45870-0C020iVCK30,40..5F199902-200208

main45870-0C030iUCK31,41200310-200408

main45870-0C040iUCK30,40,VCK30,40..4HC200208-200408

main45870-0C050iVCK30,40..5F200208-200408

main45870-0C080iUCK31,41200408

main45870-0C090iGSK30..6F200408

main45870-0C100iGSK30,UCK30,40..5HC200408

45891BRACKET, TURN SIGNAL

main45891-07010iGSK30,UCK3#,4#200408

45897BOLT, STEERING LOCK SET

main45897-12020×2iUCK30,40,VCK30,40199902-200208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010048

main90080-10048

9008011390

main90080-11390

9008011391

main90080-11391

9008011555

main90080-11555

9008014012

main90080-14012

9011908982

main90119-08982

9017008008

main90170-08008

9017910189

main90179-10189

9331915012

main93319-15012

9356855014

main93568-55014

9451200800

main94512-00800

33 parts on this diagram · 10 diagrams in section
