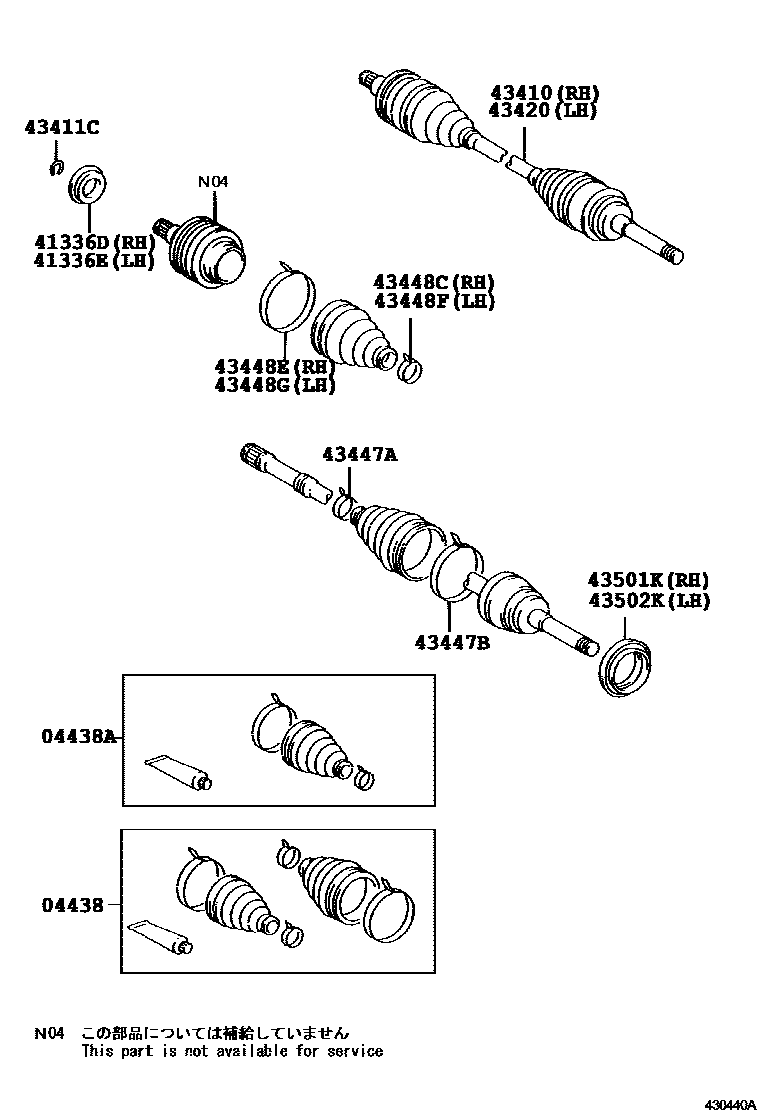

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-0C020×2iUCK40,VCK40199902-200208

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-0C010×2iUCK40,VCK40199902-200208

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-04010iUCK40,VCK40199902-200208

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-04010iUCK40,VCK40199902-200208

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-0C010iUCK40,VCK40199902-200208

43411CRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)

main43425-04020×2iUCK40,VCK40199902-200208

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-0C010iUCK40,VCK40199902-200208

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-04030×2iUCK40,VCK40199902-200208

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-04040×2iUCK40,VCK40199902-200208

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0C020iUCK40,VCK40199902-200208

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0C010iUCK40,VCK40199902-200208

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0C020iUCK40,VCK40199902-200208

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0C010iUCK40,VCK40199902-200208

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90080-30028iUCK40,VCK40199902-200208

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90080-30028iUCK40,VCK40199902-200208

15 parts on this diagram · 1 diagram in section
