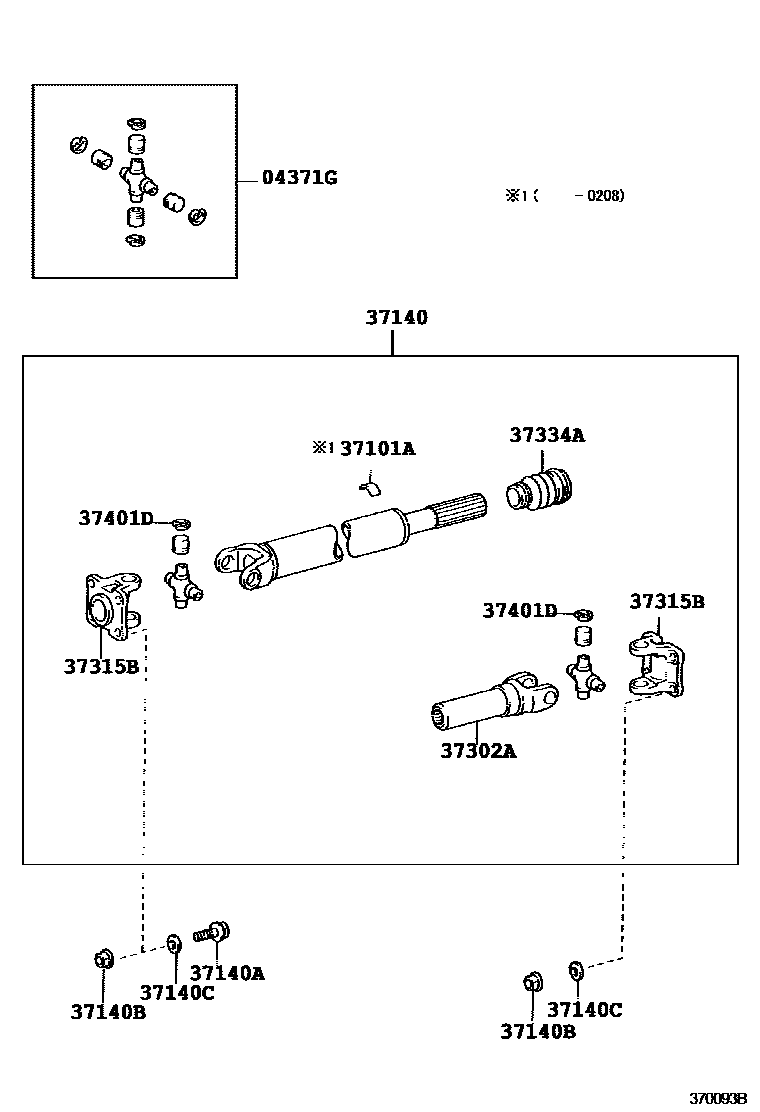

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1FRONT 0002 1REAR 0003 1REAR 0004 1FRONT 0005 1REAR 0006 1REAR

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-04030×3iGSK30,UCK3#200408

main04371-60060×2iUCK4#200408

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-0C010×2iUCK4#,VCK40200208-200408

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90080-93007iUCK30,40,VCK30,40199902-200208

22.1G

main90080-93010iUCK30,40,VCK30,40199902-200208

25.5G

main90080-93019iUCK30,40,VCK30,40199902-200208

2.3G

main90080-93020iUCK30,40,VCK30,40199902-200208

4.5G

main90080-93021iUCK30,40,VCK30,40199902-200208

7.9G

main90080-93022iUCK30,40,VCK30,40199902-200208

11.3G

main90080-93023iUCK30,40,VCK30,40199902-200208

14.8G

main90080-93024iUCK30,40,VCK30,40199902-200208

18.1G

main90937-01132iUCK4#,VCK40200208-200408

10G,L=20.7

main90937-01136iUCK4#,VCK40200208-200408

20G,L=41.4

main90937-01140iUCK4#,VCK40200208-200408

30G,L=62.2

main90937-01147iUCK4#,VCK40200208-200408

2G,T=2.0

main90937-01148iUCK4#,VCK40200208-200408

4G,T=2.0

main90937-01149iUCK4#,VCK40200208-200408

6G,L=12.4

main90937-01150iUCK4#,VCK40200208-200408

8G,L=16.6

main90937-01151iUCK4#,VCK40200208-200408

12G,L=24.9

main90937-01152iUCK4#,VCK40200208-200408

14G,L=29.0

main90937-01153iUCK4#,VCK40200208-200408

16G,L=33.2

main90937-01154iUCK4#,VCK40200208-200408

18G,L=37.3

main90937-01155iUCK4#,VCK40200208-200408

22G,L=45.6

main90937-01156iUCK4#,VCK40200208-200408

24G,L=49.7

main90937-01157iUCK4#,VCK40200208-200408

26G,L=53.9

main90937-01158iUCK4#,VCK40200208-200408

28G,L=58.1

main90937-01497iUCK4#,VCK40200208-200408

6G,L=11

main90937-01498iUCK4#,VCK40200208-200408

9G,L=13

main90937-01499iUCK4#,VCK40200208-200408

12G,L=17

main90937-01500iUCK4#,VCK40200208-200408

15G,L=21

main90937-01501iUCK4#,VCK40200208-200408

18G,L=17

main90937-01502iUCK4#,VCK40200208-200408

21G,L=19

main90937-01503iUCK4#,VCK40200208-200408

24G,L=21

main90937-01504iUCK4#,VCK40200208-200408

27G,L=19

main90937-01505iUCK4#,VCK40200208-200408

30G,L=21

main90937-01506iUCK4#,VCK40200208-200408

33G,L=22

main90937-01507iUCK4#,VCK40200208-200408

36G,L=24

main90937-01508iUCK4#,VCK40200208-200408

39G,L=22

main90937-01509iUCK4#,VCK40200208-200408

42G,L=24

main90937-01510iUCK4#,VCK40200208-200408

45G,L=25

37140SHAFT ASSY, PROPELLER, FRONT

main37140-0C010iUCK4#200208-200408

main37140-0C020iVCK40..5F199902-200208

main37140-0C030iVCK40..4HC199902-200208

main37140-0C060iUCK4#200408-200409

main37140-0C061iUCK4#200410-200612

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90080-10294×4iUCK4#,VCK40200301-200408

main90105-10085×4iUCK40,VCK40200208-200301

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90178-10013×8iUCK4#,VCK40200208-200408

main90179-10059×8iUCK40,VCK40199902-200006

main90179-11005×4iUCK4#200408

NO.2

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90201-11013×4iUCK4#200408

NO.2

main90560-10101×8iUCK40,VCK40199902-200006

main90560-10107×8iUCK4#,VCK40200208-200408

37302AYOKE SUB-ASSY, FR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE

main37302-0C010iUCK4#,VCK40200208-200408

37315BY0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE

main37315-04030×2iUCK4#,VCK40200208-200408

37334ABOOT, SLIDING SHAFT

main37334-0C010iUCK4#,VCK40200208-200408

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90080-52038×8iUCK4#,VCK40200208-200408

T=1.64,BLUE

main90080-52039×8iUCK4#,VCK40200208-200408

T=1.59,YELLOW

main90080-52040×8iUCK4#,VCK40200208-200408

T=1.54,SILVER

main90080-52041×8iUCK4#,VCK40200208-200408

T=1.49,COPPER

main90080-52042×8iUCK4#,VCK40200208-200408

T=1.51,BLACK

main90080-52043×8iUCK4#,VCK40200208-200408

T=1.44,RED

main90080-52044×8iUCK4#,VCK40200208-200408

T=1.38,GREEN

11 parts on this diagram · 6 diagrams in section
