TRANSFER ASSEMBLY & GASKET KIT

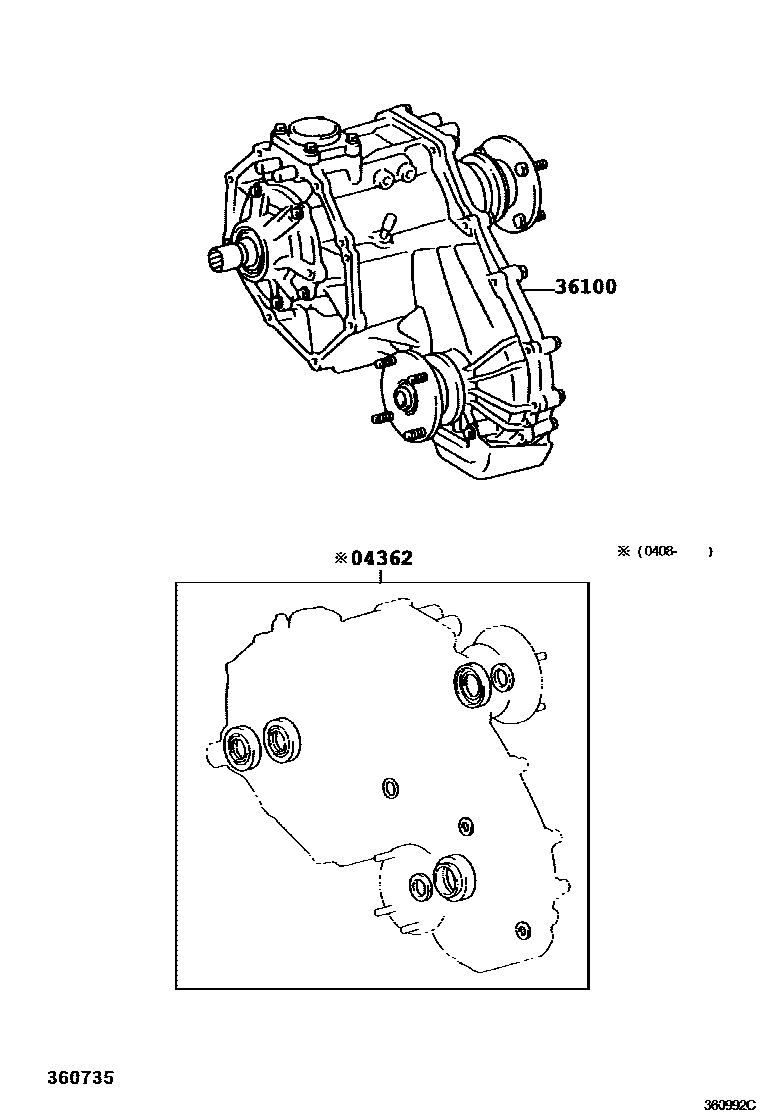

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-35081i200408-200608

main04362-60680i200609

36100TRANSFER ASSY

main36100-3D500i200408

main36110-34010i199902-200208

main36110-34020i199902-200208

main36110-34030i199902-200208

W(ABS)

main36110-35310i199902-200208

main36110-35341i199902-200208

W(265/70R16 7J TIRE & ABS)

main36110-35430i199902-200208

W(265/70R16 7J TIRE)

2 parts on this diagram · 2 diagrams in section
