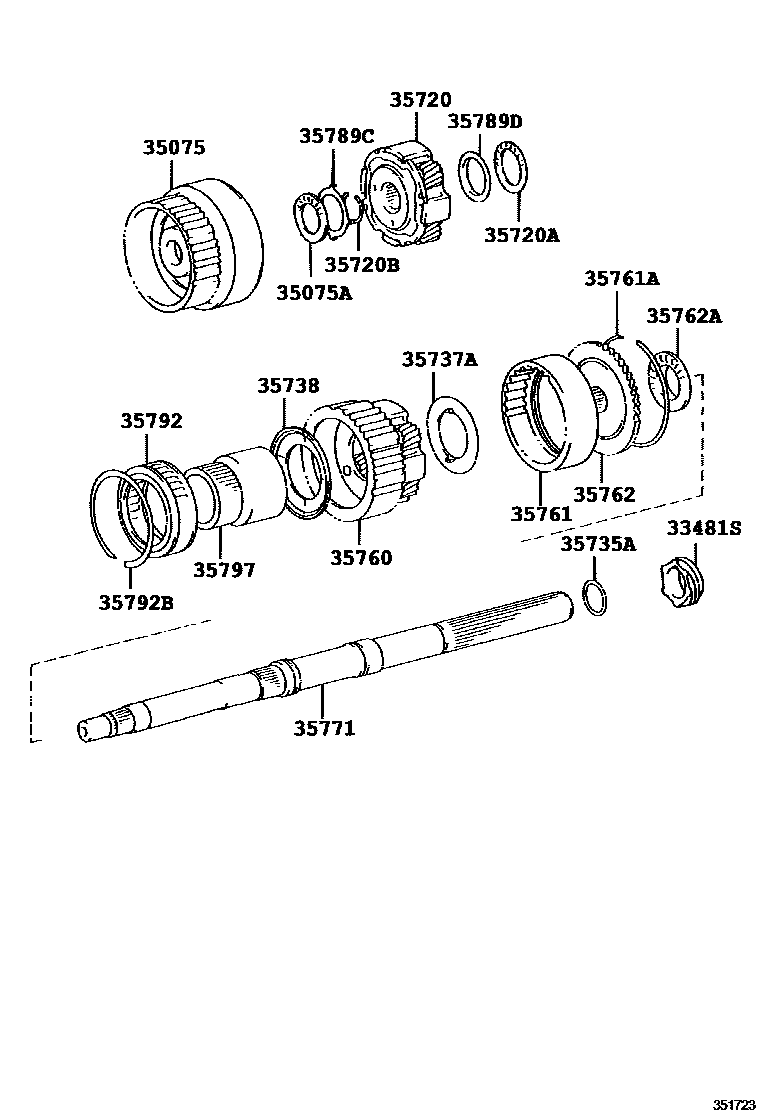

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A340E,A340F 0002 1A340E,A340F 0003 1A750E,A750F

33481SGEAR, SPEEDOMETER DRIVE (ATM)

main33481-24010iUCK30,VCK30..4HC200208-200309

N=6

main33481-34010iUCK3#200309-200408

N=6

35075GEAR SUB-ASSY, FRONT PLANETARY RING

main35075-50010iVCK30,40..4HC200208-200408

main35075-60010iUCK3#,4#200208-200408

35075ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING)

main90374-32004iVCK30,40..4HC199902-200205

main90374-35004iVCK30,40..4HC200205-200208

main90374-49004iUCK30,40199902-200208

35720GEAR ASSY, FRONT PLANETARY

main35720-30080iVCK30,40..4HC199902-200208

main35720-30100iUCK3#,4#200208-200408

main35720-60070iGSK30,UCK3#,4#..5HC200408

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-35001iVCK30,40..4HC200208-200408

main90374-35005iUCK3#,4#200208-200408

35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)

main90520-24026iUCK3#,4#,VCK30,40..4HC200208-200408

35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL

main35735-30020iUCK3#,4#,VCK30,40..4HC200208-200408

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-30030iVCK30,40..4HC199902-200208

main35737-60020iUCK30,40200208-200309

main35737-60030iGSK30,UCK3#,4#..5HC200408

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-60030iGSK30,UCK3#,4#..5HC200408

main35739-30030iVCK30,40..4HC199902-200208

main35739-60010iUCK3#,4#200208-200408

35760GEAR ASSY, REAR PLANETARY

main35705-30010iVCK30,40..4HC199902-200208

main35705-60010iUCK3#,4#200208-200408

main35760-04010iGSK30,UCK3#..5HC200408-200605

main35760-04011iGSK30,UCK3#..5HC200605

main35760-0C010iUCK4#200408-200605

main35760-0C011iUCK4#200605

35761GEAR, REAR PLANETARY RING

main35761-0C010iGSK30,UCK3#,4#..5HC200408

main35761-30020iUCK30,40,VCK30,40..4HC199902-200208

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90520-99073iGSK30,UCK3#,4#..5HC200408

main90521-99024iUCK30,40,VCK30,40..4HC199902-200208

35762FLANGE, REAR PLANETARY RING GEAR

main35762-30040iUCK3#,4#,VCK30,40..4HC200208-200408

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-38003iUCK30,40,VCK30,40..4HC199906-200208

main90374-39001iUCK30,40,VCK30,40..4HC199902-199906

main90374-A0010iGSK30,UCK3#..5HC200408

(L)

35771SHAFT, OUTPUT

main35073-34010iUCK40199902-200208

main35073-35030iVCK40..4HC200208-200408

main35771-30040iVCK30..4HC199902-200208

main35771-34010iUCK30199902-200208

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-30080iVCK30..4HC200208-200408

main35789-30130iVCK40..4HC199902-200205

main35789-30210iUCK30,40199902-200208

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-30100iVCK30,40..4HC200208-200408

main35789-30200iUCK30; UCK40199902-200208

35792CLUTCH, 1 WAY, NO.2

main35792-14020iUCK30,40,VCK30,40..4HC199902-200208

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-87001iUCK30,40,VCK30,40..4HC199902-200208

35797RACE, 1 WAY CLUTCH INNER

main35797-50010iUCK30,40,VCK30,40..4HC199902-200208

20 parts on this diagram · 3 diagrams in section
