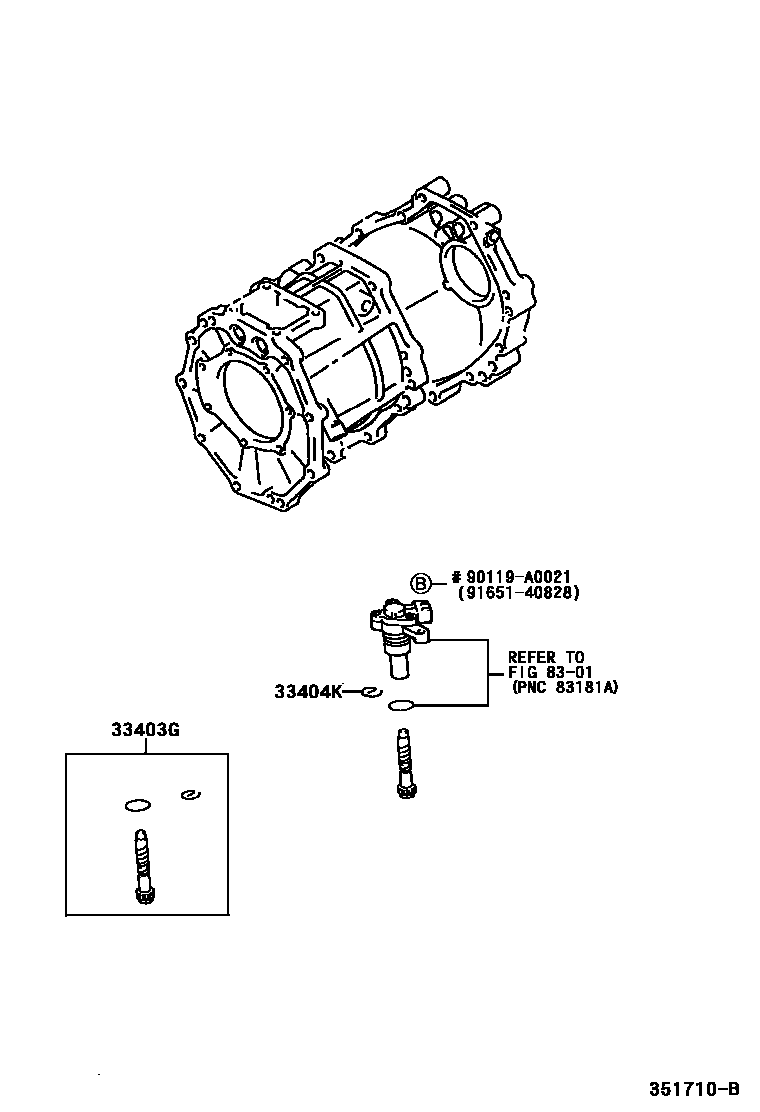

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39345iVCK40..4HC..(LIMD,SR5)199902-200208

N=31,MARK 31:11

main33403-39365iUCK40..DLX,SR5199902-200208

N=30,MARK 30:11

main33403-39425iVCK40..4HC199902-200208

N=32,MARK 32:11

main33403-39515iUCK40..LIMD,SR5199902-200208

N=29,MARK 29:11

main33482-39405iUCK30199902-200309

N=16,MARK 16:6

main33482-59015iVCK30..4HC199902-200309

N=17,MARK 17:6

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iUCK40,VCK40..4HC199902-200310

8301METER

→ Go to FIG 83-01

90119A0021

main90119-A0021

9165140828

main91651-40828

5 parts on this diagram · 1 diagram in section
