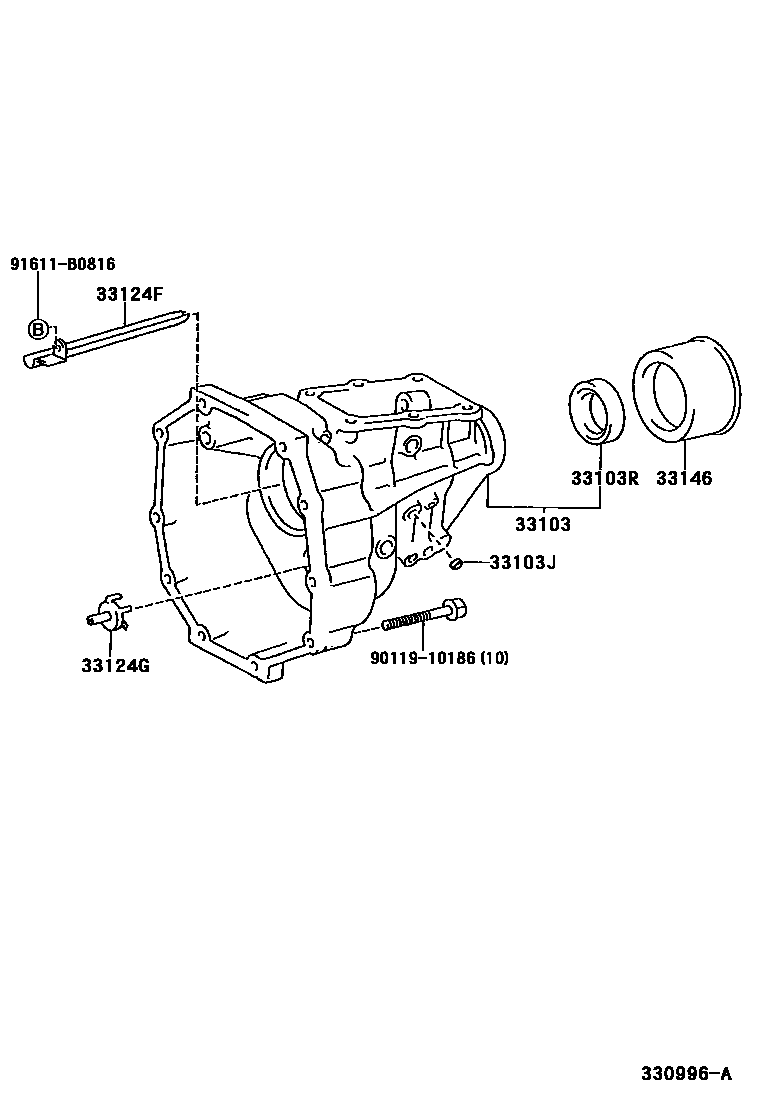

EXTENSION HOUSING (MTM)

0001 1R150 0002 1RA60

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-35180iVCK30..5F199902-200208

main33103-35190iGSK30..6F200408

33103JPLUG, TIGHT(FOR EXTENSION HOUSING)

main90341-10065iVCK30..5F199902-200208

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-40001iVCK30..5F199902-200208

main90311-45024iGSK30..6F200408

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-35100iVCK30..5F199902-200208

main33124-35150iGSK30..6F200408

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-35090iVCK30..5F199902-200208

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iVCK30..5F199902-200105

main33146-30020iVCK30..5F200105-200208

main33146-35020iGSK30..6F200408

9011910186

main90119-10186

91611B0816

main91611-B0816

8 parts on this diagram · 2 diagrams in section
