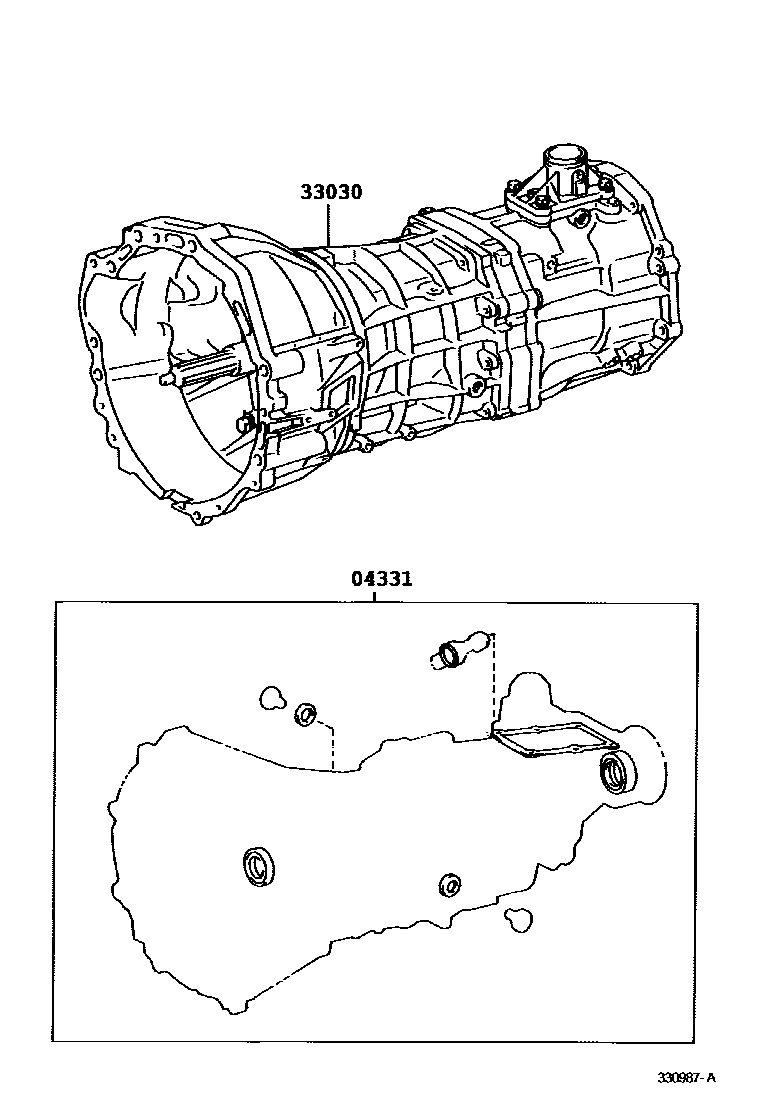

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1R150F 0002 1R150,RA60

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-0K030iVCK30,40..5F200208-200408

main04331-34050iGSK30..6F200408

sub04331-34051

main04331-35220iVCK30,40..5F199902-200208

sub04331-35350

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-34080iVCK30..5F199902-200208

main33030-34090iVCK30..5F..SR5200208-200408

W(265/70R16 7J TIRE)

main33030-34100iVCK40..5F199902-200208

main33030-34110iGSK30..6F200408-200506

RA60

main33030-34111iGSK30..6F200506

RA60

2 parts on this diagram · 2 diagrams in section
