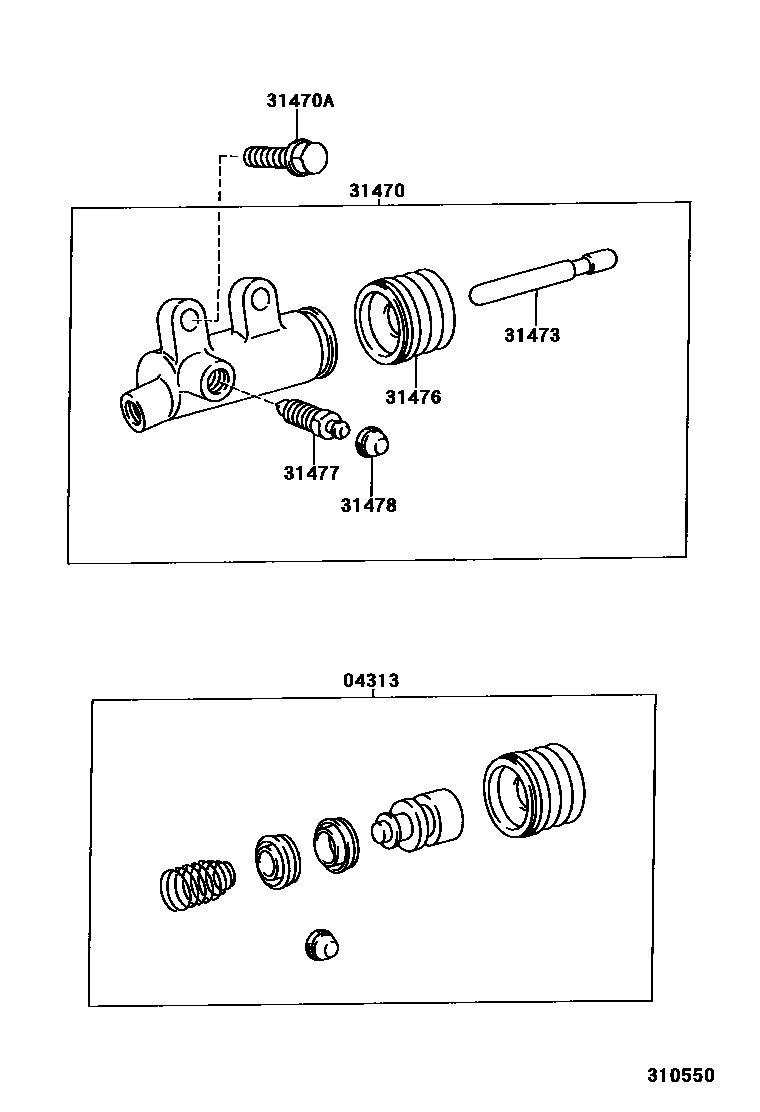

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iVCK30,40..5F199902-200208

main04313-34010iGSK30..6F200408

sub04313-34011

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35120iVCK30,40..5F200208-200408

main31470-35180iGSK30..6F200408

sub31470-35181

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2iGSK30..6F200408

*8-1.25PX25-25

main91611-G0820×2iVCK30,40..5F199902-200208

*8-1.25PX20-20

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-35050iVCK30,40..5F200208-200408

main31473-60160iGSK30..6F200408

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iVCK30,40..5F199902-200208

main31476-36010iGSK30..6F200408

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iVCK30,40..5F199902-200208

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iVCK30,40..5F199902-200208

7 parts on this diagram · 2 diagrams in section
