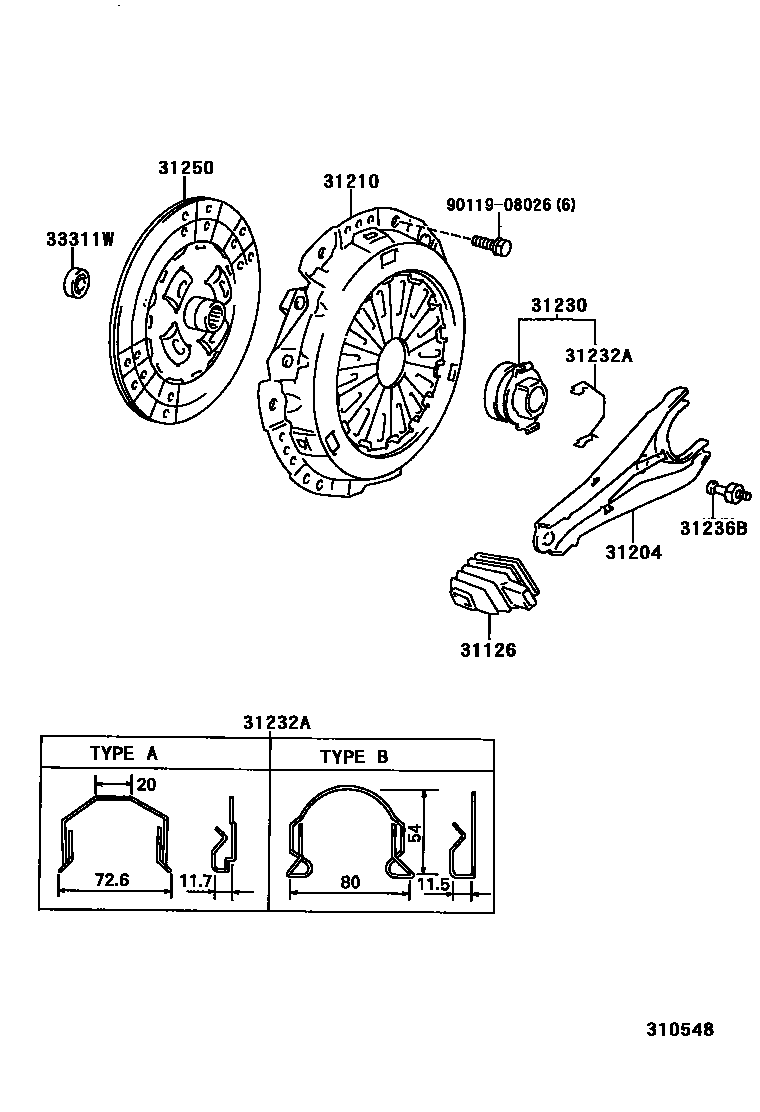

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-34010iVCK30,40..5F200208-200408

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35031iVCK30,40..5F199902-200208

main31204-35060iGSK30..6F200408

31210COVER ASSY, CLUTCH

main31210-35210iVCK30,40..5F200208-200408

main31210-60240iGSK30..6F200408-200612

31230BEARING ASSY, CLUTCH RELEASE

main31230-35110iVCK30,40..5F199902-200208

main31230-60240iGSK30..6F200408

31232ACLIP, RELEASE BEARING HUB

main31232-35020iVCK30,40..5F199902-200208

TYPE A:REFER TO ILLUSTRATION

main31232-35030iVCK30,40..5F199902-200208

TYPE B:REFER TO ILLUSTRATION

main31232-60050iGSK30..6F200408

31236BSUPPORT, RELEASE FORK

main31236-35030iVCK30,40..5F199902-200208

main31236-60060iGSK30..6F200408

31250DISC ASSY, CLUTCH

main31250-35352iVCK30,40..5F199902-200208

main31250-60370iGSK30..6F200408

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iVCK30,40..5F199902-200208

9011908026

main90119-08026

9 parts on this diagram · 2 diagrams in section
