STARTER

0001 112V 1.2KW,1.4KW,1.8KW 0002 112V 1.4KW,2.0KW 0003 112V 1.2KW,1.4KW,1.8KW 0004 112V 1.4KW,2.0KW 0005 112V 1.4KW,2.0KW 0006 112V 1.6KW 0007 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-01020i5VZFE..VCK30,40..USA199902-200408

12V 1.2KW,1.4KW

main28011-50050i2UZFE..UCK3#,4#..USA199902-200410

12V 1.4KW

main28011-50060i2UZFE..UCK3#,4#199902-200410

12V 2.0KW

main28011-50080i2UZFE..UCK3#,4#..USA200410

12V 1.4KW

main28011-50100i2UZFE..UCK3#,4#200410

12V 2.0KW

main28011-66060i1GRFE..GSK30200408

12V 2.0KW

main28011-75120i5VZFE..VCK30,40..4HC199902-200408

12V 1.8KW

28100STARTER ASSY

main28100-07010i5VZFE..VCK30,40..USA199902-200408

12V 1.4KW

main28100-0W070i5VZFE..VCK30..5F199902-200408

12V 1.2KW

main28100-31040i1GRFE..GSK30..USA200408

12V 1.6KW

main28100-31050i1GRFE..GSK30200408

12V 2.0KW

main28100-50040i2UZFE..UCK30,40..USA199902-200008

12V 1.4KW

main28100-50070i2UZFE..UCK30,40199902-200008

12V 2.0KW

main28100-50090i2UZFE..UCK3#,4#..USA200008-200408

12V 1.4KW

main28100-50100i2UZFE..UCK3#,4#200008-200402

12V 2.0KW

main28100-50101i2UZFE..UCK3#,4#200403-200408

12V 2.0KW

main28100-62030i5VZFE..VCK30,40..4HC199902-200408

12V 1.8KW

28110HOUSING ASSY, STARTER DRIVE

main28110-07020i5VZFE..VCK30,40..5F;5VZFE..VCK30,40..4HC..USA199902-200208

12V 1.2KW,1.4KW

main28110-31040i1GRFE..GSK30..USA200408

12V 1.6KW

main28110-50040i2UZFE..UCK30,40..USA199902-200208

12V 1.4KW

main28110-50070i2UZFE..UCK30,40199902-200208

12V 2.0KW

main28110-62030i5VZFE..VCK30,40..4HC199902-200208

12V 1.8KW

28120YOKE ASSY, STARTER

main28120-01030i5VZFE..VCK30,40..5F;5VZFE..VCK30,40..4HC..USA199902-200408

12V 1.4KW

main28120-0W030i5VZFE..VCK30..5F199902-200408

12V 1.2KW

main28120-28040i1GRFE..GSK30..USA200408

12V 1.6KW

main28120-50040i2UZFE..UCK30,40..USA199902-200408

12V 1.4KW

main28120-50070i2UZFE..UCK30,40199902-200408

12V 2.0KW

main28120-54380i1GRFE..GSK30200408

12V 2.0KW

main28120-75110i5VZFE..VCK30,40..4HC199902-200408

12V 1.8KW

28120ARING, O(FOR STARTER YOKE)

main90068-14001i5VZFE..VCK30..5F..USA199902-200208

12V 1.2KW

main90099-14064i2UZFE,5VZFE..UCK30,40,VCK30,40199902-200208

12V 1.4KW,1.8KW,2.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-07010i5VZFE..VCK30,40..5F;5VZFE..VCK30,40..4HC..USA199902-200208

12V 1.4KW

main28130-0W020i5VZFE..VCK30..5F..USA199902-200208

12V 1.2KW

main28130-31040i1GRFE..GSK30..USA200408

12V 1.6KW

main28130-50040i2UZFE..UCK30,40..USA199902-200208

12V 1.4KW

main28130-50070i2UZFE..UCK30,40199902-200208

12V 2.0KW

main28130-62030i5VZFE..VCK30,40..4HC199902-200208

12V 1.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-08010i5VZFE..VCK30,40..5F;5VZFE..VCK30,40..4HC..USA199902-200408

12V 1.4KW

main28140-0W020i5VZFE..VCK30..5F199902-200408

12V 1.2KW

main28140-54380i2UZFE..UCK30,40199902-200408

12V 2.0KW

main28140-62030i5VZFE..VCK30,40..4HC199902-200408

12V 1.8KW

main28140-62030i1GRFE..GSK30200408

12V 2.0KW

main28140-76070i2UZFE..UCK3#,4#..USA199902-200408

12V 1.4KW

28143SPRING, STARTER BRUSH

main28143-54380i2UZFE,5VZFE..UCK30,40,VCK30,40..4HC199902-200208

12V 1.8KW,2.0KW

main28143-76060i5VZFE..VCK30..5F..USA199902-200208

12V 1.2KW

main90099-17112i5VZFE..VCK30,40..5F;2UZFE,5VZFE..UCK30,40,VCK30,40..4HC..USA199902-200208

12V 1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-07020i5VZFE..VCK30,40..USA199902-200408

12V 1.2KW,1.4KW

main28150-31051i1GRFE..GSK30200408

12V 2.0KW

main28150-50041i2UZFE..UCK30,40..USA199902-200008

12V 1.4KW

main28150-50071i2UZFE..UCK30,40199902-200008

12V 2.0KW

main28150-50080i2UZFE..UCK3#,4#..USA200008-200410

12V 1.4KW

main28150-50090i2UZFE..UCK3#,4#..USA200410

12V 1.4KW

main28150-50100i2UZFE..UCK3#,4#200008-200410

12V 2.0KW

main28150-50110i2UZFE..UCK3#,4#200410

12V 2.0KW

main28150-62030i5VZFE..VCK30,40..4HC199902-200408

12V 1.8KW

28159BCOVER, MAGNET SWITCH

main28159-07010i5VZFE..VCK30,40..5F;5VZFE..VCK30,40..4HC..USA199902-200208

12V 1.2KW,1.4KW

main28159-50080i2UZFE..UCK30,40200008-200208

12V 1.4KW,2.0KW

main28159-54380i2UZFE,5VZFE..UCK30,40,VCK30,40..4HC199902-200208

12V 1.8KW,2.0KW

main28159-55050i2UZFE..UCK30,40..USA199902-200008

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-01020i5VZFE..VCK30,40..USA199902-200408

12V 1.4KW

main28160-0W020i5VZFE..VCK30..5F199902-200408

12V 1.2KW

main28160-21060i1GRFE..GSK30..USA200408

12V 1.6KW

main28160-74070i2UZFE..UCK3#,4#..USA199902-200408

12V 1.4KW

main28160-75110i5VZFE..VCK30,40..4HC199902-200208

12V 1.8KW

main28160-75120i1GRFE,2UZFE..GSK30,UCK3#,4#199902-200408

12V 2.0KW

28160ABEARING, STARTER ARMATURE

main90068-10003i5VZFE..VCK30,40..5F;5VZFE..VCK30,40..4HC..USA199902-200208

12V 1.2KW,1.4KW

main90099-10196i2UZFE..UCK30,40..USA199902-200208

12V 1.4KW

main90099-10208i2UZFE,5VZFE..UCK30,40,VCK30,40..4HC199902-200208

12V 1.8KW,2.0KW

28160BBEARING, STARTER ARMATURE, NO.2

main90068-10004i5VZFE..VCK30,40..5F;5VZFE..VCK30,40..4HC..USA199902-200208

12V 1.2KW,1.4KW

main90099-10197i2UZFE,5VZFE..UCK30,40,VCK30,40..4HC199902-200208

12V 1.4KW,1.8KW,2.0KW

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-01020i5VZFE..VCK30..5F..USA199902-200208

12V 1.2KW

main28165-76070i2UZFE,5VZFE..UCK30,40,VCK30,40199902-200208

12V 1.4KW,1.8KW,2.0KW

main28165-76070i2UZFE..UCK3#,4#..USA200408

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-54380i5VZFE..VCK30,40..4HC199902-200208

28175AGASKET, MAGNET SWITCH COVER

main28175-50080i2UZFE..UCK30,40200008-200208

12V 1.4KW,2.0KW

main28175-54380i2UZFE,5VZFE..UCK30,40,VCK30,40..4HC199902-200208

12V 1.8KW,2.0KW

main28175-55050i5VZFE..VCK30..5F;5VZFE..VCK40..USA;5VZFE..VCK30..4HC..USA199902-200208

12V 1.2KW,1.4KW

28199APROTECTOR, DUST STARTER

main28199-50040i2UZFE..UCK30,40199902-200208

12V 1.4KW,2.0KW

main28199-50040i2UZFE..UCK3#,4#..USA200408

main28199-74110i1GRFE..GSK30..DLX200408-200609

12V 2.0KW

main28199-74110i5VZFE..VCK30,40199902-200208

12V 1.2KW,1.4KW,1.8KW

28226STARTER KIT, BATTERY TERMINAL

main28226-50052i2UZFE..UCK30,40..USA199902-200008

12V 1.4KW

main28226-50070i2UZFE..UCK30,40200008-200208

12V 1.4KW,2.0KW

main28226-54380i5VZFE..VCK30,40..4HC199902-200208

12V 1.8KW

main28226-54412i2UZFE..UCK30,40199902-200008

12V 2.0KW

main28226-64200i5VZFE..VCK30,40..5F;5VZFE..VCK30,40..4HC..USA199902-200208

12V 1.2KW,1.4KW

28226ASTARTER KIT, MOTOR TERMINAL

main28226-50080i2UZFE..UCK30,40200008-200208

12V 1.4KW,2.0KW

main28226-72010i2UZFE,5VZFE..UCK30,40,VCK30,40..4HC199902-200208

12V 1.8KW,2.0KW

main28226-74070i5VZFE..VCK30,40..5F;2UZFE,5VZFE..UCK30,40,VCK30,40..4HC..USA199902-200208

12V 1.2KW,1.4KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i2UZFE,5VZFE..UCK30,40,VCK30,40199902-200208

28229RETAINER, STARTER IDLE GEAR

main28229-01020i5VZFE..VCK30,40..5F;5VZFE..VCK30,40..4HC..USA199902-200208

12V 1.2KW,1.4KW

main28229-74070i2UZFE,5VZFE..UCK30,40,VCK30,40..4HC199902-200208

12V 1.4KW,1.8KW,2.0KW

28235PLUNGER, MAGNET SWITCH

main28235-07010i5VZFE..VCK30,40..5F;5VZFE..VCK30,40..4HC..USA199902-200208

12V 1.2KW,1.4KW

main28235-54380i2UZFE,5VZFE..UCK30,40,VCK30,40..4HC199902-200208

12V 1.8KW,2.0KW

main28235-55050i2UZFE..UCK30,40..USA199902-200008

12V 1.4KW

28254PINION, STARTER IDLE GEAR

main28254-03010i5VZFE..VCK30,40..5F;5VZFE..VCK30,40..4HC..USA199902-200208

12V 1.2KW,1.4KW

main28254-64130i2UZFE,5VZFE..UCK30,40,VCK30,40..4HC199902-200208

12V 1.8KW,2.0KW

main28254-74070i2UZFE..UCK30,40..USA199902-200208

12V 1.4KW

2817615090SCREW, STARTER

main28176-15090

9006800007

main90068-00007

9006804012

main90068-04012

9006812001

main90068-12001

9009900271

main90099-00271

9009904448

main90099-04448

9009904449

main90099-04449

9009904450

main90099-04450

9009904457

main90099-04457

9009904475

main90099-04475

9009905129

main90099-05129

9009912009

main90099-12009

9010510221

main90105-10221

9017908204

main90179-08204

90182T0011

main90182-T0011

9151261065

main91512-61065

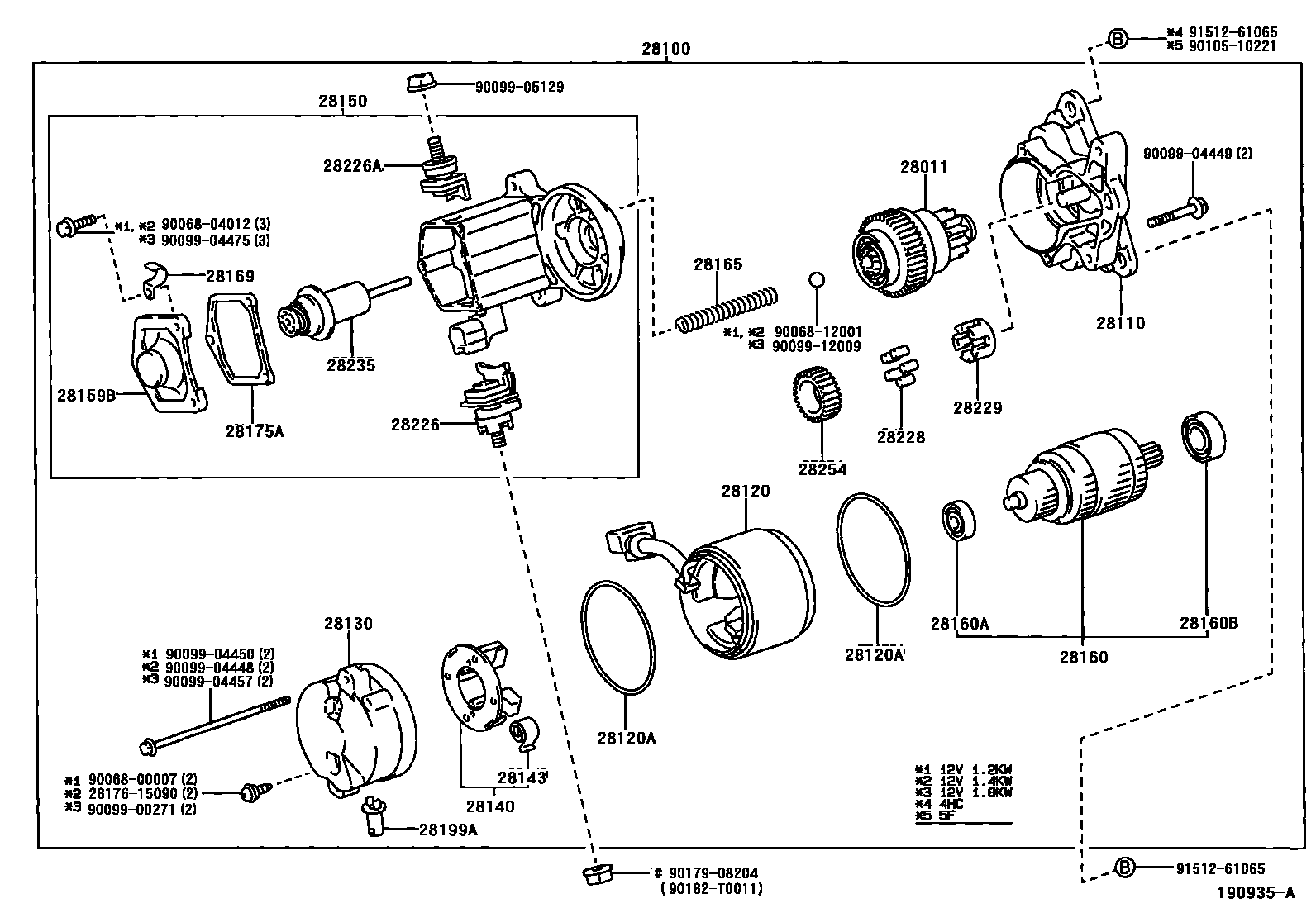

39 parts on this diagram · 7 diagrams in section
