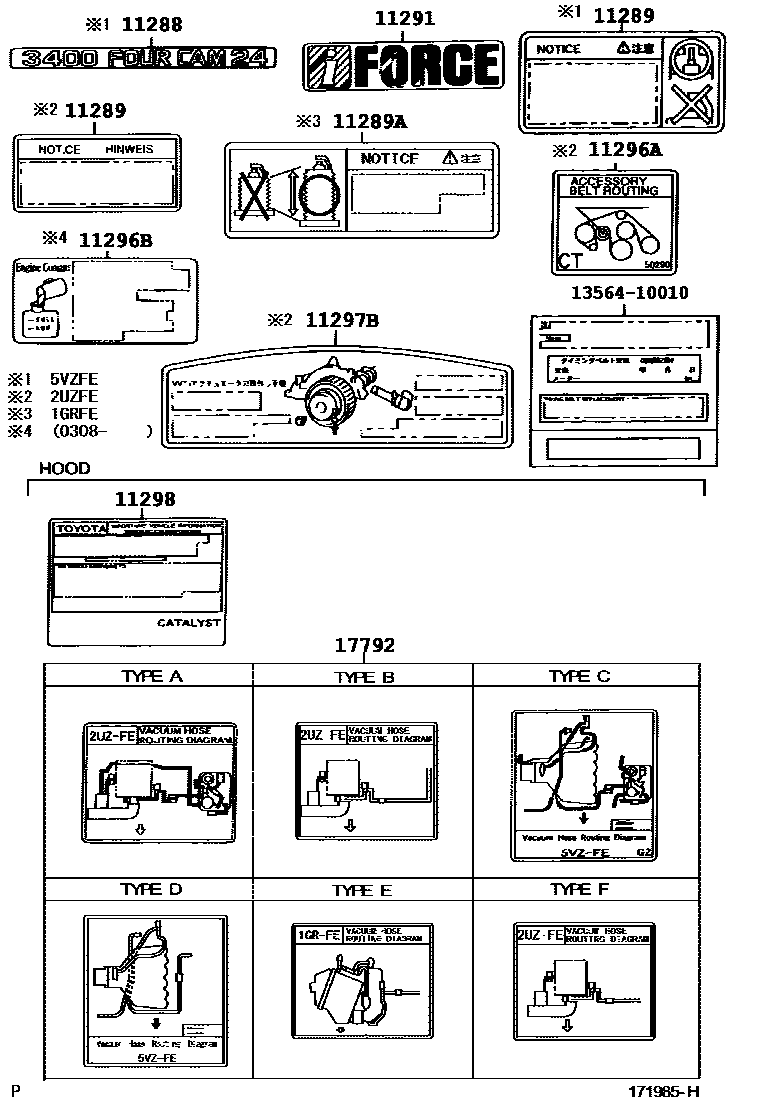

CAUTION PLATE & NAME PLATE (ENGINE)
11288PLATE, ENGINE SYSTEM
11289PLATE, SPARK PLUG CAUTION
11289ALABEL, SPARK PLUG NOTICE
11291PLATE, ENGINE NAME
11296ALABEL, ENGINE SERVICE INFORMATION
11296BLABEL, ENGINE SERVICE INFORMATION
11297BLABEL, ENGINE SERVICE INFORMATION, NO.2
11298PLATE, EMISSION CONTROL INFORMATION
W(VSC)
W(VSC)
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
W(VSC)
W(VSC)
W(VSC)
W(VSC)
W(VSC)
W(VSC)
CALIFORNIA SPEC
W(VSC)
17792PLATE, ENGINE VACUUM HOSE INFORMATION
TYPE E
TYPE E
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B
TYPE F
TYPE C:REFER ILLUST.
TYPE D:REFER ILLUST.
1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION
main13564-10010
10 parts on this diagram · 1 diagram in section
