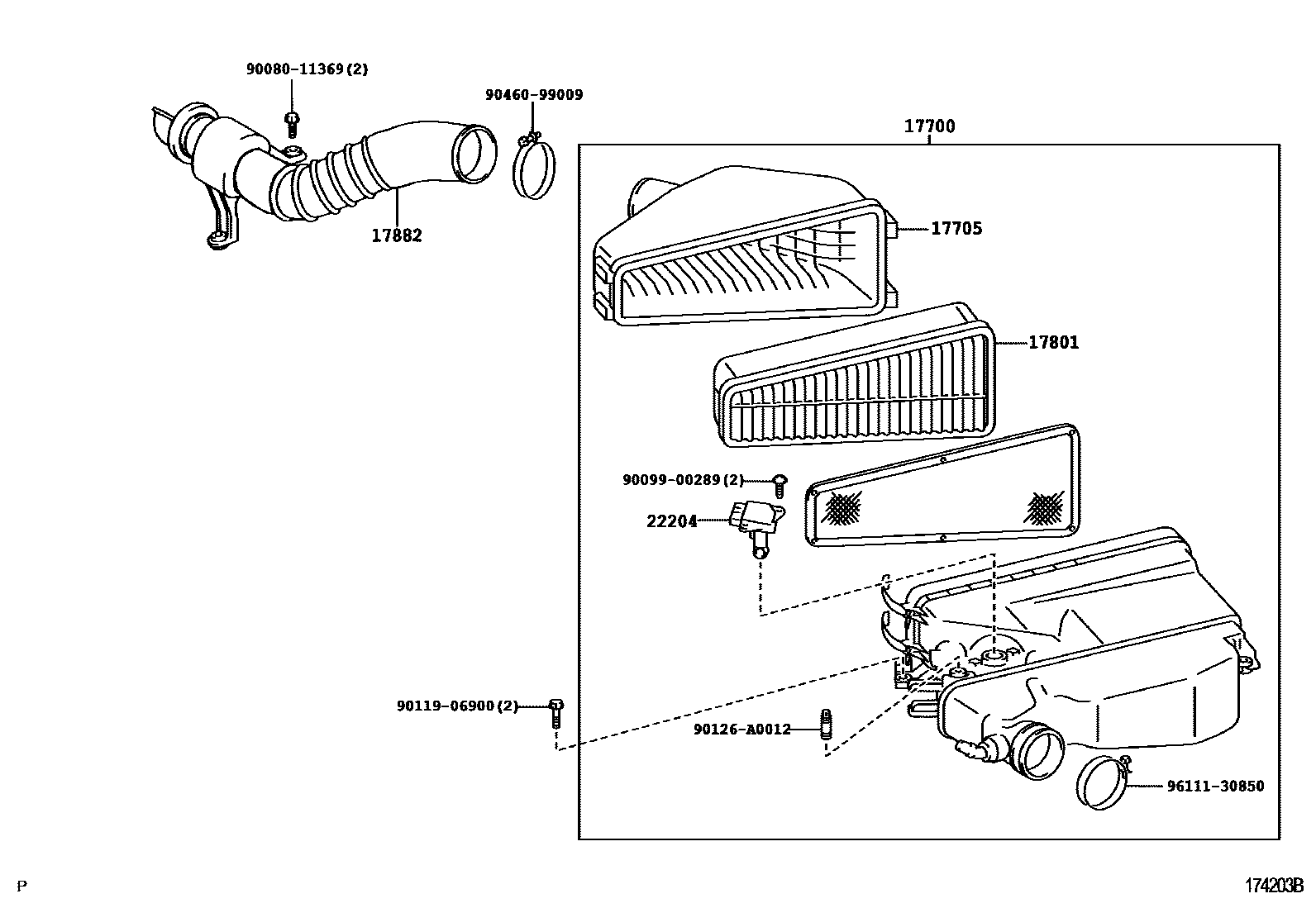

AIR CLEANER

0001 1 0002 1 0003 1

17700CLEANER ASSY, AIR

main17700-07070i5VZFE..VCK30,40199902-200208

main17700-07080i5VZFE..VCK30,40200208

main17700-0F010i2UZFE..UCK30,40199902-199911

main17700-0F011i2UZFE..UCK30,40199911-200208

main17700-0F021i2UZFE..UCK3#,4#200208-200408

main17700-0F040i2UZFE..UCK3#,4#200408

main17700-0P010i1GRFE..GSK30200408-200604

main17700-0P011i1GRFE..GSK30200605

17705CAP SUB-ASSY, AIR CLEANER

main17705-07040i5VZFE..VCK30,40199902-200208

main17705-07050i5VZFE..VCK30,40200208

main17705-0F010i2UZFE..UCK30,40199902-199911

main17705-0F011i2UZFE..UCK30,40199911-200208

main17705-0F021i2UZFE..UCK3#,4#200208-200408

main17705-0F040i2UZFE..UCK3#,4#200408

main17705-0P010i1GRFE..GSK30200408

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-07010i2UZFE..UCK30,40; 5VZFE..VCK30,40199902-200208

main17801-0P010i1GRFE..GSK30200408

17882HOSE, AIR CLEANER, NO.2

main17882-AD010i1GRFE..GSK30200408

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-07010i5VZFE..VCK30,40200208

(L)

main22204-0D030i1GRFE..GSK30200408

main22204-0F010i2UZFE..UCK3#,4#200208-200408

main22204-0F030i2UZFE..UCK3#,4#200408

main22204-21010i5VZFE..VCK30,40200208

(J)

9008011369

main90080-11369

9009900289

main90099-00289

9011906900

main90119-06900

90126A0012

main90126-A0012

9046099009

main90460-99009

9611130850

main96111-30850

11 parts on this diagram · 3 diagrams in section
