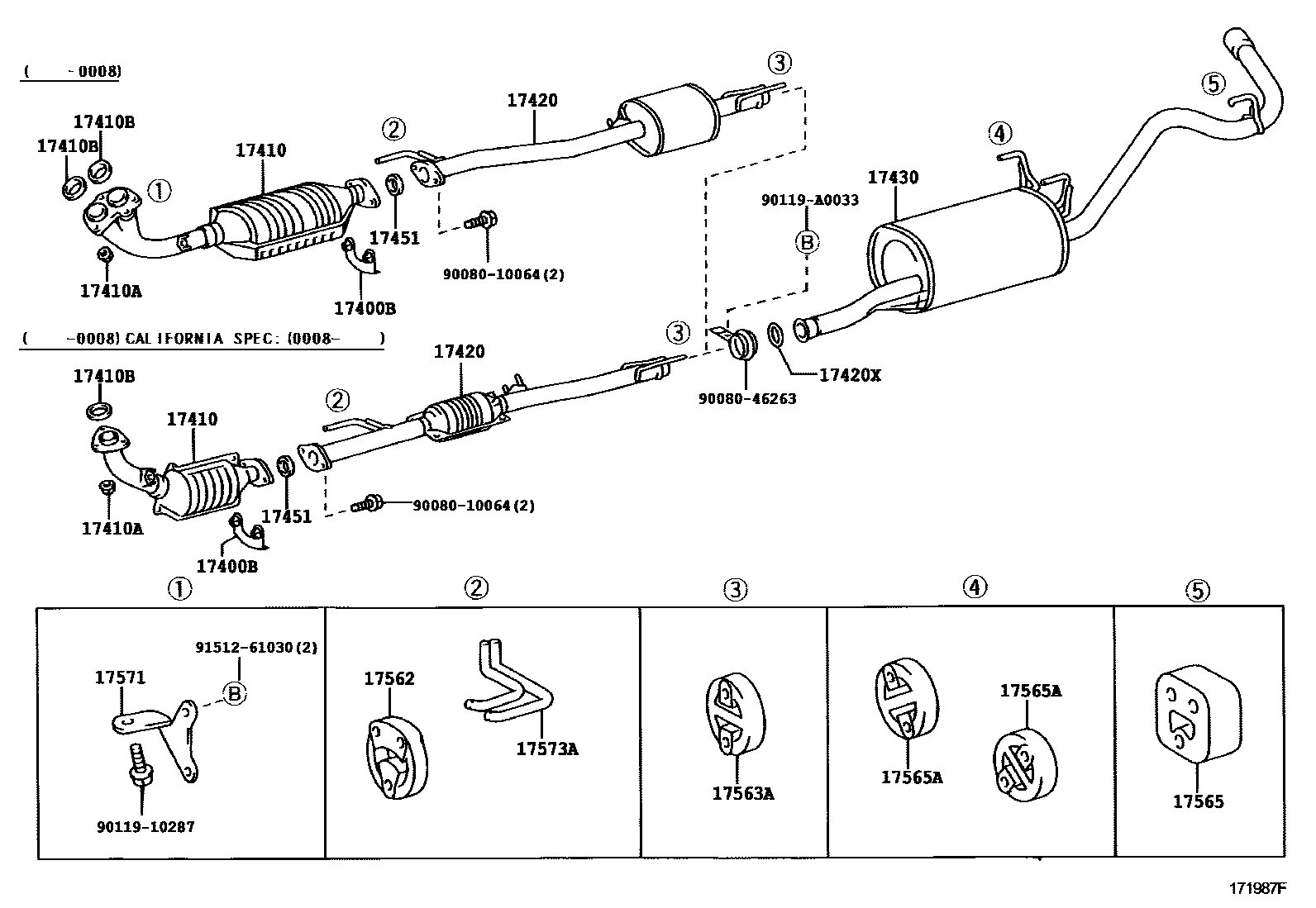

EXHAUST PIPE
17400BRETAINER, EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
(L)
(J)
CALIFORNIA SPEC
17420PIPE ASSY, EXHAUST, CENTER
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
CALIFORNIA SPEC
17451GASKET, EXHAUST PIPE
(L)
(L)
CALIFORNIA SPEC
(J)
(J)
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
9008010064
main90080-10064
9008046263
main90080-46263
9011910287
main90119-10287
90119A0033
main90119-A0033
9151261030
main91512-61030
19 parts on this diagram · 5 diagrams in section
