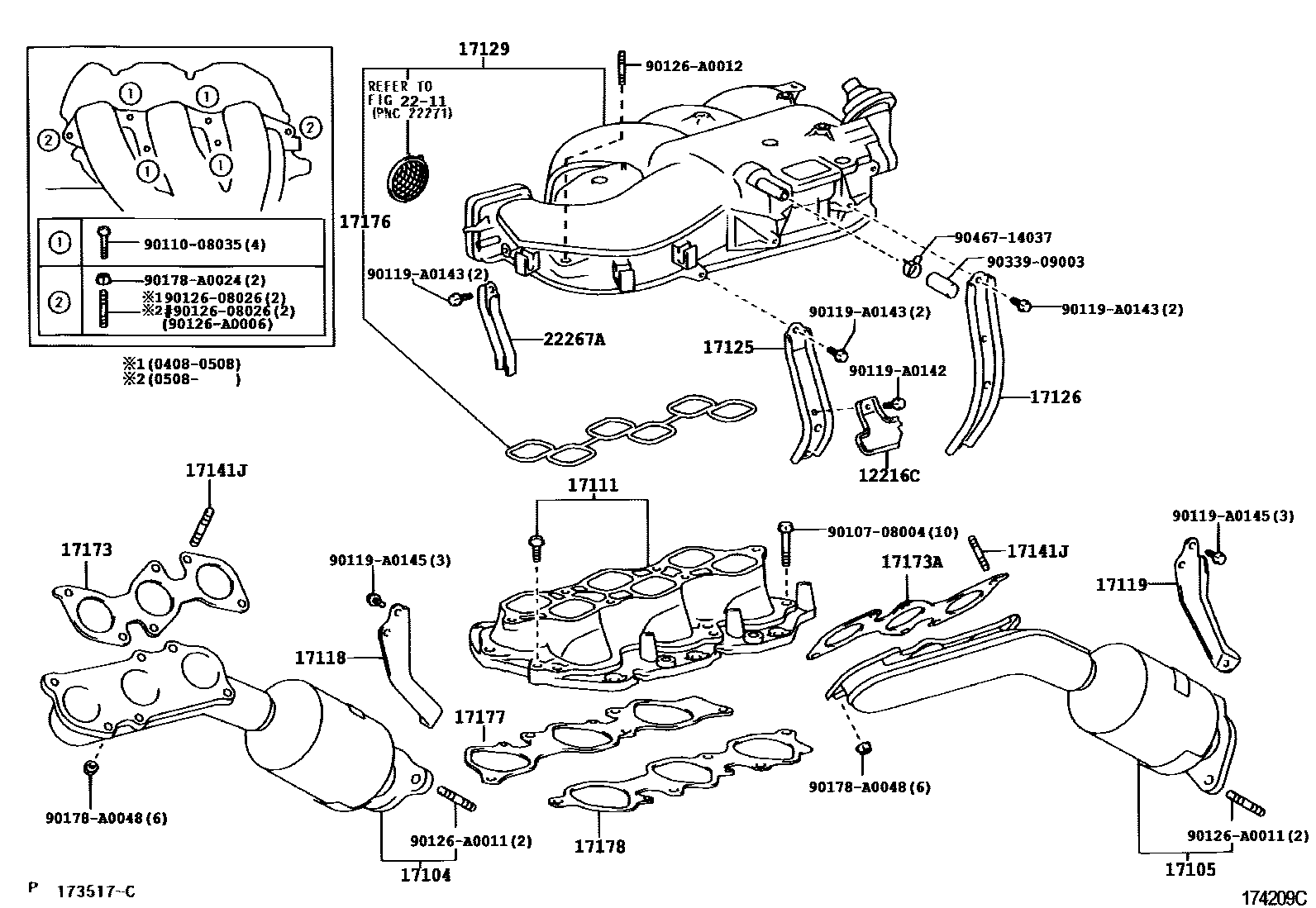

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1CALIFORNIA SPEC 0006 1

12216CPLATE, OIL BAFFLE

main12216-0P010i1GRFE..GSK30200408

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17104-50150i2UZFE..UCK30..SR5;2UZFE..UCK40..USA;2UZFE..UCK40..SR5..CND;2UZFE..UCK30..LIMD..USA199902-200009

sub17104-50151

main17104-50151i2UZFE..UCK30,40..(DLX,LIMD)..CND200008-200408

main17104-50200i2UZFE..UCK3#,4#200408

main17140-0P010i1GRFE..GSK30200408

sub17140-0P260

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17105-50150i2UZFE..UCK30..SR5;2UZFE..UCK40..USA;2UZFE..UCK40..SR5..CND;2UZFE..UCK30..LIMD..USA199902-200009

sub17105-50151

main17105-50151i2UZFE..UCK30,40..(DLX,LIMD)..CND200008-200408

main17105-50190i2UZFE..UCK3#,4#200408

main17150-0P020i1GRFE..GSK30200408

sub17150-0P260

17111MANIFOLD, INTAKE

main17101-0P010i1GRFE..GSK30200508

(L)

sub17101-0P011

main17101-31010i1GRFE..GSK30200408

(J)

sub17101-31011

main17101-50020i2UZFE..UCK3#,4#199902-200408

sub17101-50040

main17101-62020i5VZFE..VCK30,40199902-200408

main17120-50010i2UZFE..UCK3#,4#200408-200412

sub17120-50011

main17120-50011i2UZFE..UCK3#,4#200412-200607

sub17120-50020

sub90447-08174

main17120-50020i2UZFE..UCK3#,4#200607

17118STAY, MANIFOLD

main17118-0P010i1GRFE..GSK30200408

17119STAY, MANIFOLD, NO.2

main17119-0P020i1GRFE..GSK30200408

17125STAY, SURGE TANK, NO.1

main17125-0P010i1GRFE..GSK30200408

main17125-62041i5VZFE..VCK30,40..5F199902-200408

main17125-62060i5VZFE..VCK30,40..4HC199902-200208

17126STAY, SURGE TANK, NO.2

main17126-0P010i1GRFE..GSK30200408

17129TANK, INTAKE AIR SURGE

main17109-0P010i1GRFE..GSK30200408-200503

sub17109-0P011

main17109-0P011i1GRFE..GSK30200504

main17109-62080i5VZFE..VCK30,40199902-200108

main17109-62090i5VZFE..VCK30,40200108-200308

main17109-62100i5VZFE..VCK30,40200308-200408

sub17109-62090

sub90339-03002

17141MANIFOLD, EXHAUST

main17141-62080i5VZFE..VCK30,40199902-200008

main17141-62100i5VZFE..VCK30,40..USA199902-200008

CALIFORNIA SPEC

sub17141-62110

main17141-62110i5VZFE..VCK30,40200008-200408

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90116-06028i5VZFE..VCK30,40199902-200008

main90126-06029i2UZFE..UCK3#,4#200408

main90126-08052i1GRFE..GSK30200408

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0P010i1GRFE..GSK30200408

main17173-50021i2UZFE..UCK30,40199902-200408

main17173-50030i2UZFE..UCK3#,4#200408

main17173-62050i5VZFE..VCK30,40199902-200008

main17173-62060i5VZFE..VCK30,40200008-200408

main17173-62060i5VZFE..VCK30,40..USA199902-200008

CALIFORNIA SPEC

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-0P010i1GRFE..GSK30200408

main17173-50021i2UZFE..UCK3#,4#199902-200408

main17198-50010i2UZFE..UCK3#,4#200408

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-0P010i1GRFE..GSK30200408

main17176-62040i5VZFE..VCK30,40199902-200408

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-50020i2UZFE..UCK30,40199902-200408

main17171-50030i2UZFE..UCK3#,4#200408

main17177-31010i1GRFE..GSK30200408

(J)

main17177-62060i5VZFE..VCK30,40199902-200408

main17177-AD010i1GRFE..GSK30200508

(L)

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-31010i1GRFE..GSK30200408

(J)

main17178-AD010i1GRFE..GSK30200508

(L)

2211

22267ABRACKET, THROTTLE BODY

main22267-0P010i1GRFE..GSK30200408

9010708004

main90107-08004

9011008035

main90110-08035

90119A0142

main90119-A0142

90119A0143

main90119-A0143

90119A0145

main90119-A0145

9012608026

main90126-08026

90126A0006

main90126-A0006

90126A0011

main90126-A0011

90126A0012

main90126-A0012

90178A0024

main90178-A0024

90178A0048

main90178-A0048

9033909003

main90339-09003

9046714037

main90467-14037

31 parts on this diagram · 6 diagrams in section
