V-BELT

1601WATER PUMP

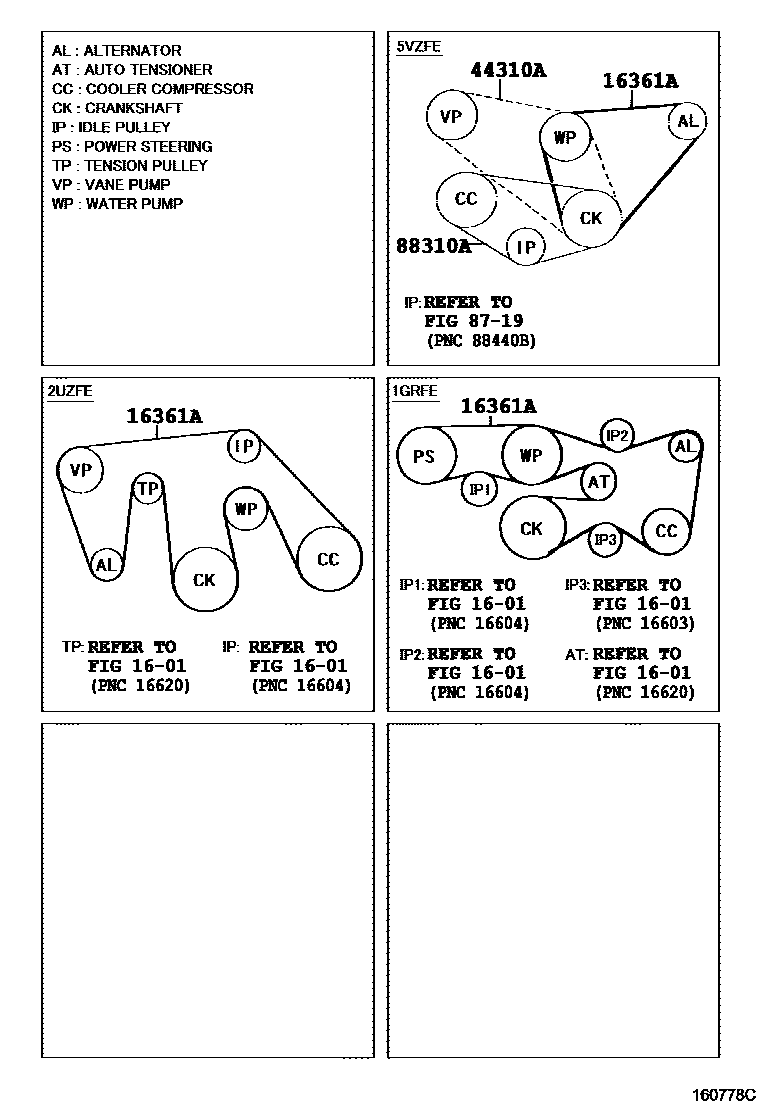

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91090i5VZFE..VCK30,40199902-200208

main90080-91172i2UZFE..UCK30,40199902-200208

W(AIR CONDITIONER)

main90080-91173i2UZFE..UCK3#,4#..DLX,SR5200208-200402

main90916-02581i2UZFE..UCK3#,4#200402-200404

W(AIR CONDITIONER)

main90916-02587i2UZFE..UCK3#,4#..DLX,SR5200402-200404

main90916-A2001i1GRFE..GSK30200408

main90916-A2003i2UZFE..UCK3#,4#200404-200408

W(AIR CONDITIONER)

main90916-A2004i2UZFE..UCK3#,4#..DLX,SR5200408

44310ABELT, V(FOR VANE PUMP)

main99364-81070iVCK30,40199902-200208

L=1070

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-30860iVCK30,40200208-200408

L=860

5 parts on this diagram · 1 diagram in section
