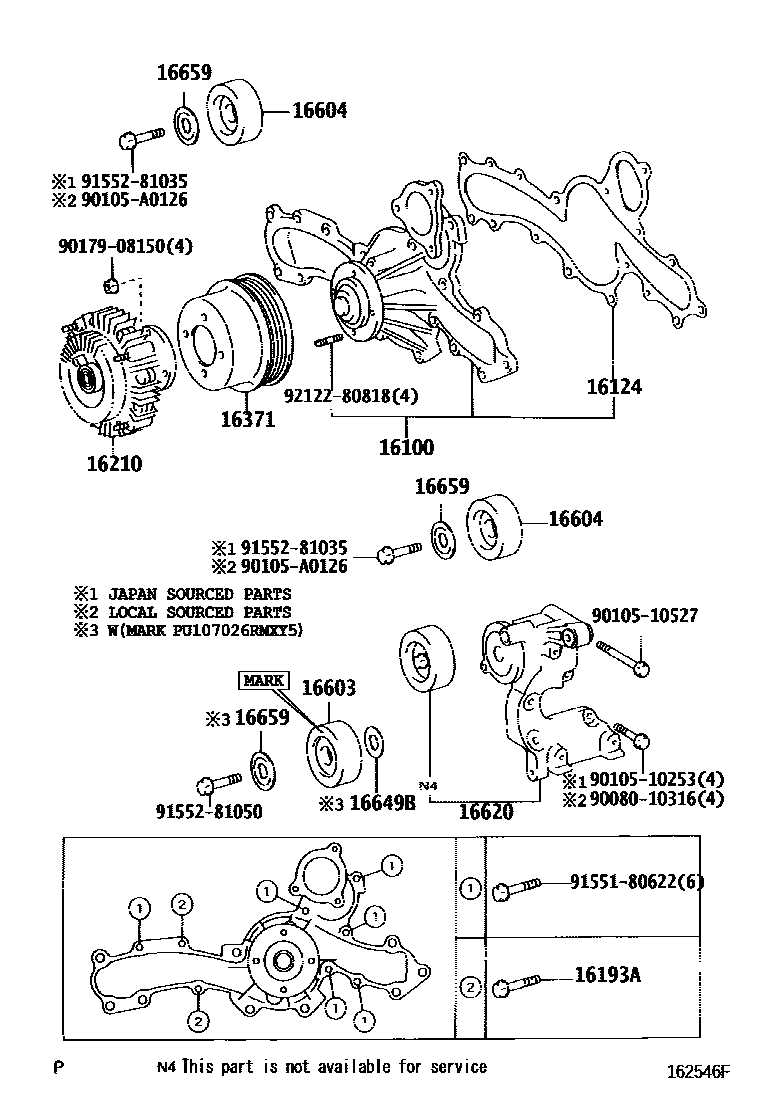

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-09200i2UZFE..UCK3#,4#200408

main16100-09470i1GRFE..GSK30200508

main16100-39405i1GRFE..GSK30200408-200508

main16100-59275i2UZFE..UCK3#,4#200208-200408

(J)

main16100-69395i5VZFE..VCK40;5VZFE..VCK30..5F199902-200205

main16100-69396i5VZFE..VCK40;5VZFE..VCK30..5F200205-200208

main16100-69397i5VZFE..VCK40;5VZFE..VCK30..5F200209-200309

main16100-69398i5VZFE..VCK40;5VZFE..VCK30..5F200309-200408

main16100-69405i5VZFE..VCK30..4HC199902-200205

main16100-69406i5VZFE..VCK30..4HC200205-200208

main16100-69407i5VZFE..VCK30..4HC200209-200309

main16100-69408i5VZFE..VCK30..4HC200309-200408

16124GASKET, WATER PUMP COVER

main16124-0P030i1GRFE..GSK30200508

(L)

main16124-31070i1GRFE..GSK30200408

(J)

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×2i1GRFE..GSK30200408

16210COUPLING ASSY, FLUID

main16210-0F010i2UZFE..UCK3#,4#200408-200411

main16210-0P010i1GRFE..GSK30200508

(L)

main16210-31020i1GRFE..GSK30200408

(J)

main16210-50080i2UZFE..UCK30,40199902-200208

main16210-50090i2UZFE..UCK3#,4#200208-200408

main16210-50100i2UZFE..UCK3#,4#200411-200508

main16210-50101i2UZFE..UCK3#,4#200508

main16210-62011i5VZFE..VCK30,40200208-200408

16371PULLEY, FAN

main16371-0F010i2UZFE..UCK3#,4#200305-200408

(L)

main16371-0P010i1GRFE..GSK30200508

(L)

main16371-31040i1GRFE..GSK30200408

(J)

main16371-50040i2UZFE..UCK3#,4#200208-200408

(J)

main16371-62010i5VZFE..VCK30,40200208-200408

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0P010i1GRFE..GSK30200508-200509

(L)

main16603-0P020i1GRFE..GSK30200509

(L)

main16603-0W010i2UZFE..UCK30,40200201-200208

LITENS

main16603-0W030i2UZFE..UCK3#,4#200511

DAYCO

main16603-31010i1GRFE..GSK30200408-200409

main16603-31030i1GRFE..GSK30200409-200511

(J)

main16603-31040i1GRFE..GSK30200511

(J)

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-0F010i2UZFE..UCK3#,4#200305-200408

(L)

main16604-0P010×2i1GRFE..GSK30200508

(L)

main16604-31010×2i1GRFE..GSK30200408

(J)

main16604-50030i2UZFE..UCK30,40199902-200208

(J)

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W036i2UZFE..UCK30,40199902-200208

main16620-0W100i2UZFE..UCK3#,4#200408

main16620-31012i1GRFE..GSK30200408

16649BPLATE, IDLER PULLEY COVER

main16649-31010i1GRFE..GSK30200409-200511

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011×3i1GRFE..GSK30200408-200511

(J)

main16659-50022i2UZFE..UCK3#,4#200208-200408

main16659-AD010×2i1GRFE..GSK30200509

(L)

9008010316

main90080-10316

9010510253

main90105-10253

9010510527

main90105-10527

90105A0126

main90105-A0126

9017908150

main90179-08150

9155180622

main91551-80622

9155281035

main91552-81035

9155281050

main91552-81050

9212280818

main92122-80818

19 parts on this diagram · 4 diagrams in section
