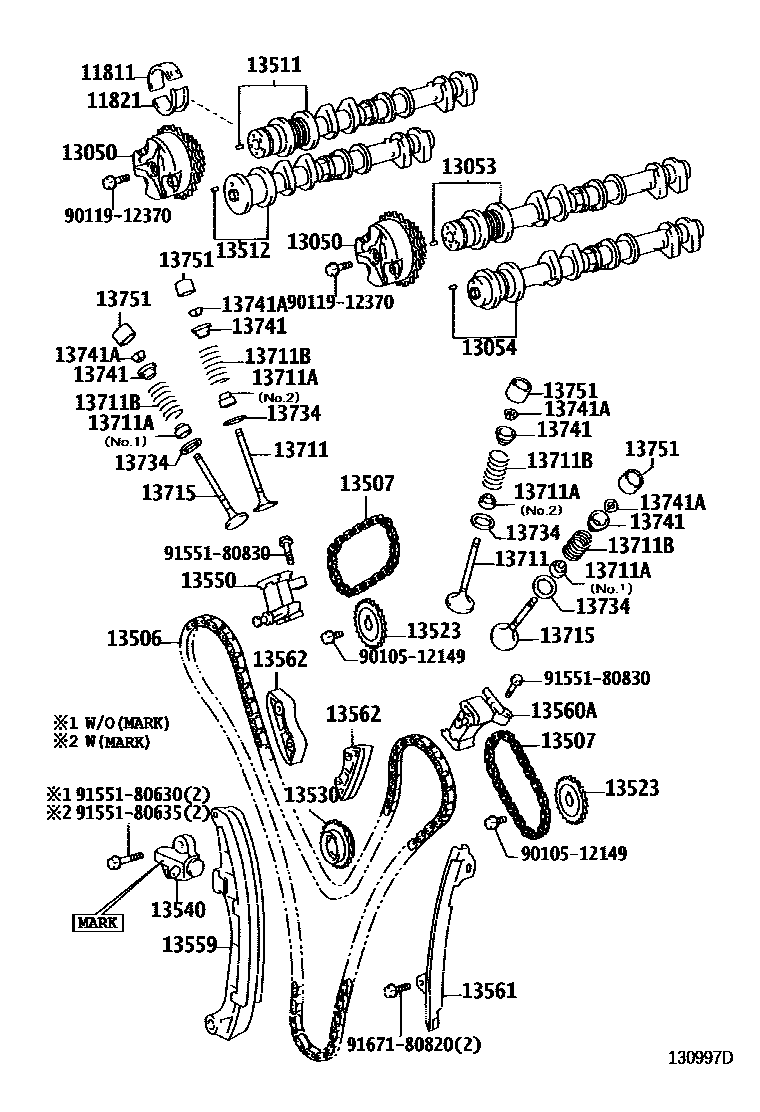

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
MARK 1
MARK 2
MARK 3
13050GEAR ASSY, CAMSHAFT TIMING
(L)
(J)
13507CHAIN SUB-ASSY, NO.2
(J)
(L)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
(J)
(L)
13530SPROCKET ASSY, IDLE
13540TENSIONER ASSY, CHAIN, NO.1
(J)
(L)
13550TENSIONER ASSY, CHAIN, NO.2
(J)
(L)
13559SLIPPER, CHAIN TENSIONER
(J)
(L)
13560ATENSIONER ASSY, CHAIN, NO.3
(J)
(L)
13561DAMPER, CHAIN VIBRATION, NO.1
(J)
(L)
13562DAMPER, CHAIN VIBRATION, NO.2
(J)
(L)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.1,(L)
NO.2,(L)
NO.1
NO.1
NO.2
NO.1,(J)
NO.2,(J)
13711BSPRING, COMPRESSION(FOR INNER)
(L)
(J)
(J)
(L)
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.06
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.70
T=5.72
T=5.74
9010512149
main90105-12149
9011912370
main90119-12370
9155180630
main91551-80630
9155180635
main91551-80635
9155180830
main91551-80830
9167180820
main91671-80820
31 parts on this diagram · 4 diagrams in section
