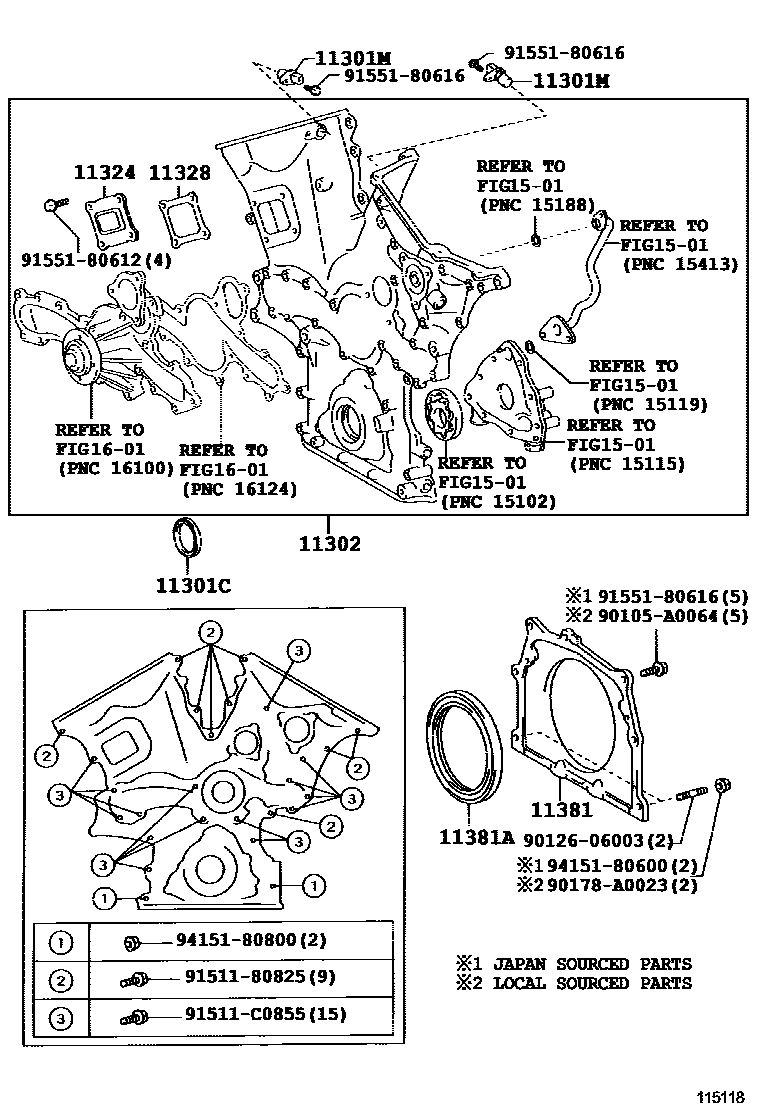

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42037i1GRFE..GSK30200408

(J)

main90311-A0005i1GRFE..GSK30200508

(L)

11301MSENSOR, CAM POSITION

main90919-05060×2i1GRFE..GSK30200408

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0P030i1GRFE..GSK30200508

(L)

main11310-31012i1GRFE..GSK30200408-200409

main11310-31013i1GRFE..GSK30200409

(J)

main11321-62900i5VZFE..VCK30,40200208-200408

11324PLATE, TIMING CHAIN COVER

main11324-0P010i1GRFE..GSK30200508

(L)

main11324-31020i1GRFE..GSK30200408

(J)

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-0P010i1GRFE..GSK30200508

(L)

main11328-31030i1GRFE..GSK30200408

(J)

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31010i1GRFE..GSK30200408

main11381-50021i2UZFE..UCK3#,4#200208-200408

(J)

main11381-62010i5VZFE..VCK30,40200208-200408

main11381-AC010i2UZFE..UCK3#,4#200305-200408

(L)

11381ASEAL, ENGINE REAR OIL

main90311-92006i5VZFE..VCK30,40199902-200208

main90311-95012i2UZFE..UCK3#,4#200208-200408

(J)

main90311-99010i1GRFE..GSK30200408

(J)

main90311-A0002i2UZFE..UCK3#,4#200408-200612

main90311-A0006i1GRFE..GSK30200508

(L)

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

90105A0064

main90105-A0064

9012606003

main90126-06003

90178A0023

main90178-A0023

9151180825

main91511-80825

91511C0855

main91511-C0855

9155180612

main91551-80612

9155180616

main91551-80616

9415180600

main94151-80600

9415180800

main94151-80800

18 parts on this diagram · 4 diagrams in section
