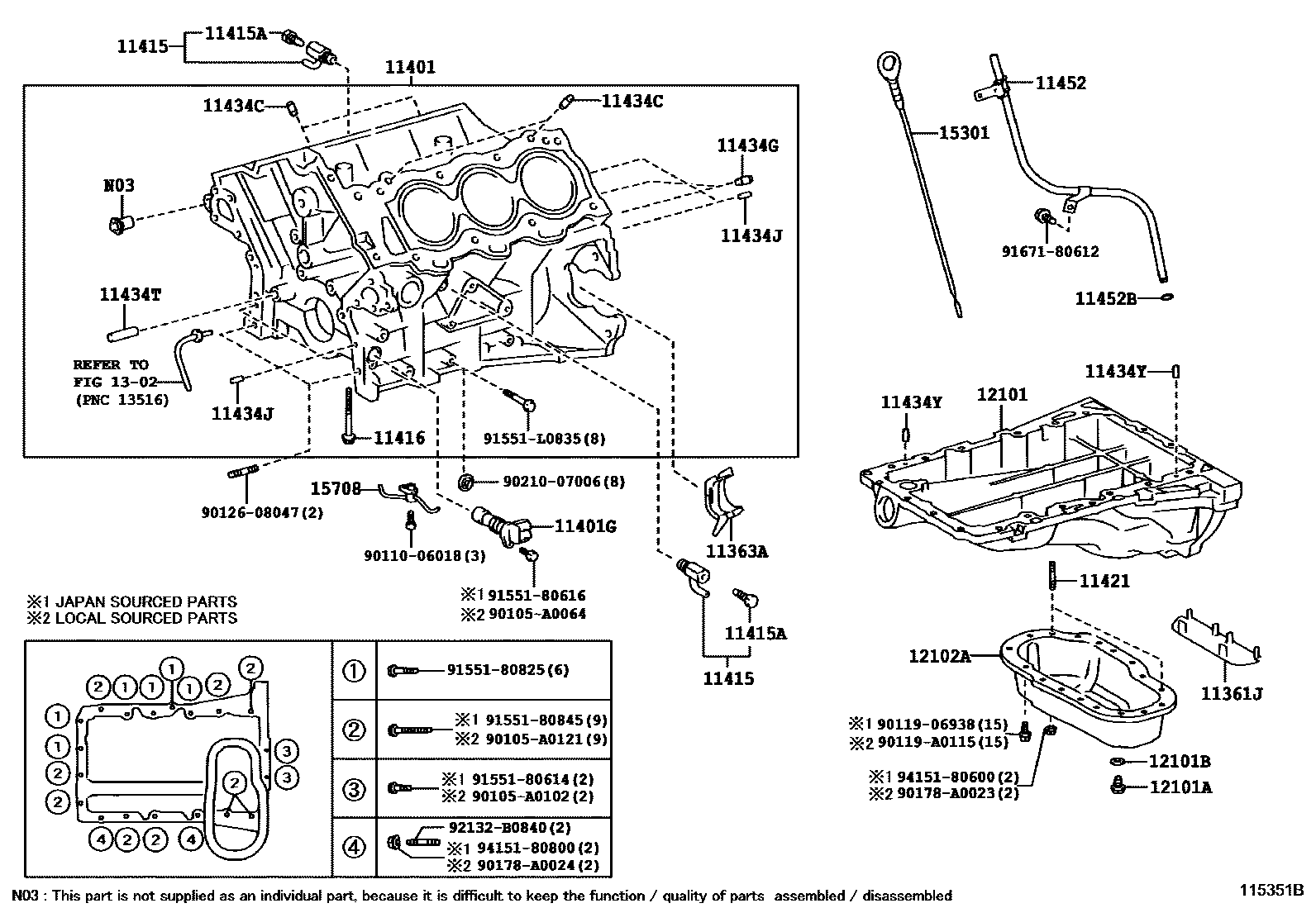

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
(L)
E/G NO.= TO 5218273
E/G NO.= FROM5218274
E/G NO.= FROM5218274
(J)
11401GSENSOR, CRANK POSITION
(J)
(L)
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11421BOLT, STUD(FOR OIL PAN)
(L)
(J)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8,(J)
L=18,OD=8,(L)
L=20,OD=16
L=20,OD=16
11434GPIN, STRAIGHT(FOR END PLATE)
(J)
(L)
11434JPIN, RING (FOR CYLINDER HEAD SET)
(J)
(L)
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
(J)
(L)
11434YPIN, STRAIGHT(FOR OIL PAN)
(J)
(L)
11452GUIDE, OIL LEVEL GAGE
(L)
(J)
(J)
(L)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
(L)
(L)
(J)
(J)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
(L)
(J)
1302CAMSHAFT & VALVE
15301GAGE SUB-ASSY, OIL LEVEL
(L)
(J)
(J)
(L)
15708NOZZLE SUB-ASSY, OIL, NO.1
90105A0064
main90105-A0064
90105A0102
main90105-A0102
90105A0121
main90105-A0121
9011006018
main90110-06018
9011906938
main90119-06938
90119A0115
main90119-A0115
9012608047
main90126-08047
90178A0023
main90178-A0023
90178A0024
main90178-A0024
9021007006
main90210-07006
9155180614
main91551-80614
9155180616
main91551-80616
9155180825
main91551-80825
9155180845
main91551-80845
91551L0835
main91551-L0835
9167180612
main91671-80612
92132B0840
main92132-B0840
9415180600
main94151-80600
9415180800
main94151-80800
41 parts on this diagram · 4 diagrams in section
