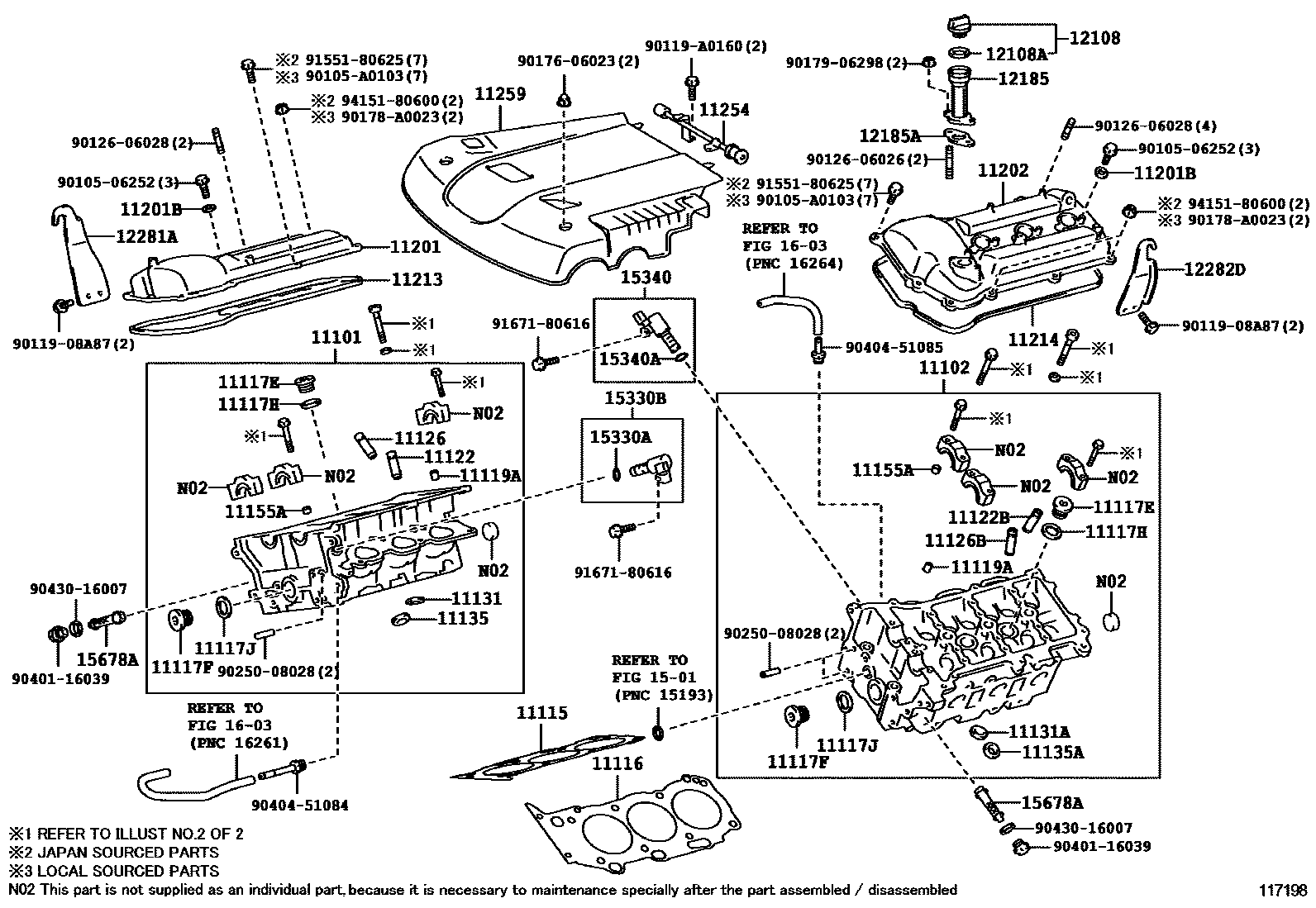

CYLINDER HEAD
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11119APIN, STRAIGHT, NO.1
L=13.8,OD=5.0
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
O/S 0.05
STD
O/S 0.05
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD,(L)
STD
STD
STD
STD,(J)
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03,(J)
O/S 0.03
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD,(L)
STD
STD
STD
STD
STD,(J)
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03,(J)
O/S 0.03
O/S 0.03
11135ASEAT, EXHAUST VALVE, NO.2
STD
O/S 0.03
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11202COVER SUB-ASSY, CYLINDER HEAD, LH
(J)
(L)
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
(J)
(L)
11214GASKET, CYLINDER HEAD COVER, NO.2
(L)
(J)
(J)
(L)
11254BRACKET, V-BANK COVER, NO.1
12185HOUSING, OIL FILLER CAP
(L)
(J)
12185AGASKET, OIL FILLER CAP HOUSING
(L)
(J)
12282DHANGER, ENGINE, NO.2
1501
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
(J)
15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH
(L)
(J)
15340VALVE ASSY, CAM TIMING OIL CONTROL, LH
(L)
(J)
15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
(J)
15678AFILTER, OIL CONTROL VALVE
1603
9010506252
main90105-06252
90105A0103
main90105-A0103
9011908A87
main90119-08A87
90119A0160
main90119-A0160
9012606026
main90126-06026
9012606028
main90126-06028
9017606023
main90176-06023
90178A0023
main90178-A0023
9017906298
main90179-06298
9025008028
main90250-08028
9040116039
main90401-16039
9040451084
main90404-51084
9040451085
main90404-51085
9043016007
main90430-16007
9155180625
main91551-80625
9167180616
main91671-80616
9415180600
main94151-80600
55 parts on this diagram · 5 diagrams in section
