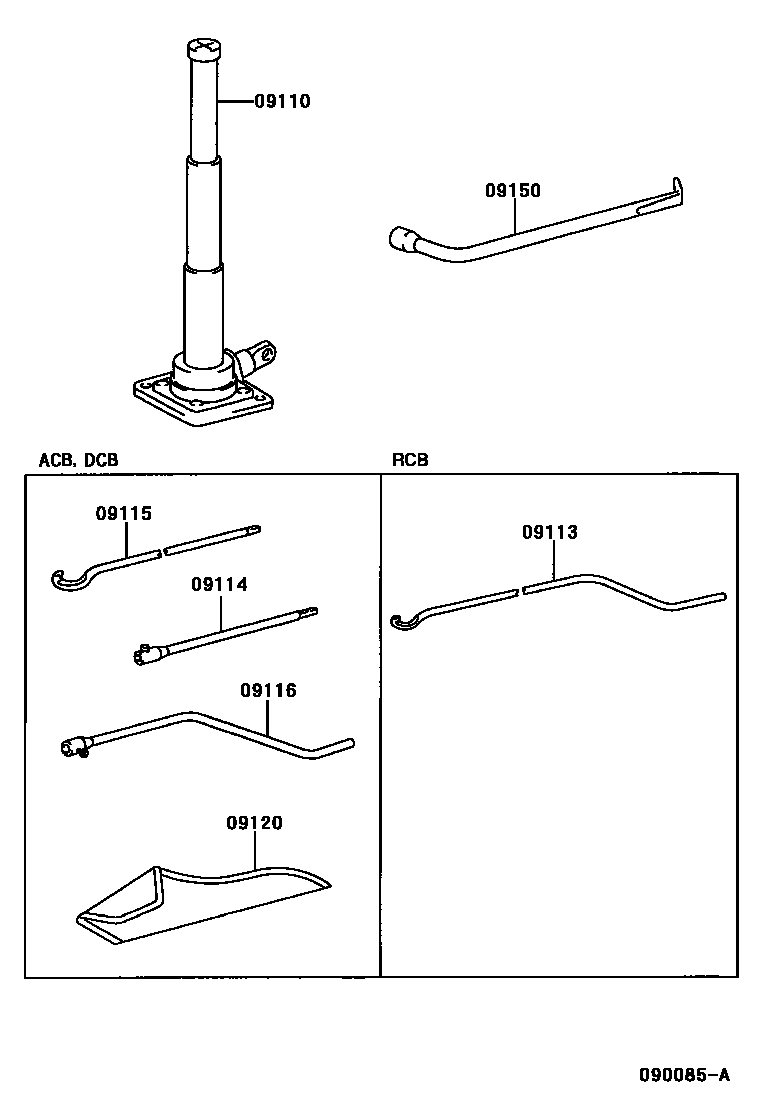

STANDARD TOOL

09110JACK ASSY

main09111-0C010iUCK30,40,VCK30,40199902-200208

main09111-0C011iUCK3#,4#,VCK30,40200307-200408

09113HANDLE, JACK

main09113-0C010iUCK40,VCK30,40..RCB199902-200208

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0C010×2iUCK30,40,VCK30,40..ACB199902-200208

09115ROD SUB-ASSY, JACK HANDLE

main09115-0C010iUCK30,40,VCK30,40..ACB199902-200208

09116LEVER, JACK HANDLE

main09116-04020iUCK30,40,VCK30,40..ACB199902-200208

09120BAG, TOOL

main09120-0C010iUCK30,40,VCK30,40..ACB199902-200208

09150WRENCH, HUB NUT BOX

main09150-AD020iUCK30,40,VCK30,40199902-200208

7 parts on this diagram · 1 diagram in section
